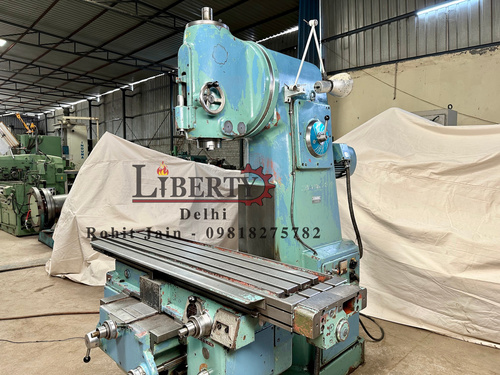

Advanced TOS FA4AV Pure Vertical Milling Machine

Send Inquiry

Request To Call Back

Advanced TOS FA4AV Pure Vertical Milling Machine

Name: Advanced TOS FA4AV Pure Vertical Milling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Advanced TOS FA4AV Pure Vertical Milling Machine Specification

Model
FA4AV

Rotation
Vertical

Product Type
Vertical Milling Machine

General Use
Precision metal cutting and shaping

Material
High-grade Cast Iron

Type
Pure Vertical

Capacity
Heavy Duty

Weight (kg)
3500

Computerized
No

Automatic
No

CNC Or Not
Not CNC

Control System
Manual

Table Size
360 x 1600 mm

Table Slide Way
Hardened and ground

Floor Space
2.4 x 2.4 m

Spindle Speed
281400 rpm (16 steps)

Power
7.5 HP (5.5 kW)

Voltage
415 V, 3 Phase

Dimension (L*W*H)
2500 x 2200 x 2100 mm

Feature
High rigidity, heavy duty, precise machining

Color
Cream & Green

Condition
New

Vertical Traverse
420 mm

Spindle Taper
ISO 50

Quill Travel
150 mm

Max Table Load
800 kg

Table Cross Travel
360 mm

Coolant System
Provided

WorkingSpeed
Variable

Lubrication System
Centralized Automatic

Table Longitudinal Travel
1250 mm

Feed Rate
102000 mm/min

Number of Feeds
32

Main Motor
5.5 kW

Advanced TOS FA4AV Pure Vertical Milling Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Advanced TOS FA4AV Pure Vertical Milling Machine

Make - TOS (Czech Republic)

Model - FA4AV

Table Size - 1600 mm x 350 mm

XYZ Travels - 1200 mm x 350 mm x 425 mm

Spindle Taper - ISO 50

Spindle Speeds - 32 rpm to 1400 rpm

Table Feed Rates - 10 mm/min to 1250 mm/min

Max. Height between Table to Spindle - 550 mm

Quill Diameter - 180 mm

Quill Travel - 90 mm

Spindle Motor - 7.5 kW

Vertical Head Rotation - +45 degree to -45 degree

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/kh8GDPRPAEA

Precision Metalworking Made Reliable

Thanks to its hardened and ground slide ways and robust construction, the FA4AV milling machine guarantees precise and repeatable results for complex metal cutting and shaping operations. Its manual control system allows operators to finely tune feed rates and spindle speeds, supporting a wide range of heavy-duty applications in industrial settings.

Heavy-Duty Performance and Durability

Built with high-grade cast iron, the FA4AV stands up to demanding production needs. Its 800 kg max table load and powerful 5.5 kW motor ensure stability and reliability even during intensive metalworking tasks. The centralized automatic lubrication and integrated coolant system maintain optimal machine performance and extend service life.

FAQs of Advanced TOS FA4AV Pure Vertical Milling Machine:

Q: How does the Advanced TOS FA4AV Milling Machine enhance precision in metalworking operations?

A: The machine is built with high-grade cast iron and features hardened and ground slide ways, minimizing vibration and deflection. Its manual controls allow precise adjustments to spindle speed and feed rates, ensuring accurate cuts and finely shaped components.

Q: What is the process for operating the FA4AV Milling Machine?

A: Operators manually set spindle speeds (281400 rpm, 16 steps) and feed rates (102000 mm/min) using the control system. The table accommodates heavy workpieces on its hardened surface, while the coolant and lubrication systems maintain ideal machining conditions throughout.

Q: Where is the FA4AV Milling Machine typically used?

A: This milling machine is commonly deployed in precision engineering workshops, metal fabrication plants, and industrial manufacturing facilities seeking reliable, high-capacity vertical milling solutions.

Q: When should I utilize the FA4AV for heavy-duty milling tasks?

A: The FA4AV is best employed when high rigidity, large table capacity, and precise manual machining are requiredparticularly for heavy or complex workpieces that exceed the capabilities of lighter models.

Q: What benefits does the centralized automatic lubrication system provide?

A: Centralized automatic lubrication reduces wear and maintains optimal machine function by consistently supplying oil to critical moving parts. This system extends component life and reduces maintenance intervals.

Q: Is the FA4AV suitable for automated or computerized operations?

A: No, the FA4AV is fully manual, not CNC or computerized. It is designed for skilled operators who prefer direct control of machining variables for demanding and intricate precision metalwork.
