Atlas Germany 650 mm Shaper Machine
Atlas Germany 650 mm Shaper Machine

Atlas Germany 650 mm Shaper Machine

Price 100000 INR/ Piece

MOQ : 1 Piece

Atlas Germany 650 mm Shaper Machine Specification

  • Motor Power
  • 3 HP
  • Production Capacity
  • High, Up to industrial standards
  • Noise Level
  • Low (<75 dB)
  • Power Rating
  • 3 HP / 2.2 kW
  • Voltage
  • 415 V AC
  • Accuracy
  • ±0.02 mm
  • Features
  • High precision, Rigid construction, Heavy Duty
  • Machine Type
  • Horizontal Shaper
  • Drive
  • Belt Driven
  • Frame Type
  • Cast Iron Base
  • Model No
  • 650 mm
  • Lubricating System
  • Centralized Automatic Lubrication
  • Operating Temperature
  • 5°C to 50°C
  • Control System
  • Manual Lever Control
  • Cooling System
  • Fitted with Coolant Pump
  • Frequency
  • 50 Hz
  • Product Type
  • Shaper Machine
  • Technology
  • Conventional Mechanical
  • Power Source
  • Electric
  • Operating Type
  • Manual
  • Power
  • 3 HP
  • Pressure
  • Standard (ambient atmospheric conditions)
  • Surface Treatment
  • Painted, Anti-Corrosive Coating
  • Dimension (L*W*H)
  • Approx. 1850 mm x 1050 mm x 1250 mm
  • Weight (kg)
  • Approx. 1280 kg
  • Color
  • Blue & White
  • Usage & Applications
  • Metal Shaping, Planing, Slotting and Keyway Cutting
  • Floor Space Required
  • 2000 mm x 1100 mm
  • Main Shaft Speed
  • Adjustable
  • Tool Head Adjustment
  • 60° Swivel
  • Gross Weight
  • 1400 kg (with packaging)
  • Maximum Shaping Length
  • 650 mm
  • Maximum Table Travel (Vertical)
  • 360 mm
  • Electricals
  • Standardized to German electrical norms
  • Accessories Included
  • Vice, Standard Tool Holders, Oil Can, User Manual
  • Table Size
  • 600 mm x 360 mm
  • Number Of Speeds
  • 6 speeds
  • Maximum Table Travel (Longitudinal)
  • 700 mm
  • Net Weight
  • 1280 kg (approx.)
  • Ram Adjustment
  • 240 mm


Atlas Germany 650 mm Shaper Machine Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Main Domestic Market
  • All India


About Atlas Germany 650 mm Shaper Machine

Make - Atlas (Germany)

Max. Stroke Length - 650 mm

Stroke Rate - 12 strokes/min to 132 strokes/min

Feed Travel Rate - 0 mm/stroke to 4 mm/stroke

Table Size - 560 mm x 440 mm

Tilting Table Size - 540 mm x 380 mm

- Rapid Travels for the Cross & Vertical Travel of Table.

- Automatic Feed Travel of the Tool Post.

- The table can be rotated as well as tilted.

- Machine is in excellent working condition.


Video of The Machine -

https://youtu.be/o_6AXGThHCw



High Precision and Robust Performance

The Atlas Germany 650 mm Shaper Machine is crafted for high-accuracy metalworking, supporting a 0.02 mm tolerance. Its rigid cast iron base and anti-corrosive coating allow for reliable heavy-duty operations. Ideal for manufacturing environments, the German-engineered shaper ensures durability thanks to its centralized lubrication and efficient coolant systems.


Versatile Industrial Applications

With adjustable speeds and a generous table size (600 x 360 mm), this shaper accommodates varied metal shaping, planing, and slotting tasks. The swivel tool head (up to 60) and extensive travel range enable intricate keyway cutting and part customization, making it a valuable asset for exporters, importers, manufacturers, and suppliers.


Ease of Operation and Safety

Operating this shaper is straightforward due to its manual lever control and standardized electricals. The low noise level (<75 dB) enhances workplace safety, while its included accessoriesvice, standard tool holders, oil can, and user manualsupport immediate, efficient use. Maintenance is simplified with automatic centralized lubrication.

FAQs of Atlas Germany 650 mm Shaper Machine:


Q: How do I operate the Atlas Germany 650 mm Shaper Machine safely?

A: Start by ensuring the machine is correctly connected to a 415 V AC, 50 Hz industrial supply. Use the manual lever control to set the required shaping parameters. Always wear appropriate safety gear and follow the guidelines in the user manual. The machines low-noise operation (<75 dB) and central lubrication system help maintain a safe and efficient work environment.

Q: What materials and applications is this shaper machine suitable for?

A: This shaper is suitable for various metals, including steel, aluminum, and cast iron. Typical uses include metal shaping, planing, slotting, and keyway cutting. Its precision and versatility make it ideal for production shops and tool rooms across industries.

Q: When should I use the swivel tool head feature?

A: The 60 swivel tool head is especially useful when you need to create angled surfaces, slots, or intricate keyways. Adjust the tool head for specialized operations that require non-parallel cuts or customized profiles in your workpieces.

Q: Where should I install the machine for optimal performance?

A: Install the machine on a stable, level floor with minimum floor space of 2000 mm x 1100 mm. The working environment should maintain a temperature between 5C and 50C as specified, ensuring both operator comfort and optimum machine performance.

Q: What is the process for adjusting machine speed and operation?

A: The shaper machine features 6 adjustable speed settings, controlled manually via the lever system. Select the desired speed based on your material and the nature of the job. Refer to the user manual for recommended speed settings to achieve optimal surface finish and tool life.

Q: What are the main benefits of using this shaper machine in production?

A: The key benefits include high precision (0.02 mm), robust construction for heavy-duty use, automatic lubrication, low operating noise, and compliance with German safety standards. These features support higher productivity and long-term cost savings for industrial metalworking applications.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Miscellaneous Machines Category

Stanko 750 mm Stroke Heavy Duty Shaper Machine

Stanko 750 mm Stroke Heavy Duty Shaper Machine

Price 50000 INR / Piece

Minimum Order Quantity : 1 Piece

Noise Level : <80 dB

Product Type : Other, Heavy Duty Shaper Machine

Usage & Applications : Metal shaping, Slotting, Keyway cutting, Surface finishing

Motor Power : 7.5 HP

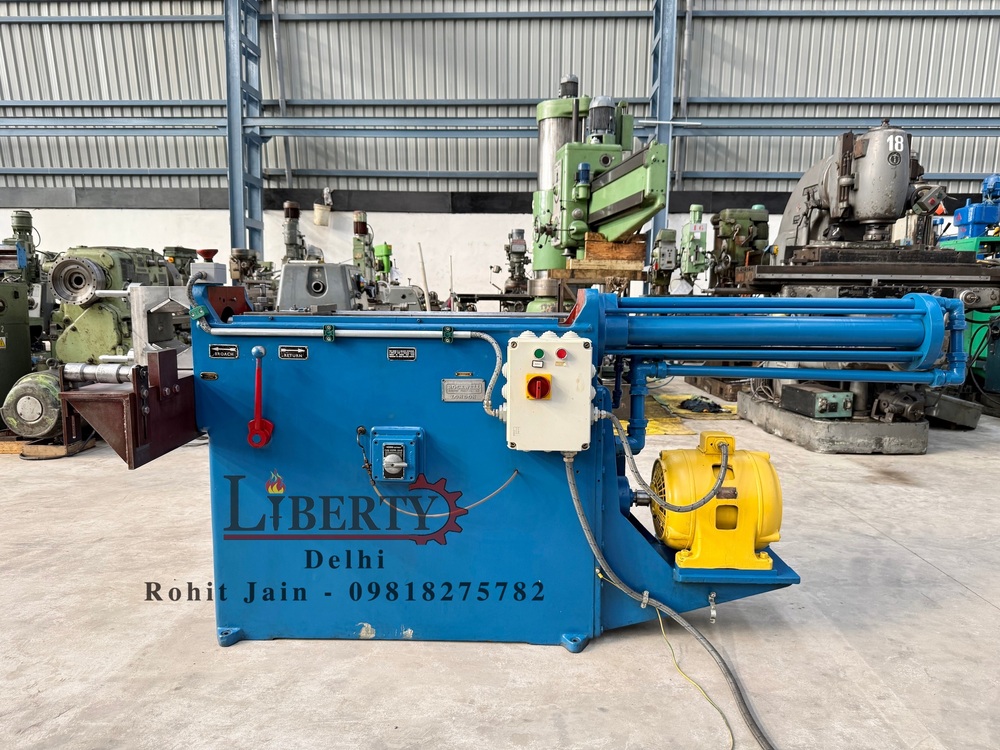

Coventry Gauge England Horizontal Broaching Machine
