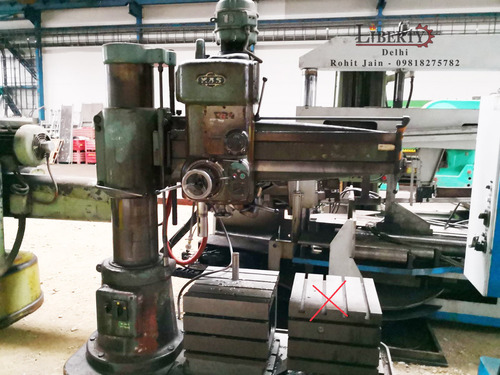

Caser 76 mm Radial Drilling Machine

Price 6900 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Caser 76 mm Radial Drilling Machine Specification

Machine Type
Radial Drilling Machine

Features
Drilling with radial adjustment

Cutting Area
Radial Movement

Condition
Used

Diameter
76 mm

Product Type
Drilling Machine

Material
Metal

Computerized
No

Automatic Grade
Manual

CNC Or Not
Not CNC

Control System
Mechanical

Power Source
Electric

Capacity
76 mm

Color
Grey

Usage & Applications
Industrial Drilling

About Caser 76 mm Radial Drilling Machine

Make - Caser (Italy)

Model - F60

Drilling Capacity (in Steel) - 76 mm

Spindle Diameter - 90 mm

Arm Length - 1700 mm

Spindle Speeds - 29 rpm to 1700 rpm

Spindle Taper - MT 5

Max. Spindle Feed Travel - 440 mm

Spindle Feed Travel Rates - 0.075 mm/rev to 1.00 mm/rev

Vertical Travel of the Arm - 770 mm

Table Size - 1000 mm x 750 mm

Clamping Type - Hydraulic

- Machine is in excellent working condition.

Versatile Industrial Drilling

The Caser 76 mm Radial Drilling Machine offers precision drilling with a unique radial arm adjustment, allowing operators to reach hard-to-access areas on large workpieces. Its manual mechanism ensures full control over each drilling task, providing flexibility for industrial applications and various metal types. Suitable for workshops, factories, and assembly lines, this machine supports efficient operations and reliable outcomes in heavy-duty environments.

Robust Construction and Reliable Power

Built from high-grade metal and powered by an electric source, the Caser Radial Drilling Machine delivers consistent performance and durability. Its mechanical controls are engineered to withstand industrial use and require minimal maintenance. The 76 mm drilling capacity offers versatility, making it ideal for precise, large-diameter holes in manufacturing and fabrication projects.

FAQs of Caser 76 mm Radial Drilling Machine:

Q: How does the Caser 76 mm Radial Drilling Machine operate?

A: This machine operates with a manual, mechanical control system, allowing users to adjust the radial arm for drilling at different positions. The electric power source drives the drilling process, ensuring efficiency and consistency without the need for computerization.

Q: What are the advantages of radial adjustment in this drilling machine?

A: Radial adjustment enables the drill head to be moved over various areas of a large or irregular workpiece, facilitating drilling at multiple points without repositioning the material. This enhances productivity and precision in industrial tasks.

Q: When is it most beneficial to use a radial drilling machine like this model?

A: The Caser Radial Drilling Machine is ideal for heavy-duty industrial environments where precise, large-diameter holes are needed in metal workpieces and where access to different drilling positions is required.

Q: Where is this radial drilling machine commonly utilized?

A: It is widely used in manufacturing plants, metal fabrication workshops, and industrial assembly linesespecially those involved with large metal components requiring flexible drilling solutions.

Q: What is the process for setting up and operating the Caser 76 mm Radial Drilling Machine?

A: Set up involves securing the machine on a stable surface, connecting the electric power source, positioning the workpiece, and manually adjusting the radial arm as needed. The operator then activates the drilling mechanism using mechanical controls.

Q: What benefits does this machine offer to exporters, importers, manufacturers, and suppliers?

A: The machines robust performance, flexibility, and manual operation make it an attractive asset for those dealing with industrial equipment. Its reliability and Italian craftsmanship support businesses seeking durable, high-performance drilling solutions for international and domestic markets.
