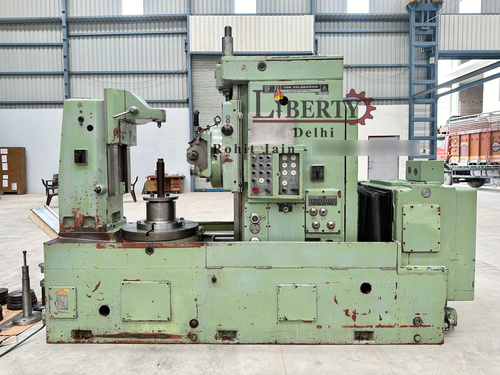

CIMA P4 Gear Hobbing Machine

Name: CIMA P4 Gear Hobbing Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

CIMA P4 Gear Hobbing Machine Specification

Voltage
380 V

Dimension (L*W*H)
2200 mm x 1300 mm x 1800 mm

Output
High production output of gears

Color
Green

Used For
Gear cutting and hobbing operations

Machine Type
Gear Hobbing Machine

Power
5.5 kW

Capacity
Workpiece diameter up to 400 mm

Weight
Approx. 3500 kg

Feature
High precision, robust construction, reliable performance

Condition
Used

Max Module
8

Spindle Speed Range
35 - 350 rpm

Lubrication System
Automatic

Coolant System
Included

Main Drive Type
Electromechanical

Max Hob Diameter
160 mm

Control Type
Manual

Table Diameter
400 mm

Number of Axis
2

Max Hob Length
180 mm

Max Gear Width
210 mm

Table Bore Diameter
75 mm

Min Module
0.5

Feed Rate
Continuously variable

CIMA P4 Gear Hobbing Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About CIMA P4 Gear Hobbing Machine

Make - Cima (Italy)

Model - P4

Max. Module - 4 Modules

Max. Gear Diameter (With Tail-Stock) - 400 mm

Table Diameter - 450 mm

Vertical Travel of Hobbing Head - 260 mm

Job Clamping Length (from Table Top) - 500 mm

Max. Hob Diameter - 110 mm

Hob Rotation Speeds - 50 rpm to 212 rpm

- Motorised Rapid Travels in Vertical & Table Travels.

- Equipped with DRO.

- Complete with Change Gears, Mandrels etc.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/VgxiE5X6Gyk

High Precision and Production Efficiency

The CIMA P4 Gear Hobbing Machine delivers exceptional precision in gear cutting, supporting a wide range of gear modules and workpiece sizes. Its robust build and reliable performance make it ideal for heavy-duty manufacturing environments requiring consistent high-output and accuracy in gear production.

Versatile Capacity for Multiple Applications

Designed to handle various gear hobbing requirements, the CIMA P4 can process workpieces up to 400 mm in diameter and 210 mm in width. This versatility makes it suitable for exporters, importers, manufacturers, and traders engaged in large-scale gear fabrication.

User-Friendly Operation and Maintenance

Equipped with manual controls and automatic lubrication, the CIMA P4 is easy to operate and maintain. Its continuously variable feed rate and included coolant system streamline the gear cutting process, contributing to reliable long-term performance with minimal downtime.

FAQs of CIMA P4 Gear Hobbing Machine:

Q: How does the CIMA P4 Gear Hobbing Machine ensure high accuracy during gear cutting operations?

A: The CIMA P4 is engineered with robust construction, precision components, and an automatic lubrication system that together minimize vibrations and wear, ensuring consistently accurate and high-quality gear cuts.

Q: What types of gears can be produced using this machine?

A: This machine is suitable for producing a wide range of spur and helical gears with modules from 0.5 to 8, workpiece diameters up to 400 mm, and widths up to 210 mm, covering various industrial gear requirements.

Q: When is the best situation to use the CIMA P4 Gear Hobbing Machine?

A: The CIMA P4 is ideal for medium to heavy-duty production environments where high output, reliability, and precision are critical, such as in automotive, machinery, and equipment manufacturing.

Q: Where is the CIMA P4 Gear Hobbing Machine typically used?

A: It is commonly used in manufacturing facilities, gear workshops, and industrial production plants by exporters, importers, manufacturers, suppliers, and traders involved in large-scale gear production.

Q: What is the gear cutting process with this machine?

A: The process involves mounting the workpiece onto the machine table, selecting the appropriate hob, and setting spindle speed and feed rate as needed. The manual controls allow the operator to fine-tune settings for optimal gear cutting, while the coolant system and automatic lubrication enhance process efficiency and machine longevity.

Q: How does the included coolant system benefit the gear cutting operations?

A: The coolant system prevents overheating, reduces tool wear, and helps in achieving smoother finishes on the gears, thereby improving overall production quality and extending tool and machine life.

Q: What maintenance advantages does this machine offer to users?

A: With features like an automatic lubrication system and sturdy construction, the CIMA P4 requires minimal manual upkeep, thus reducing downtime and extending the machines operational lifespan for efficient long-term use.
