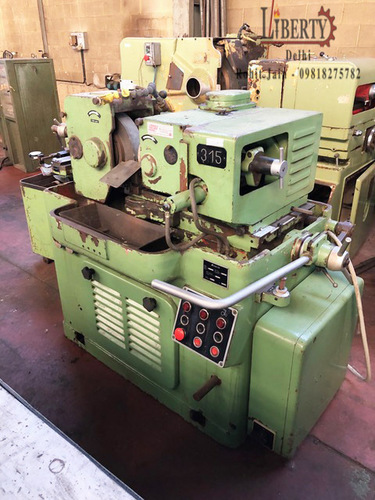

Cincinnati 2 OM Centerless Grinding Machine

Send Inquiry

Request To Call Back

Cincinnati 2 OM Centerless Grinding Machine

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Cincinnati 2 OM Centerless Grinding Machine Specification

Model
2 OM

Rotation
Right/Left Hand

Product Type
Centerless Grinding Machine

General Use
External and internal grinding operations for round or cylindrical parts

Material
Cast Iron Body, Alloy Steel Components

Type
2 OM

Capacity
25 mm to 75 mm Diameter

Weight (kg)
Approx. 2500 kg

Computerized
No

Automatic
No (Manual)

CNC Or Not
No (Conventional/Manual)

Control System
Manual mechanical controls

Table Slide Way
Hydraulic or mechanical slide

Magnetic Chuck Size
Not Applicable (Uses throughfeed or infeed work rest)

Grinding Wheel Size
355 mm (Diameter) x 127 mm (Width)

Grinding Wheel Speed
1600 RPM

Grinding Length
Up to 250 mm (Work Length)

Floor Space
2000 mm x 1500 mm approx.

Spindle Speed
2000 RPM (Grinding Wheel Spindle)

Power
7.5 HP

Voltage
415V, 3 Phase

Dimension (L*W*H)
2000 mm x 1500 mm x 1600 mm (approx.)

Feature
Accurate roundness and fine surface finish, rugged construction

Color
Machine Grey

Cincinnati 2 OM Centerless Grinding Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Cincinnati 2 OM Centerless Grinding Machine

Make - Cincinnati (USA)

Model - 2 OM

Job Grinding Capacity - 1.5 mm to 120 mm

Grinding Wheel Diameter - 500 mm

Grinding Wheel Width - 250 mm

Regulating Wheel Diameter - 300 mm

Regulating Wheel Width - 250 mm

Least Count - 2.5 Microns (0.0025 mm)

Regulating Wheel Speeds - 12 rpm to 300 rpm

Regulating Wheel Feed Angle - +8 degree to -8 degree

- Features like automatic Hydraulic Rough & Fine Cut (Feed Travel).

- Taper & Profile Dressing of Wheels possible.

- Lots of NEW spare Grinding & Regulating Wheels available.

- Accessories like Guide Plate, Work-Rest, Job Supports etc. etc.

- Machine is in excellent working condition.

Video of the Machine-

https://youtu.be/pExPKYAaLHQ

Accurate and Versatile Grinding

This machine offers exceptional roundness and surface finish for a wide range of part sizes, from 2 mm up to 75 mm in diameter. Equipped for both throughfeed and infeed operations, it supports general external and internal grinding for various cylindrical components.

Heavy-Duty Construction and Performance

Built with a cast iron body and alloy steel components, the Cincinnati 2 OM is designed to handle rigorous industrial demands. Its 7.5 HP motor, centralized automatic lubrication, and hydraulic slide system ensure durability, longevity, and consistent operation.

Manual Precision and User Control

With manual, micrometer-adjustable work rest blade and mechanical controls, operators achieve high-accuracy adjustments. The machine is not computerized (no CNC), making it suitable for skilled manual operation and fine-tuning during production or repair tasks.

FAQs of Cincinnati 2 OM Centerless Grinding Machine:

Q: How does the Cincinnati 2 OM Centerless Grinding Machine accommodate different workpiece sizes?

A: The machine can handle workpiece diameters ranging from 2 mm to 75 mm, thanks to its adjustable work rest blade and variable-speed regulating wheel. This allows operators to precisely position and secure a variety of cylindrical parts during grinding.

Q: What is the typical process for setting up this grinder for a new job?

A: Setup involves selecting the appropriate grinding and regulating wheels, manually adjusting the work rest blade for the workpiece diameter using micrometer controls, setting the wheel speeds, and configuring the hydraulic slide and coolant system as needed.

Q: When should I choose this model over a CNC-controlled grinding machine?

A: The Cincinnati 2 OM is ideal when you need manual control, frequent quick changeover, or precise adjustments for small to medium batch jobs, especially where CNC automation is not required. It is cost-effective for shops prioritizing reliability and skilled manual operation.

Q: Where is the Cincinnati 2 OM most commonly used?

A: This machine is widely used in job shops, repair facilities, and manufacturing plants that require precision grinding of round components, such as shafts, pins, tubes, and bearings. Its robust build makes it well-suited for both high-production and maintenance applications.

Q: What are the benefits of the built-in coolant and lubrication systems?

A: The integrated coolant system with a dedicated tank and pump ensures proper cooling and debris removal during grinding. Centralized automatic lubrication reduces maintenance downtime by reliably lubricating key moving parts, extending component life and improving performance.

Q: How does the manual control system enhance user operation?

A: Manual mechanical controls and micrometer adjustments allow for fine-tuning at every stage of the grinding process. Operators can make precise changes on the fly, resulting in consistently accurate grinding outcomes without dependence on computer systems.
