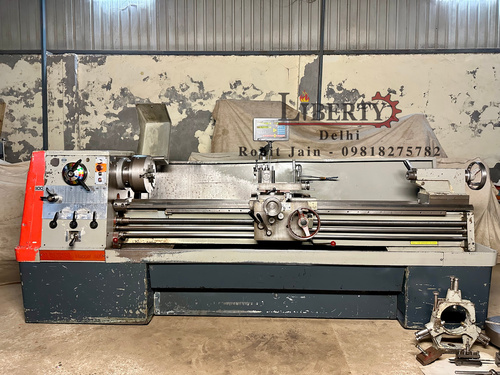

Colchester Mascot 1600 Gap Bed Lathe Machine

Name: Colchester Mascot 1600 Gap Bed Lathe Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Colchester Mascot 1600 Gap Bed Lathe Machine Specification

Product Type
Gap Bed Lathe Machine

Material
High-grade Cast Iron

Cutting Thickness
Dependent on Tool and Material

Cutting Speed
Variable, up to 900 rpm

CNC Or Not
Conventional

Automatic Grade
Semi-Automatic

Control System
Manual

Max. Swing Diameter
400 mm over bed, 600 mm in gap

Voltage
415 V, 3 Phase

Weight (kg)
Approx. 1100 kg

Dimension (L*W*H)
Approx. 2200 mm x 940 mm x 1270 mm

Capacity
Medium Duty

Feature
Gap bed design, Hardened and ground bed ways, High rigidity

Color
Industrial Grey

Headstock Type
Geared

Bed Type
Induction Hardened

Cross Slide Travel
260 mm

Distance Between Centers
1000 mm

Spindle Bore
52 mm

Tailstock Taper
MT4

Lead Screw Diameter
32 mm

Carriage Travel
900 mm

Tailstock Quill Travel
155 mm

Swing In Gap
600 mm

Number of Spindle Speeds
18

Swing Over Cross Slide
250 mm

Spindle Speed Range
36 - 900 rpm

Floor Space Required
2450 mm x 1050 mm

Chuck Size
250 mm

Back Gear
Provided

Thread Cutting Range
Whitworth: 2-112 TPI; Metric: 0.2-14 mm

Bed Width
320 mm

Motor Power
3 HP / 2.2 kW

Coolant System
Integrated

Colchester Mascot 1600 Gap Bed Lathe Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Colchester Mascot 1600 Gap Bed Lathe Machine

Make - Colchester (England)

Model - Mascot 1600

Center Height - 225 mm

Max. Length of Job - 2030 mm

Max. Job Diameter over Bed - 440 mm

Max. Job Diameter over Cross-Slide - 265 mm

Max. Job Diameter in Gap - 710 mm

Chuck Diameter - 310 mm

Spindle Speeds - 20 rpm to 1600 rpm

Bed Width - 342 mm

Spindle Bore - 78 mm

- Complete Job Steady, Spare Jaws, Centers & other accessories.

- Complete with Coolant Tank and Pump.

- Operating Manual and Electrical Drawings are available.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/ZIRswX5DiF8

Precision Engineering and Versatile Machining

This lathe machine provides gap bed design, hardened bed ways, and a spacious work area, allowing both standard and intricate turning operations. With a broad thread cutting range and an 18-speed gearbox, it adapts well to diverse industrial requirements.

Robust Construction and Reliable Performance

Featuring a bed made from high-grade cast iron and induction hardening, the Mascot 1600 ensures stability and reduced wear, extending machine life. Its high rigidity supports precise work even under continuous, high-load operation.

User-Friendly Operation and Safety

Equipped with manual controls, a powerful 3 HP motor, an integrated coolant system, and clear indicators, this lathe is accessible to skilled machinists. The semi-automatic features aid efficiency while maintaining operator oversight and safety.

FAQ's of Colchester Mascot 1600 Gap Bed Lathe Machine:

Q: How does the gap bed design of the Colchester Mascot 1600 benefit machining operations?

A: The gap bed design allows users to accommodate larger workpieces by increasing the swing in the gap to 600 mm. This flexibility makes it easier to machine oversized components that would not fit on standard lathes, expanding application possibilities.

Q: What materials and industries are most suitable for this lathe machine?

A: Constructed from high-grade cast iron, this lathe is ideal for medium-duty use in manufacturing, metalworking, repair shops, and trades that require accurate turning of steel, aluminum, and similar alloys. It serves exporters, importers, manufacturers, and traders.

Q: When should I use the different spindle speed settings on the Mascot 1600?

A: Utilize the 18 spindle speed settings (36-900 rpm) depending on the workpiece material, cutting tool, and desired finish. Lower speeds suit tougher materials or larger diameters, while higher speeds are appropriate for fine finishing or smaller diameters.

Q: Where should the Colchester Mascot 1600 be installed for optimal performance?

A: For best results, install the lathe in a well-ventilated, level area that accommodates its floor space requirement of 2450 mm x 1050 mm. Ensure access to a stable 415 V, 3-phase power supply and sufficient lighting for safe operation.

Q: What is the process for changing threads and leads on this lathe?

A: Changing threads involves selecting the appropriate gear settings and using the lead screw, which offers both Whitworth (2-112 TPI) and metric (0.2-14 mm) ranges. Refer to the provided gear chart and adjust the gearbox as directed in the user manual.

Q: How is the integrated coolant system used during operations?

A: Activate the integrated coolant system when performing extended cutting or high-speed turning. The system helps maintain tool temperature, reduces workpiece warping, and prolongs tool life by delivering coolant directly to the cutting area.

Q: What are the main benefits of the induction-hardened bed and high rigidity in this lathe?

A: The induction-hardened bed and robust frame minimize wear and maintain precision over prolonged use. High rigidity ensures consistent accuracy, especially during heavy-duty cutting or repetitive production runs.
