Eyushiuak Taiwan 355 x 710 Automatic Surface Grinder

Name: Eyushiuak Taiwan 355 x 710 Automatic Surface Grinder
Brand: Liberty Metal & Machines Private Limited
Price: 77500 INR
Availability: InStock

Price 77500 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Eyushiuak Taiwan 355 x 710 Automatic Surface Grinder Specification

Rotation
Left/Right

Model
355 x 710

Product Type
Automatic Surface Grinder

General Use
Precision Surface Grinding

Material
Heavy Duty Cast Iron

Type
Automatic

Capacity
Based on Job Size

Weight (kg)
2100 kg

Computerized
No

Automatic
Yes

CNC Or Not
Not CNC

Control System
Automatic

Table Size
355 x 710 mm

Table Slide Way
Double V-Type with Turcite

Magnetic Chuck Size
355 x 710 mm

Grinding Wheel Size
355 x 38 x 127 mm

Grinding Wheel Speed
1450 rpm

Grinding Length
710 mm

Floor Space
2100 x 1740 mm

Fuel Tank Capacity
60 Liters

Spindle Speed
1450 rpm

Power
5 HP

Voltage
415V, 3-Phase

Dimension (L*W*H)
2100 x 1740 x 1900 mm

Feature
Auto Lubrication, Magnetic Chuck

Color
White / Grey

Longitudinal Table Speed
3 - 25 m/min

Spindle Motor
5 HP

Vertical Feed Graduation
0.005 mm

Coolant Pump Motor
0.12 HP

Working Speed
Variable

Cross Feed Graduation
0.02 mm

Max Distance from Table to Spindle Center
460 mm

Hydraulic Pump Motor
1 HP

Eyushiuak Taiwan 355 x 710 Automatic Surface Grinder Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

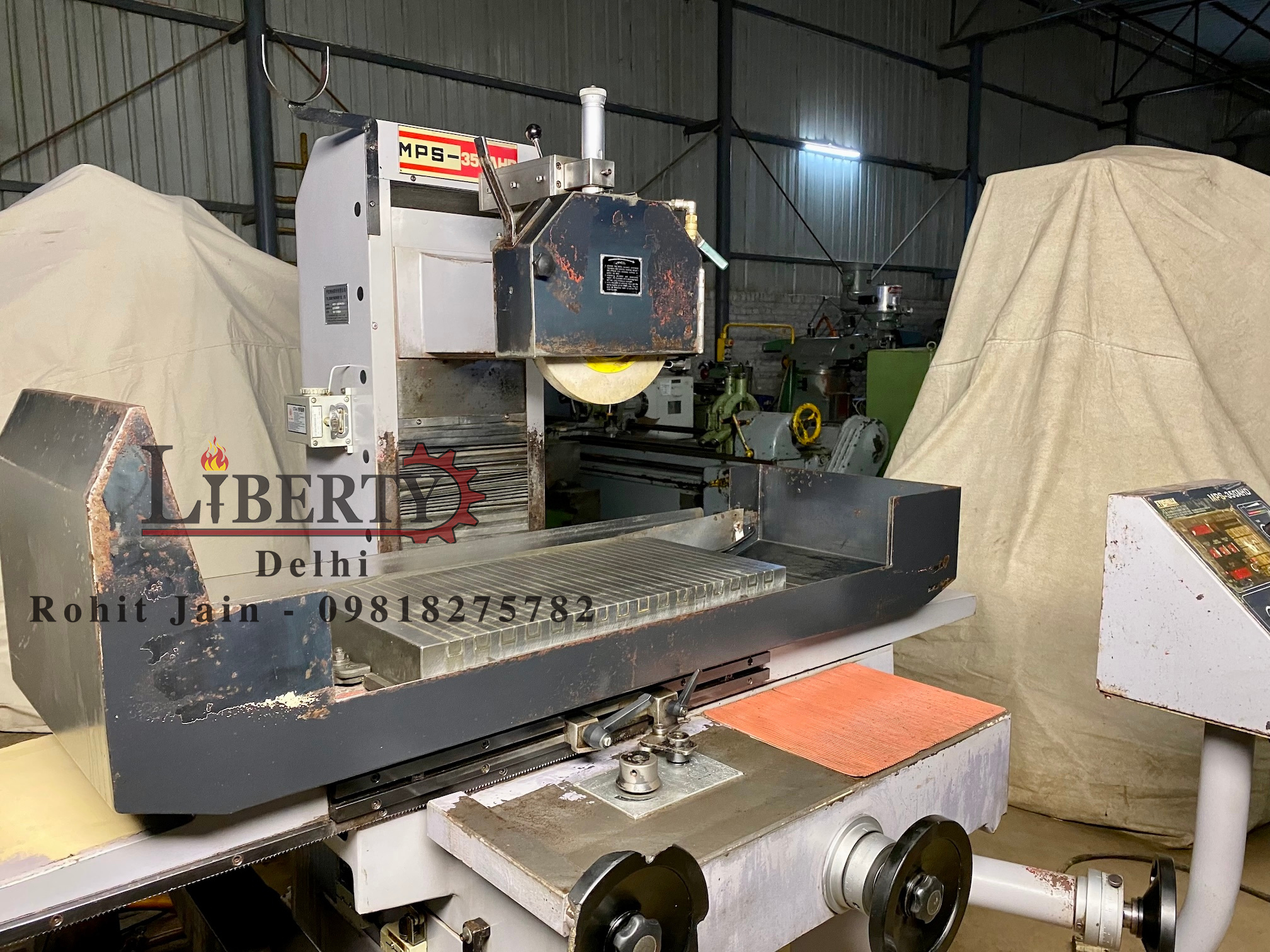

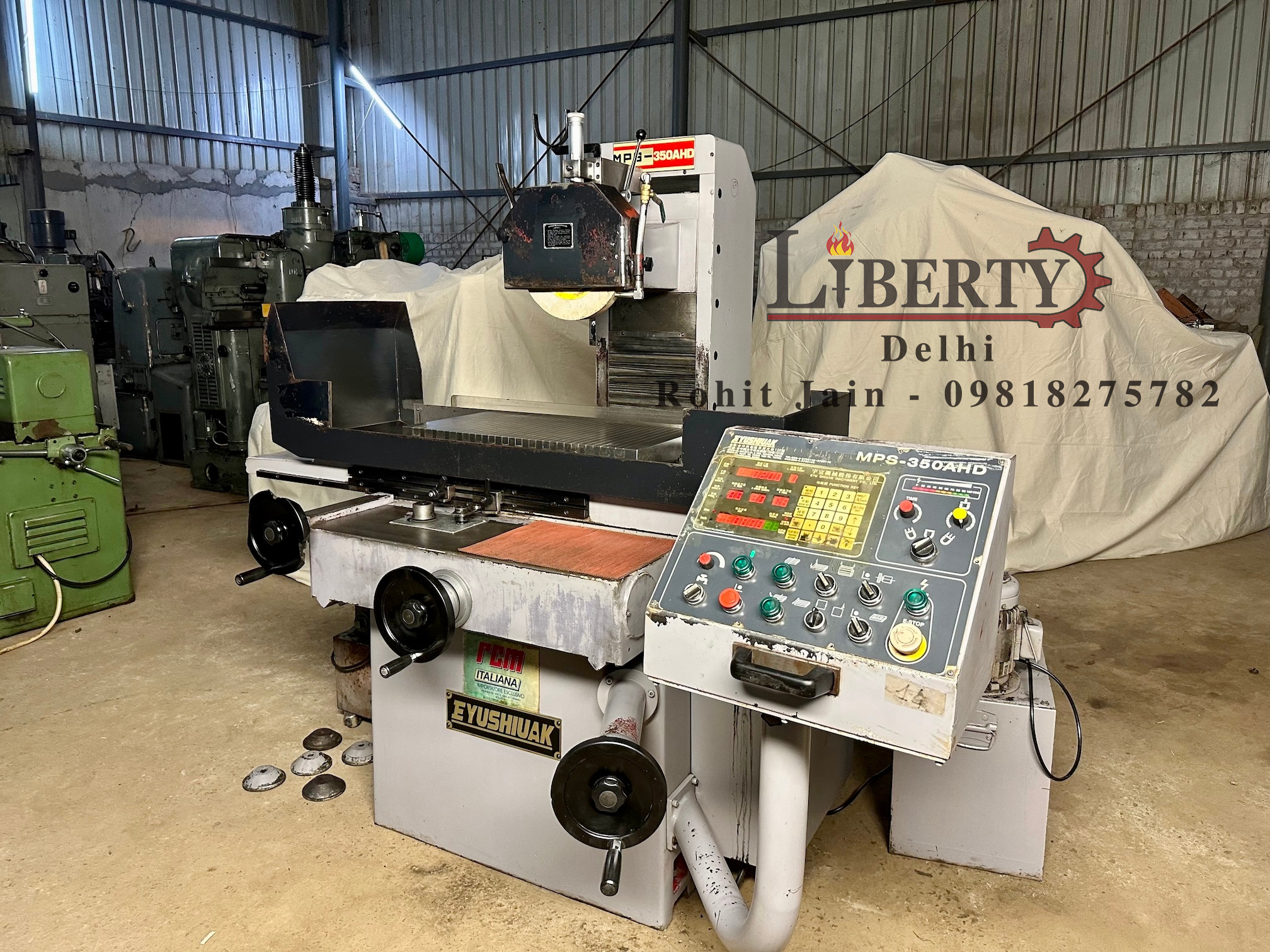

About Eyushiuak Taiwan 355 x 710 Automatic Surface Grinder

Make - Eyushiuak (Taiwan)

Model - MPS-350AHD

Magnet Size - 355 mm x 710 mm

Longitudinal Travel - 760 mm

Cross Travel - 390 mm

Grinding Wheel Diameter - 300 mm

Grinding Wheel Width - 38 mm

Minimum Feed Travel in Vertical Axis - 1 Micron (0.001 mm)

Max. Height between Magnet to Wheel Center - 435 mm

Resolution of the Vertical Axis DRO - 2 Microns (0.002 mm)

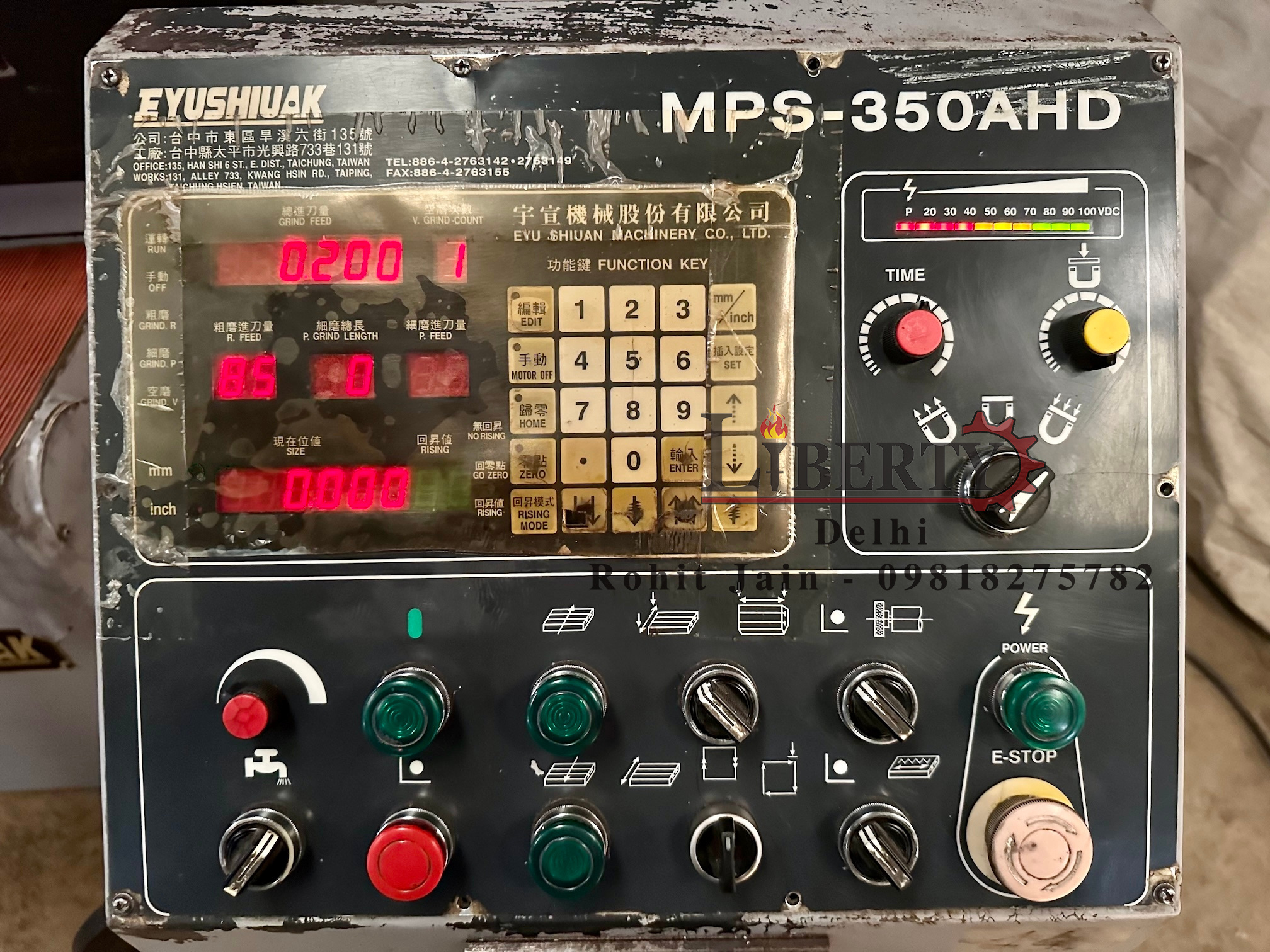

- Programmable Machine with complete Auto-Cycle Working.

- Features like Rough Cut, Finish Cut, & Spark-Out.

- Features like Automatic Wheel Retraction, Plunge Grinding etc.

- Electro-Magnet with feature of De-Magnetisation, Variable Strength, & Timer.

- Equipped with Wheel Top Mounted Wheel Dresser.

- Complete with Magnetic Coolant Filtration Unit, Tank & Pump.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/hIfrlur4jaM

Precision Engineering for Superior Results

This automatic surface grinder is meticulously designed for precision. With high-resolution feed graduations and a magnetic chuck sized at 355 x 710 mm, the machine delivers exceptional accuracy. Operators benefit from the stable, robust table movement and the consistent grinding wheel speed, perfect for demanding applications.

Automatic Features Enhance Efficiency

The Eyushiuak surface grinder integrates an automatic control system and auto-lubrication, making setup and operation straightforward. The variable working speed and large coolant tank maximize productivity by enabling longer, uninterrupted use and reduced maintenance.

FAQs of Eyushiuak Taiwan 355 x 710 Automatic Surface Grinder:

Q: How does the automatic control system of the Eyushiuak Taiwan Surface Grinder streamline the grinding process?

A: The automatic control system simplifies operation by automating table movement, feed rates, and lubrication. This reduces manual intervention, ensures consistent precision, and enhances overall productivity, especially during long or repetitive grinding tasks.

Q: What benefits does the double V-type table slide way provide during operation?

A: The double V-type table slide way with Turcite offers smooth and stable movement, reducing vibration and wear over time. This construction ensures reliable accuracy and longevity, which is vital for achieving high-quality surface finishes.

Q: When is it advantageous to use the Eyushiuak 355 x 710 Automatic Surface Grinder?

A: This grinder excels in situations that demand highly accurate surface finishes on metallic or non-metallic components. Its ideal for manufacturing, tooling, and parts refurbishment tasks where precision and consistent results are essential.

Q: Where is the optimal place to install this surface grinder in a workshop?

A: The machine should be sited in a clean, level area with adequate floor space (minimum dimensions of 2100 x 1740 mm). Proper ventilation and proximity to the required electrical supply (415V, 3-phase) will optimize performance and safety.

Q: What is the process for setting up a job on the Eyushiuak Taiwan Surface Grinder?

A: Begin by securing the workpiece on the magnetic chuck. Select desired feed graduations and table movement parameters using the control system. Set coolant and lubrication levels, then start the system to permit automatic operation with minimal adjustments required.

Q: How is the grinding wheel maintained during continuous operation?

A: The grinders auto-lubrication system helps maintain all moving parts, while the magnetic chuck facilitates easy cleaning. Regular inspection and replacement of the grinding wheel are recommended for optimal cutting performance and surface finish.
