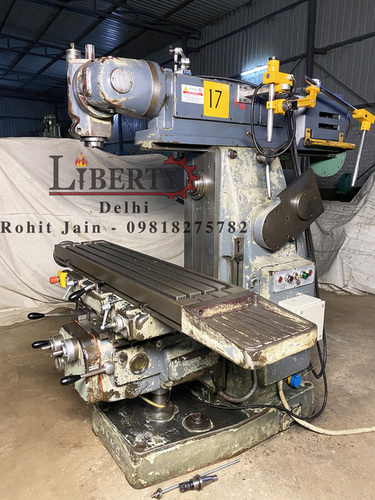

Gambin France 1M Universal Milling Machine

Name: Gambin France 1M Universal Milling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Gambin France 1M Universal Milling Machine Specification

Model
Gambin 1M

Rotation
360° Table Rotation

Product Type
Universal Milling Machine

General Use
Precision universal milling operations

Material
Cast iron, Steel

Type
Horizontal & Vertical

Capacity
Heavy Duty

Weight (kg)
Approx. 1800 kg

Computerized
No

Automatic
Manual

CNC Or Not
Not CNC

Control System
Manual

Table Size
1320 x 290 mm

Table Slide Way
Box-type, Hardened and Ground

Floor Space
Approx. 1800 x 1600 mm

Spindle Speed
35 to 1400 rpm (12 Steps)

Power
3.5 kW (approx. 5 HP)

Voltage
380V/415V (Three Phase)

Dimension (L*W*H)
Approx. 1800 x 1600 x 1800 mm

Feature
Swivelling table, high accuracy

Color
Industrial Green or Light Blue

T-Slots (No. × Width × Pitch)
3 × 14 mm × 63 mm

Lubrication
Centralized manual lubrication

Table Cross Travel
240 mm

Feeds
12 steps, 10 mm/min to 410 mm/min

Table Vertical Travel
340 mm

Rapid Traverse Rate
1200 mm/min

Spindle Taper
ISO 40

Overarm Travel
650 mm

Coolant System
Integrated

Minimum Distance between Table and Spindle
60 mm

Working Speed
Variable by Gearbox

Arbor Diameter
32 mm

Main Motor
3.5 kW

Maximum Distance between Table and Spindle
400 mm

Table Longitudinal Travel
800 mm

Gambin France 1M Universal Milling Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

Gambin France 1M Universal Milling Machine About

Make - Gambin (France)

Model - 1M

Table Size - 1290 mm x 270 mm

XYZ Travels - 740 mm x 260 mm x 560 mm

Spindle Speeds - 25 rpm to 1,800 rpm

Spindle Taper - ISO 40

Feed Rates of Travel - 10 mm/min to 400 mm/min

- Equipped with a 3-Axis DRO.

- Horizontal RAM travel of the Milling Head.

- Double Swivel type Universal Milling Head for Horizontal, Vertical or Angular Milling.

- Equipped with a 3-Axis DRO.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/ML6iOOvSvBc

Precision and Performance

Manufactured for accuracy, the Gambin 1M offers box-type hardened and ground slide ways, ensuring smooth and stable movement during milling. Its 3.5 kW main motor and variable speed gearbox permit a wide range of machining speeds, catering to various material types and cutting demands.

Versatile Machining Applications

The universal design allows for both horizontal and vertical operations, providing flexibility for complex milling tasks. The swiveling table and 360 rotation broaden the machines application, from basic surface milling to detailed, multi-axis work.

User-Friendly and Durable

Engineered for manual control, the Gambin 1M is intuitive for skilled machinists valuing hands-on operation. Integrated centralized manual lubrication and an efficient coolant system maximize the longevity and maintenance efficiency of key components.

FAQs of Gambin France 1M Universal Milling Machine:

Q: How does the Gambin 1M provide precision milling operations?

A: The Gambin 1M is designed with box-type, hardened, and ground table slide ways, as well as a swivelling, 360 rotatable table, ensuring stable, accurate movements for tight tolerance milling tasks.

Q: What types of materials can this universal milling machine handle?

A: Thanks to its ISO 40 spindle taper and powerful 3.5 kW motor, the Gambin 1M can efficiently machine a range of materials including steel and cast iron, making it suitable for heavy-duty applications.

Q: Where is the Gambin 1M commonly used?

A: The Gambin 1M is typically used in manufacturing plants, tool rooms, and workshops that require versatile and precise manual milling capabilities, especially in metalworking industries.

Q: What is the process for changing spindle speeds on the Gambin 1M?

A: Spindle speeds are adjusted manually via a 12-step gearbox, allowing the operator to select from 35 to 1400 rpm to match specific material and cutting tool requirements.

Q: When should centralized manual lubrication be applied?

A: It is recommended to operate the centralized manual lubrication system at the start of each shift or after extended periods of use, ensuring all moving components are properly maintained.

Q: What are the main benefits of the integrated coolant system?

A: The integrated coolant system helps maintain optimal tool temperature, reduces thermal deformation of workpieces, and enhances tool life during prolonged milling operations.
