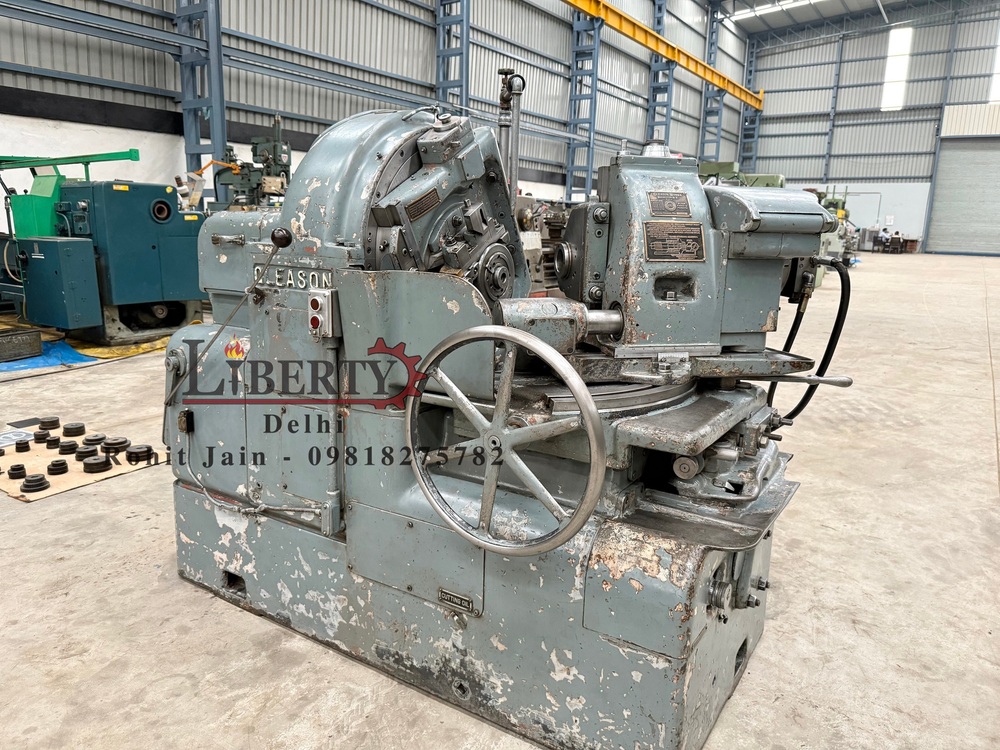

Gleason 12 Straight Bevel Gear Generator

Price 24000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Gleason 12 Straight Bevel Gear Generator Specification

Capacity
Suitable for gears with diameters up to 350 mm

Used For
Generating straight bevel gears

Condition
Used

Power
Electrical

Voltage
415V

Machine Type
Straight Bevel Gear Generator

Output
Finished straight bevel gears

Dimension (L*W*H)
Approx. 2450 mm x 1600 mm x 2200 mm

Feature
Manual operation, Precision cutting, Robust construction

Weight
Approx. 2500 kg

Color
Industrial Grey

Gleason 12 Straight Bevel Gear Generator Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Gleason 12 Straight Bevel Gear Generator

Make - Gleason (USA)

Model - Number 12

Max. Diameter Capacity - 431 mm (17")

Max. Module - 8.5 module (3 DP)

Extreme Ratio - 10 : 1

Longest Cone Distance - 305 mm (12")

Max. Face Width - 90 mm (3.5")

Max. Length of Stroke - 96 mm (3.75")

- Complete with Change Gears and lots of other accessories.

- Operating Manual and Electrical Drawings are available.

- Machine is in excellent working condition.

Video of The Machine-

https://youtu.be/tn2D27xY5R0

Powerful Gear Cutting Capability

The Gleason 12s wide module range and large max pitch diameter allow it to handle a significant variety of straight bevel gear sizes. This versatility makes it a key asset for gear manufacturers managing diverse product lines or custom orders, while retaining the precision expected from Gleason machines.

Operator-Centered Manual Controls

Operational fidelity is assured through intuitive hand-operated levers and switches. Operators have direct control over the gear cutting process, offering precision adjustments on the fly. Manual operation also means lower maintenance and greater adaptability, especially during prototype or small batch runs.

Efficient Space and Utility Management

Requiring floor space of about 4 square meters, this gear generator is compact for its output capacity. Its robust design and relatively moderate noise level (below 75 dB) allow seamless integration into busy industrial environments with minimal disruption. Forklift or crane transport ensures safe relocation as needed.

FAQs of Gleason 12 Straight Bevel Gear Generator:

Q: How does the operator control the Gleason 12 Straight Bevel Gear Generator?

A: The machine is operated using manual hand levers and switches, allowing the user precise direct control over gear cutting actions. This manual operation supports flexibility and responsiveness during gear production.

Q: What is the process for generating straight bevel gears using this machine?

A: To generate straight bevel gears, the operator mounts the gear blank on the clamping table, sets the appropriate module and cutter, and controls the cutting process manually. Standard cutters are included, and the machine is suitable for producing gears with diameters up to 350 mm.

Q: Where should the Gleason 12 be installed and what transport is needed?

A: The machine requires a space of approximately 4 square meters for installation. Due to its weight of around 2500 kg, a forklift or crane is necessary for safe transport and positioning within your facility.

Q: What gears are suitable for production on the Gleason 12 Straight Bevel Gear Generator?

A: This gear generator is designed for straight bevel gears with a module range from 1.5 to 10 mm and a maximum pitch diameter of 350 mm. It is preferred for industries requiring precise, robust gear manufacturing.

Q: When is manual operation an advantage for this gear generator?

A: Manual operation is especially beneficial for custom, low-volume, or prototype gear production. It provides the operator with hands-on control, enabling precise adjustments for unique gear requirements without complex automation programming.

Q: What are the benefits of using the Gleason 12 for gear production?

A: Users benefit from high-precision cutting, robust machine construction, and a broad gear size capacity. The inclusion of standard cutters and basic safety features make it both practical and cost-effective for gear manufacturing tasks.

Q: How is the machine lubricated and what are the maintenance requirements?

A: Lubrication is managed manually, allowing the operator to regularly apply lubricant as needed. This ensures smooth operation and long-term machine durability, with maintenance schedules largely determined by usage intensity.
