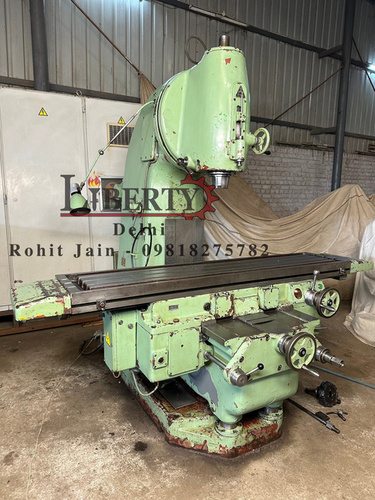

Heavy Duty Vertical Milling Machine

Get a Price/Quote

MOQ : 1 Piece

Heavy Duty Vertical Milling Machine Specification

Rotation
Manual

Model
Standard VMM-HD

Product Type
Vertical Milling Machine

General Use
Industrial Metal Milling

Material
Cast Iron

Type
Heavy Duty Vertical

Capacity
400 kg

Weight (kg)
1350 kg

Computerized
No

Automatic
No

CNC Or Not
Conventional (Not CNC)

Control System
Manual

Table Size
230 x 1050 mm

Table Slide Way
Hardened and Ground

Magnetic Chuck Size
200 x 400 mm

Grinding Wheel Size
150 x 20 x 32 mm

Grinding Wheel Speed
2850 RPM

Grinding Length
400 mm

Floor Space
1600 x 1800 mm

Spindle Speed
60-4200 RPM

Power
3 HP

Voltage
415V

Dimension (L*W*H)
1800 x 1800 x 2100 mm

Feature
High Precision, Rigid Construction, Smooth Operation

Color
Grey

About Heavy Duty Vertical Milling Machine

Make - Saimp (Italy)

Model - FVS-3

Table Size - 1800 mm x 400 mm

Spindle Speeds - 25 rpm to 1500 rpm

Spindle Taper - ISO 50

Table Feed Rate - 6 mm/min to 850 mm/min

Vertical RAM Travel of Spindle - 110 mm

- Automatic Cycle Operation

- Rotating type Vertical Milling Head.

- Equipped with 310 mm Diameter Facing Cutter & Special-purpose Hydraulic Vice.

- Machine is in excellent working condition ; Spindle is completely noiseless.

Video link- https://youtu.be/dY2X_MtaqMo

Precision and Rigid Construction

Engineered with hardened and ground table slide ways and a heavy-duty cast iron frame, this vertical milling machine delivers exceptional rigidity and stability. High-precision surface finishes up to Ra 0.8 m ensure the finest milling results for demanding industrial applications.

Versatile Operation Modes

The machine offers both manual and motorized table feeds, allowing operators flexibility in machining various workpieces. Its manual control system provides hands-on operation, which is ideal for projects requiring skilled adjustment or customization, enhancing productivity and process control.

Enhanced Workpiece Capacity and Safety

With a maximum table load of 350 kg and a spacious work table featuring 3 T-slots, this milling machine accommodates large and heavy workpieces. Advanced features like an automatic pump-type lubrication system and efficient coolant provision sustain optimal performance and minimize maintenance downtime.

FAQs of Heavy Duty Vertical Milling Machine:

Q: How is the vertical milling machine operated given its control system?

A: The Heavy Duty Vertical Milling Machine uses a fully manual control system, allowing operators to precisely adjust and control all axes and spindle functions by hand. This offers a high level of operational flexibility, which professional machinists can leverage for tailored milling processes.

Q: What materials and workpieces can the Standard VMM-HD mill effectively?

A: Thanks to its rigid cast iron construction, large table size, and a capacity of up to 350 kg, this machine is optimized for heavy industrial metal milling. It accommodates a variety of metals, including steel, cast iron, and non-ferrous materials, making it suitable for large-part manufacturing or precision jobs.

Q: Where is the machine best suited for installation and use?

A: Because of its substantial weight (1350 kg), floor space requirement (1600 x 1800 mm), and industrial-grade features, the machine is most appropriately installed in manufacturing plants, machine shops, or industrial workshops that demand high precision and load capacity.

Q: When should the automatic lubrication system be checked or maintained?

A: While the machine features an automatic pump-type lubrication system to ensure consistent and adequate lubrication of moving parts, regular inspection as per the manufacturers maintenance schedule is recommendedtypically after every major production run or on a monthly basis, depending on usage intensity.

Q: What is the process for using both manual and motorized feed modes?

A: The operator can select between manual feeding for careful, hands-on control during intricate operations, or engage the motorized table feed to enable consistent, automated movement along the X, Y, or Z axesideal for longer runs or repetitive production tasks.

Q: How does the provided coolant and lubrication system benefit machine performance?

A: The integrated coolant system and automatic lubrication enhance component longevity, maintain precision by reducing thermal expansion, and ensure smoother surface finishes. Both systems work together to minimize friction, wear, and workpiece distortion during continuous milling operations.

Q: What are the benefits of the machines high spindle speed range and surface finish capability?

A: With a spindle speed range of 60-4200 RPM and surface finish up to Ra 0.8 m, this milling machine delivers excellent flexibility and surface quality. Operators can easily switch speeds to match workpiece material properties and requirements, achieving superior accuracy and finish in every operation.
