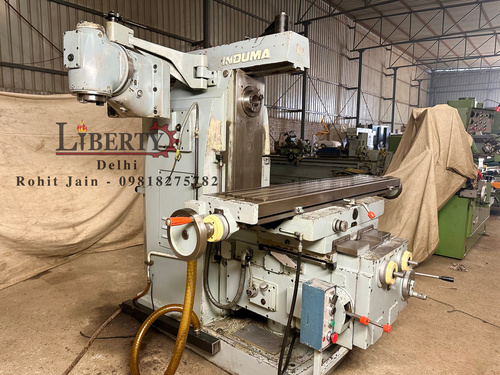

Induma Heavy Duty Bed Milling Machine

Price 35000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Induma Heavy Duty Bed Milling Machine Specification

Model
Induma

Rotation
360 Swivel Milling Head

Product Type
Bed Milling Machine

General Use
Industrial Milling Operations

Material
Cast Iron, Steel

Type
Horizontal Bed Type

Capacity
Heavy Duty

Weight (kg)
3500 kg (approx)

Computerized
No

Automatic
Semi-Automatic

CNC Or Not
Conventional (Not CNC)

Control System
Manual

Table Size
1500 x 400 mm (approx)

Table Slide Way
Box Type Hardened Ways

Floor Space
3000 x 2600 mm (approx)

Spindle Speed
50 3000 rpm

Power
7.5 HP

Voltage
415 V

Dimension (L*W*H)
3000 x 2600 x 2500 mm

Feature
High Rigidity, Robust Design

Color
Industrial Green

About Induma Heavy Duty Bed Milling Machine

Make - Induma (Italy)

Model - FMM 700

Table Size - 1700 mm x 500 mm

XYZ Travel - 1225 mm x 600 mm x 675 mm

Spindle Taper - ISO 50

Spindle Speeds - 35 rpm to 1600 rpm

Weight of Machine - 10 tons (Approximately)

- Complete Column Movement for Y-Axis (Cross) Travel.

- Double Swivel type Heavy Duty Milling Head.

- Feed Rates are Continuously variable.

- Equipped with Ball-Screws and Servo-Motors on all 3 axes.

- Horizontal Attachment and 2 x Brackets for Horizontal Milling.

- Equipped with a 3-Axis DRO.

- Heavy duty Bed Milling with higher weight carrying capacity.

- Machine is in excellent working condition.

Video Link - https://youtu.be/2dI-qWLyT3k

Engineered for Industrial Precision

Built from cast iron and steel with a 360 swivel milling head, the Induma Heavy Duty Bed Milling Machine ensures high rigidity and robust performance. The box-type hardened ways add exceptional stability, making it suitable for heavy components or bulk material removing tasks in demanding manufacturing environments.

Advanced Features for Operational Efficiency

Equipped with a centralized automatic lubrication system and dedicated coolant provisions, downtime is minimized and maintenance is simplified. With 12 feed rates, a wide spindle speed spectrum, rapid traverse, and a generous 900 kg table load capacity, productivity and operational versatility are maximized for industrial milling workflows.

FAQs of Induma Heavy Duty Bed Milling Machine:

Q: How does the Induma Heavy Duty Bed Milling Machine enhance precision during heavy-duty operations?

A: The machine features box-type hardened ways and a robust cast iron frame, ensuring exceptional stability and reduced vibration. These characteristics help maintain machining accuracy, even under high loads of up to 900 kg, making it ideal for heavy-duty milling tasks.

Q: What are the main benefits of the centralized automatic lubrication system?

A: The centralized automatic lubrication system keeps all critical moving parts consistently lubricated, reducing wear and tear, minimizing manual maintenance, and ensuring smoother operation for extended machine life.

Q: When should I use the rapid traverse feature?

A: The rapid traverse, with a speed of 2000 mm/min, should be used when repositioning the table quickly between milling cuts. This feature increases workflow efficiency by minimizing non-cutting movement time during operation setup.

Q: Where is the Induma Heavy Duty Bed Milling Machine manufactured, and does it reflect on quality?

A: Manufactured in Italy, the Induma machine benefits from European engineering expertise and stringent quality standards, ensuring robust construction, long-term reliability, and consistent operational performance.

Q: What industries commonly use this model, and for what processes?

A: This heavy-duty bed milling machine is widely used by manufacturers, suppliers, and exporters in automotive, metal fabrication, and machinery production. It is suitable for processes like face milling, slotting, drilling, and component shaping requiring manual, non-CNC control.

Q: How do the feed rate settings improve machining flexibility?

A: With 12 selectable feed rates (20800 mm/min), users can tailor table movement to match specific material properties and operation requirements, optimizing surface finish and reducing machining time for a diverse range of milling tasks.

Q: What are the key advantages of its semi-automatic design and manual control system?

A: The semi-automatic design combines ease of operation with hands-on control, allowing operators to make real-time adjustments and maintain oversight, essential for custom and one-off industrial milling applications where flexibility is critical.
