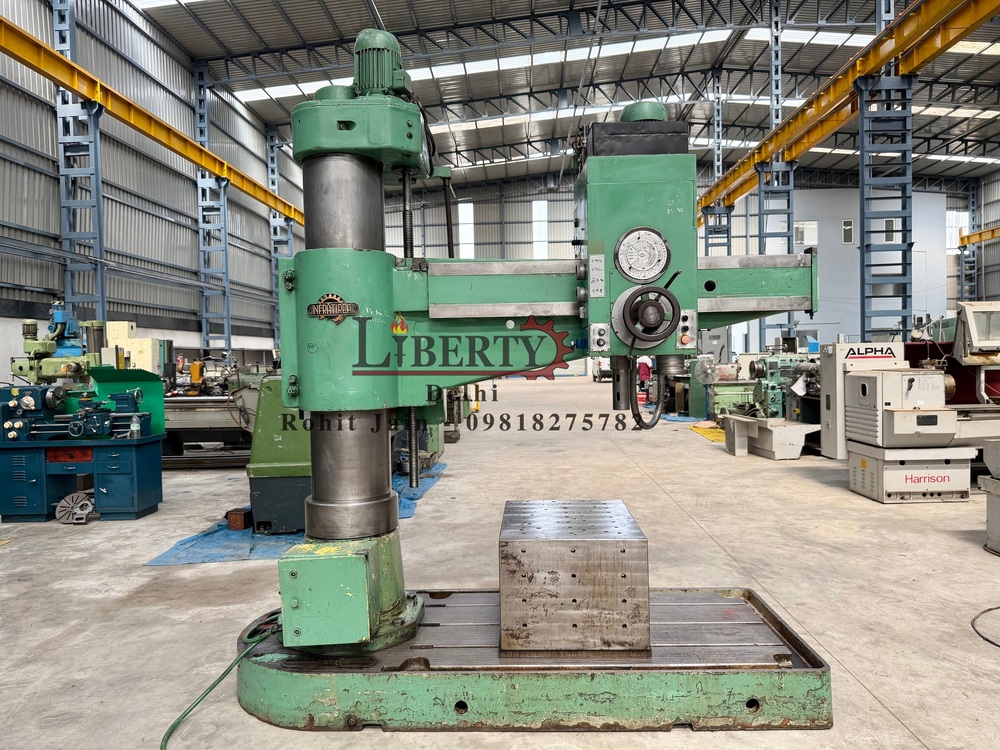

Infratirea Romania 75 mm Capacity Radial Drilling Machine

Name: Infratirea Romania 75 mm Capacity Radial Drilling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Infratirea Romania 75 mm Capacity Radial Drilling Machine Specification

Dimension (L*W*H)
Approx. 3000 x 1200 x 3200 mm Millimeter (mm)

Machine Type
Radial Arm / Column Type

Features
High rigidity, robust design, adjustable arm

Table Size
750 x 500 mm (Approx.)

Condition
New

Frequency
50 Hz Hertz (HZ)

Product Type
Radial Drilling Machine

Material
Cast Iron, Steel

Computerized
No

Automatic Grade
Manual

Control System
Hand Lever / Manual Controls

Voltage
415 V Volt (v)

Power
7.5 HP (Approx) Horsepower (HP)

Power Source
Electric

Weight (kg)
Approx. 4500 kg Kilograms (kg)

Color
Green / Industrial Grey

Usage & Applications
Heavy duty drilling, boring, reaming, tapping on metal and steel

Lubrication
Centralized lubrication system

Column Diameter
Approx. 350 mm

No. of Spindle Speeds
12

Arm Travel
Approx. 1400 mm

Max Distance Spindle to Column
2000 mm approx.

Feed Range
0.04 - 3.2 mm/rev

Clamping
Hydraulic / Manual

Min Distance Spindle to Column
400 mm approx.

Max Distance Spindle to Base
Approx. 2000 mm

Spindle Taper
Morse Taper #5

Vertical Movement of Arm
Approx. 950 mm

Base Size
2000 x 900 mm (Approx.)

Infratirea Romania 75 mm Capacity Radial Drilling Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Infratirea Romania 75 mm Capacity Radial Drilling Machine

Make - Infratirea (Romania)

Model - GR-616H

Drilling Capacity - 75 mm

Spindle Diameter - 95 mm

Arm Length - 1720 mm

Spindle Speeds - 36 rpm to 1600 rpm

Spindle Taper - MT 5

Spindle Feed Travel - 315 mm

Spindle Feed Rate of Travel - 0.04 mm/rev to 0.63 mm/rev

Vertical Travel of Arm - 750 mm

Max. Height between Spindle to Top of Base - 1425 mm

Table Size - 800 mm x 600 mm

Clamping Type - Hydraulic

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/SVuaHcMWVl4

High Performance for Industrial Applications

Designed for heavy-duty drilling, boring, reaming, and tapping, this radial drilling machine delivers reliable power and precision. With its robust 7.5 HP motor, adjustable arm, and substantial base, it supports large-scale metalworking tasks with ease. The centralized lubrication system and low noise operation further enhance productivity and operator comfort, making it an excellent choice for factories and workshops carrying out intensive operations.

Advanced Features and Rigidity

Featuring a rigid column and adjustable arm, this machine achieves impressive accuracy and stability during demanding operations. Its 12-speed spindle with a wide feed range (0.043.2 mm/rev) accommodates diverse metalworking jobs. Hydraulic or manual clamping provides secure positioning, while high-quality cast iron and steel construction ensures long-lasting durability even under continuous use.

FAQs of Infratirea Romania 75 mm Capacity Radial Drilling Machine:

Q: How is the arm of the Infratirea Romania 75 mm Radial Drilling Machine adjusted during operation?

A: The arm is vertically moved up to approximately 950 mm and can travel horizontally up to 1400 mm. Adjustments are made manually using the hand lever controls, allowing precise positioning for different drilling tasks.

Q: What types of materials can this drilling machine handle?

A: This machine is engineered to work with metal and steel materials. Its powerful build and high drilling capacity make it suitable for industrial processes involving cast iron, mild steel, and similar metals.

Q: When should the centralized lubrication system be serviced?

A: It is advisable to regularly monitor the centralized lubrication system and service it according to the manufacturers maintenance schedule, especially before extended use. Proper lubrication ensures smooth operation and reduces wear on critical machine components.

Q: Where is the best environment to use this machine?

A: The machine is best suited for industrial or workshop environments where heavy-duty metalworking is routinely performed. Its size, weight, and power make it ideal for factory floors or manufacturing units specializing in large-scale drilling tasks.

Q: What is the process for clamping workpieces on this machine?

A: Workpieces are clamped using either hydraulic or manual clamping options, depending on your preference or specific project needs. Hydraulic clamping is recommended for faster setup and more secure holding, while manual clamping offers greater control for certain applications.

Q: How does the machine benefit industrial users?

A: With its high drilling capacity, robust design, and reliable power, this radial drilling machine streamlines heavy-duty operations, minimizes downtime, and provides precise resultseven on large or dense metal pieces. The adjustable arm and variety of spindle speeds further increase its versatility.

Q: What safety measures should operators observe when using this machine?

A: Operators should always use safety gear (such as gloves and goggles), ensure the workpiece is securely clamped, and strictly follow operational guidelines in the user manual. Regular maintenance, including checking lubrication and clamping systems, also promotes both safety and effective performance.
