MAS 300 x 1000 Cup Grinder

Get a Price/Quote

MOQ : 1 Piece

MAS 300 x 1000 Cup Grinder Specification

Model
MAS 300 x 1000

Rotation
Standard

Product Type
Cup Grinder

General Use
Heavy Duty Precision Surface Grinding

Material
Cast Iron

Type
Surface Grinder

Capacity
High Productivity

Weight (kg)
Approx. 3500 kg

Computerized
No

Automatic
No

CNC Or Not
No

Control System
Manual

Table Size
300 x 1000 mm

Table Slide Way
Double V type

Magnetic Chuck Size
300 x 1000 mm

Grinding Wheel Size
350 x 127 x 51 mm

Grinding Wheel Speed
1450 RPM

Grinding Length
1000 mm

Floor Space
2400 x 2000 mm

Fuel Tank Capacity
60 Liters

Spindle Speed
1450 RPM

Power
7.5 HP

Voltage
415 V

Dimension (L*W*H)
2400 x 2000 x 2100 mm

Feature
High Precision, Rigid Structure, Versatile Application

Color
White & Blue

Work Head Speed
Variable

Cross Feed
300 mm

Working Speed
Variable

Coolant Pump Motor
0.14 HP

Vacuum Device
Optional

Minimum Feed per Graduation
0.005 mm

Longitudinal Table Travel
1100 mm

Height from Table to Grinding Wheel
400 mm

Lubrication System
Automatic Centralized

Vertical Feed Graduation
0.01 mm

Main Drive Motor
7.5 HP (3 Phase AC)

Work Table Traverse
Manual & Hydraulic

About MAS 300 x 1000 Cup Grinder

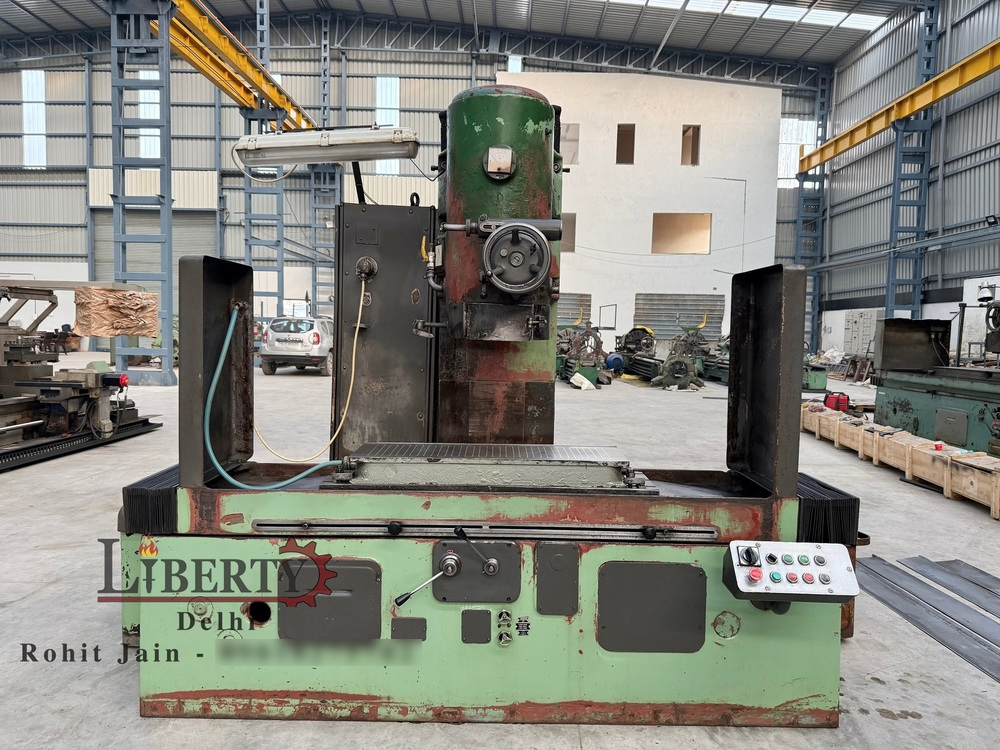

MAS 300 x 1000 Cup Grinder

Make - MAS (Czech Republic)
Model - BPV 300/1
Magnet Size - 300 mm x 1000 mm
Job Grinding Size - 300 mm x 1000 mm
Segmented Wheel Diameter - 315 mm
No. of Segments in Wheel - 8 pcs.
Max. Height of Job - 400 mm

Features:

Motorized Rapid Vertical Travel of Head.
With Automatic Depth Adjustment Auto-Cut
Complete with Coolant tank & pump.
Machine is in excellent working condition.

Video link-https://youtu.be/ZzE9fz46tk8

Engineered for High-Precision Grinding

The MAS 300 x 1000 Cup Grinder delivers top-notch precision in surface grinding with fine feed graduations of 0.01 mm and a minimum feed per graduation of 0.005 mm. Its robust cast iron build, rigid structure, and double V table slide way ensure stable, vibration-free operation, making it highly effective for industries requiring detailed and accurate material removal.

Manual Controls for Versatile Application

Designed for those who value hands-on manipulation, this grinder features a fully manual control system. Modes for work table traverse include hydraulic and manual, supported by a variable speed work head for a range of surface grinding tasks. Its versatility accommodates diverse material requirements, making it suitable for manufacturers, exporters, suppliers, and traders.

Reliable Operation and Maintenance

Equipped with an automatic centralized lubrication system and a robust coolant pump motor, the MAS 300 x 1000 ensures consistent performance and reduced downtime. Its cast iron body offers longevity, while the ample 60-liter fuel tank supports extended operations, ideal for high-productivity settings in demanding environments.

FAQs of MAS 300 x 1000 Cup Grinder:

Q: How does the MAS 300 x 1000 Cup Grinder achieve high-precision results?

A: This machine features a fine vertical feed graduation of 0.01 mm and a minimum feed per graduation of 0.005 mm, allowing for meticulous control over grinding depth. The double V type table slide way and robust cast iron construction minimize vibrations, enhancing accuracy.

Q: What materials and industries can benefit most from this grinder?

A: The MAS 300 x 1000, with its heavy-duty design and high productivity, is suitable for industries like automotive, metalworking, tool manufacturing, and mechanical workshops that demand precision surface grinding on cast iron and similar robust materials.

Q: When is manual control preferable over CNC in grinding applications?

A: Manual control offers greater hands-on flexibility for operators skilled in fine-tuning machine parameters. Its particularly advantageous for custom jobs, one-off components, or applications where operator intuition plays a vital role in achieving desired surface finishes.

Q: Where should the MAS 300 x 1000 be installed for optimal performance?

A: Install the grinder on a stable, level floor that can support its approximately 3500 kg weight. Ensure adequate spacing (2400 x 2000 mm) around the machine for safe operation and maintenance, preferably in industrial settings with proper ventilation and electrical supply (415 V, 3 Phase AC).

Q: What is the process for changing the grinding wheel?

A: Begin by disconnecting the machine from power. Remove the safety guards and loosen the grinding wheel flange. Carefully replace the old wheel with a new one (350 x 127 x 51 mm) and securely fasten it. Reattach guards and test the wheels balance and rotation before resuming work.

Q: How is lubrication handled in this grinder?

A: The MAS 300 x 1000 is equipped with an automatic centralized lubrication system, which continuously supplies oil to essential moving parts. This reduces wear and helps maintain smooth, reliable operation, minimizing the need for frequent manual maintenance.

Q: What are the main benefits of using the MAS 300 x 1000 Cup Grinder?

A: Users benefit from its high precision, robust structure, and versatile applicationscombining heavy-duty performance with detailed control. The centralized lubrication and powerful drive motor facilitate high productivity, while the manual interface provides flexibility for a variety of industrial tasks.
