Mikron 132.02 Horizontal Gear Hobbing Machine
Mikron 132.02 Horizontal Gear Hobbing Machine

Mikron 132.02 Horizontal Gear Hobbing Machine

MOQ : 1 Piece

Mikron 132.02 Horizontal Gear Hobbing Machine Specification

  • Machine Type
  • Horizontal Gear Hobbing Machine
  • Output
  • High Quality Gear Output
  • Dimension (L*W*H)
  • Approx. 1800 x 1200 x 1600 mm
  • Condition
  • Used
  • Used For
  • Cutting and producing gears, splines, and sprockets
  • Capacity
  • Gear diameter up to 130 mm
  • Power
  • 3 kW Main Drive
  • Weight
  • Approx. 2500 kg
  • Feature
  • High reliability and precision machining
  • Color
  • Industrial Grey
  • Voltage
  • 380 V
  • Control Type
  • Manual
  • Number of Teeth (MinMax)
  • Up to 999 teeth
  • Coolant System
  • Equipped
  • Max Gear Width
  • 120 mm
  • Min Module
  • 0.3
  • Spindle Speed Range
  • 40400 rpm
  • Table Bore Through
  • 30 mm
  • Main Motor
  • 3 kW AC
  • Hob Arbor Diameter
  • 22 mm
  • Table Swivel Angle
  • 45
  • Table Hole Diameter
  • 42 mm
  • Machine Base
  • Heavy duty cast iron construction
  • Feed Rate
  • Adjustable; range 0.13 mm/rev
  • Max Module
  • 2.5



About Mikron 132.02 Horizontal Gear Hobbing Machine

Make - Mikron (Switzerland)

Model - 132.02

Max. Gear Diameter - 100 mm

Max. Module Capacity - 1.75 module

Max. Length of Job - 100 mm

Pitch - 6 to 400

Hob Cutter Speeds - 200 rpm to 2400 rpm

- Auto-Cycle Operation.

- Complete with lots of Change Gears, Collets & Spare Tail-Stocks.

- Equipped with a Hydraulic operated Cutter.

- Complete with Coolant Tank & Pump.

- Machine is in excellent working condition.


Video link - https://youtu.be/GzG6BReJ1tE



Precision and Durability for Gear Manufacturing

The Mikron 132.02 delivers dependable gear production with robust cast iron construction, ensuring stability during machining. Its precision manual controls and adjustable feed rates allow for versatile and accurate operations, meeting the needs of manufacturers producing a variety of gear types and sizes.


Versatile and Efficient Operation

With a wide spindle speed range of 40400 rpm and capacity to cut up to 999 teeth per gear, this horizontal hobbing machine caters to diverse production demands. Advanced features like the equipped coolant system and heavy-duty build promote optimal working conditions and extended machine life.

FAQs of Mikron 132.02 Horizontal Gear Hobbing Machine:


Q: How does the Mikron 132.02 Horizontal Gear Hobbing Machine ensure precise gear cutting?

A: The Mikron 132.02 is designed with a heavy-duty cast iron base for stability, precision manual controls, and an adjustable feed rate (0.13 mm/rev), allowing accurate machining of gears, splines, and sprockets each time.

Q: What types of gears and components can this machine produce?

A: This machine is capable of producing gears, splines, and sprockets with modules ranging from 0.3 to 2.5, gear diameters up to 130 mm, and up to 120 mm gear width, making it suitable for many industrial applications.

Q: When should I use a manual gear hobbing machine like this?

A: A manual gear hobbing machine like the Mikron 132.02 is ideal for projects requiring precision and flexibility, especially in small to medium production runs or when custom or prototype gears are needed.

Q: Where is the Mikron 132.02 best utilized?

A: This gear hobbing machine is best suited for workshops, manufacturing units, and production floors where precision, reliability, and production of various gear types are essential, particularly in settings prioritizing high-quality output.

Q: What is the process for cutting gears on this machine?

A: The process involves mounting the workpiece on the table, setting the swivel angle (up to 45 as required), selecting appropriate spindle speed and feed rate, and engaging the hob for precise gear cutting, all assisted by the coolant system for smooth operation.

Q: Why is the coolant system important in gear hobbing?

A: The equipped coolant system helps control the working temperature, reduces tool wear, and ensures higher accuracy and surface quality of the produced gears, contributing to the machines overall reliability and longevity.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Gear Hobbing Machine Category

WMW Modul ZFWZ-315 Hydraulic Gear Hobbing Machine

WMW Modul ZFWZ-315 Hydraulic Gear Hobbing Machine

Price 100000.0 INR / Piece

Minimum Order Quantity : 1 Piece

Machine Type : Hydraulic Gear Hobbing Machine

Feature : High Precision, Hydraulic Operation

Condition : Used

Used For : Gear Cutting & Hobbing

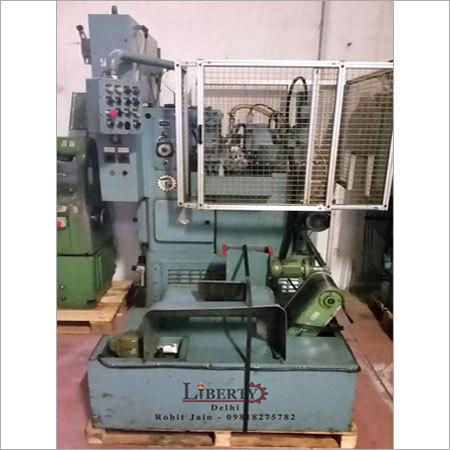

CIMA P3 Gear Hobbing machine

CIMA P3 Gear Hobbing machine

Price 100000 INR / Piece

Minimum Order Quantity : 1 Piece

Machine Type : Gear Hobbing Machine

Feature : High Precision, Robust Construction

Condition : Used

Used For : Gear Cutting Operations

CIMA Italy P-3 Gear Hobbing Machine

CIMA Italy P-3 Gear Hobbing Machine

Price 100000.0 INR / Piece

Minimum Order Quantity : 1 Piece

Machine Type : Cima (Italy) make Gear Hobbing Machine in excellent working condition. The model of the Machine is P3 and the Max. Gear Diameter with TailStock is 155 mm and the Max. Module Capacity is 3 Modules. It is a mechanical type Gear Hobbing with Motorised Rapid Travels and Feed Travels on the Vertical, Longitudinal, & Tangential (Hob Shifting) Travels. The technical details are as follows

Feature : Motorised rapid and feed travels on vertical, longitudinal, and tangential (hob shifting) axes

Condition : Excellent working condition

Used For : Gear hobbing, suitable for cutting gears up to 155 mm diameter

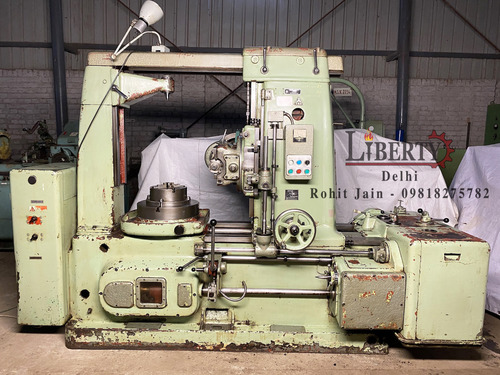

TOS Czech FO-16 Gear Hobbing Machine
