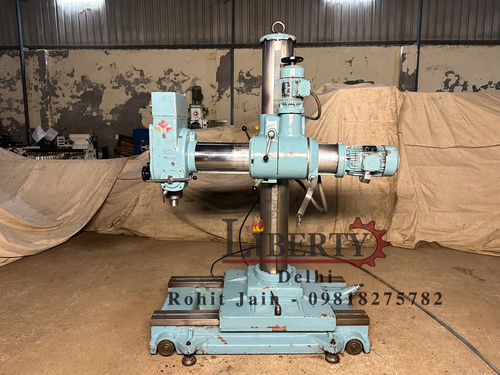

Oerlikon UB2 Drilling Machine

Price 1500 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Oerlikon UB2 Drilling Machine Specification

Cutting Area
Large

Frequency
50 Hz

Condition
Used

Machine Type
Radial Drilling Machine

Spindle Speed
Variable up to 2500 RPM

Features
High Precision Versatile

Table Size
500x500 mm

Motor Power
3 HP

Dimension (L*W*H)
1000x800x1500 mm

Noise Level
Low

Diameter
20 mm

Product Type
Drilling Machine

Material
Cast Iron

Computerized
No

Automatic Grade
Semi-Automatic

CNC Or Not
Not CNC

Control System
Manual

Voltage
220-240V

Power
2500 W

Power Source
Electric

Weight (kg)
400 kg

Capacity
Heavy-Duty

Color
Green

Usage & Applications
Metalworking Fabrication

About Oerlikon UB2 Drilling Machine

Make - Oerlikon (Switzerland)

Model - UB2

Spindle Taper - MT 3

Spindle Diameter - 60 mm

Vertical Travel of Arm (Up/Down) - 590 mm

Longitudinal Travel of Head (In/Out) - 390 mm

Spindle Feed Travel - 150 mm

Spindle Speeds - 25 rpm to 2560 rpm

Spindle Feed Travel Rate - 0.06 mm/rev to 0.25 mm/rev

Table Size - 700 mm x 880 mm

Head Rotation - 360

- Machine is in excellent working condition.

Video link - https://youtu.be/bvuEKjEY04w

Efficient Semi-Automatic Operations

Oerlikon UB2s manual control system paired with semi-automatic functionality enables straightforward and efficient drilling processes. Operators benefit from hands-on manipulation, precise depth adjustment, and rapid setup, making it a suitable option for diverse metalworking projects in both small workshops and large industrial settings.

Robust Build for Heavy-Duty Applications

Manufactured from high-grade cast iron, the UB2 Radial Drilling Machine ensures enduring reliability under demanding workloads. Its large cutting area, substantial table size, and solid 400 kg build allow seamless handling of sizable and tough metal components, delivering consistent results across extended usage.

FAQs of Oerlikon UB2 Drilling Machine:

Q: How does the Oerlikon UB2 Radial Drilling Machine benefit metalworking fabrication tasks?

A: With its large cutting area, high precision, and capacity for drilling up to 20 mm diameter, the UB2 streamlines metal fabrication processes, offering reliable output and versatility for heavy-duty applications.

Q: What are the main features that make this machine suitable for industrial use?

A: Key features include a robust cast iron build, semi-automatic operation, variable spindle speeds up to 2500 RPM, heavy-duty capacity, low noise level, and a large working table of 500x500 mm, making it ideal for demanding metalworking jobs.

Q: When is this drilling machine recommended for purchase or implementation in a workshop?

A: The Oerlikon UB2 is recommended when high precision, versatility, and handling of large metal components are vital, especially in environments requiring dependable semi-automatic operation and manual control.

Q: Where can the Oerlikon UB2 machine be used effectively?

A: It can be implemented in metalworking fabrication facilities, manufacturing plants, tool shops, and trading and export-oriented operations requiring heavy-duty drilling in Swaziland and beyond.

Q: What is the process of setting up the Oerlikon UB2 Radial Drilling Machine?

A: Installation involves positioning the machine on a stable surface, connecting to a 220240V electric outlet, adjusting the manual control system, and configuring the spindle speed up to 2500 RPM for specific drilling tasks.

Q: How does the manual control enhance the usage of this machine?

A: Manual control allows operators to precisely adjust drilling depth and angle, providing greater flexibility and control over metalworking tasks, thus enhancing overall precision and application versatility.
