Stanko 750 mm Stroke Heavy Duty Slotting Machine
Stanko 750 mm Stroke Heavy Duty Slotting Machine

Stanko 750 mm Stroke Heavy Duty Slotting Machine

Price 100000 INR/ Piece

MOQ : 1 Piece

Stanko 750 mm Stroke Heavy Duty Slotting Machine Specification

  • Frame Type
  • Cast iron bed
  • Operating Temperature
  • 5°C to 45°C
  • Noise Level
  • Below 80 dB
  • Voltage
  • 415 V
  • Power Rating
  • 7.5 kW
  • Lubricating System
  • Centralized lubrication
  • Production Capacity
  • Up to 20 pieces/hour
  • Cooling System
  • Integrated coolant system
  • Model No
  • Stanko 750 mm Stroke
  • Frequency
  • 50 Hz
  • Features
  • Robust Structure, Heavy Duty Design, Precise Machining, Low Maintenance
  • Accuracy
  • ±0.02 mm
  • Drive
  • Geared Head Drive
  • Machine Type
  • Slotting Machine
  • Motor Power
  • 7.5 kW
  • Control System
  • Manual/Push Button Control
  • Product Type
  • Heavy Duty Slotting Machine
  • Technology
  • Conventional Machining
  • Power Source
  • Electric
  • Operating Type
  • Semi-Automatic
  • Power
  • 7.5 kW
  • Pressure
  • Adjustable up to 15 MPa
  • Surface Treatment
  • Paint Coated
  • Dimension (L*W*H)
  • 3100 x 1300 x 2500 mm
  • Weight (kg)
  • 4300 kg
  • Color
  • Industrial Green & Black
  • Usage & Applications
  • Slotting, keyway machining, internal gear cutting, shaping complex profiles
  • Table Rotation
  • 360°
  • Installation Service
  • Available
  • Spindle Speed Range
  • Variable, 20 - 120 rpm
  • Operator Interface
  • Analog Scales & Levers
  • Spare Parts Supply
  • Available on Request
  • Safety Features
  • Overload protection, Emergency stop
  • Maximum Workpiece Height
  • 600 mm
  • Table Travel (X, Y)
  • 450 mm (X), 400 mm (Y)
  • Ram Adjustment
  • Up to 150 mm
  • Maximum Load on Table
  • 1500 kg
  • Maximum Stroke Length
  • 750 mm
  • Main Motor Type
  • 3-Phase Induction
  • Maximum Table Diameter
  • 800 mm
  • Clamping System
  • Manual Vise
  • Slotting Tool Shank Size
  • 32 mm
  • Table Feed
  • Automatic and Manual


Stanko 750 mm Stroke Heavy Duty Slotting Machine Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Main Domestic Market
  • All India


About Stanko 750 mm Stroke Heavy Duty Slotting Machine

Make - Stanko (Russia)

Model - 7405

Max. Stroke Length - 750 mm

Table Diameter - 940 mm

Cross Travel of Table - 650 mm

Longitudinal Travel of Table - 800 mm

Feed Travel Rate (Infinitely Variable) - 0 mm/stroke to 2.5 mm/stroke

Year of Make - 1992

- Motorised Rapid & Feed Travels on Table Rotation, Cross & Longitudinal Travel.

- Head can be "Tilted" for Taper Slotting.

- Operating Manual of the machine is available.

- Machine is in excellent working condition.


Video of The Machine -

https://youtu.be/TOpV-W8Z5Ts



Engineered for Demanding Machining Applications

Built with a heavy-duty cast iron bed and powered by a 7.5 kW, 3-phase induction motor, the Stanko 750 mm Stroke Slotting Machine delivers unmatched stability and precision. It is designed for large-scale industrial tasks including slotting, keyway cutting, and complex profile shaping on heavy workpieces. The machines robust construction ensures minimal vibration and superior durability during long production cycles.


Precision and Flexibility in Operation

Heightened productivity is achieved through a versatile spindle speed range of 20120 rpm, 360 table rotation, and adjustable ram settings up to 150 mm. The machine features both automatic and manual table feeds for adaptability to different production requirements, supported by analog scales, levers, and push button controls for straightforward operation. Integrated safety and lubrication systems enhance reliability and operator confidence.

FAQs of Stanko 750 mm Stroke Heavy Duty Slotting Machine:


Q: How does the Stanko 750 mm Stroke Slotting Machine benefit heavy-duty machining operations?

A: The Stanko 750 mm slotting machine is specifically engineered for rigorous industrial tasks, offering robust construction, high load capacity (up to 1500 kg), and remarkable precision (0.02 mm). It maximizes productivity and ensures consistent quality, even with complex profiles and large workpieces.

Q: What are the usage and applications of this slotting machine?

A: This machine is suitable for slotting, keyway machining, cutting internal gears, and shaping intricate profiles in a variety of industries. It is ideal for manufacturing, maintenance, and production environments that require precise and heavy-duty metalworking.

Q: When is table feed automatic versus manual, and how is it controlled?

A: The machine allows operators to switch between automatic and manual table feed based on the workpiece and machining requirements. Controls are accessible via analog scales, levers, and push buttons, giving flexibility for either continuous or operator-driven table movement.

Q: Where can installation and spare parts support be accessed?

A: Professional installation services are available upon purchase, and spare parts can be supplied on request. Customers can coordinate with the manufacturer, suppliers, or authorized service centers in their region for assistance and maintenance support.

Q: What safety measures are integrated into the machine?

A: Key safety features include overload protection and an emergency stop system, which ensure safe operation for both machine and operator. The design also maintains noise levels below 80 dB and provides reliable performance within a safe operating temperature range.

Q: How is precision maintained during the slotting process?

A: With a geared head drive, centralized lubrication system, and precise analog controls, the machine achieves accuracy up to 0.02 mm. The integrated coolant system helps maintain stable temperatures, reducing thermal deformation during extended use.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Slotting Machine Category

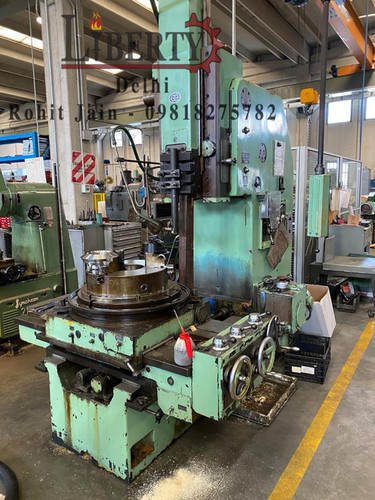

Stanko Russia 570 mm Stroke Heavy Duty Vertical Slotting Machine

Stanko Russia 570 mm Stroke Heavy Duty Vertical Slotting Machine

Price 100000.0 INR / Piece

Minimum Order Quantity : 1 Piece

Dimension (L*W*H) : Approx. 2200 x 1600 x 2800 mm

Noise Level : Typical industrial (approx. 7585 dB under loaded running)

Surface Treatment : Painted

Color : Beige and Blue

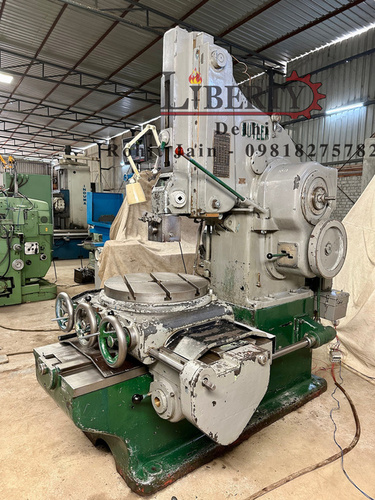

Butler 12 inch Precision Toolroom Slotter Machine

Butler 12 inch Precision Toolroom Slotter Machine

Price 50000 INR / Piece

Minimum Order Quantity : 1 Piece

Dimension (L*W*H) : Approx. 1600 mm x 750 mm x 1800 mm

Noise Level : <75 dB

Surface Treatment : Painted

Color : Industrial Green / Grey

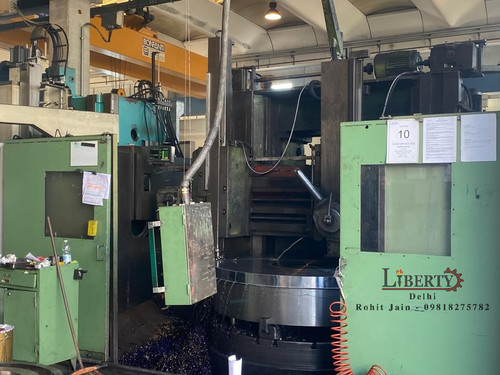

Vertical Turning Lathe Machine
