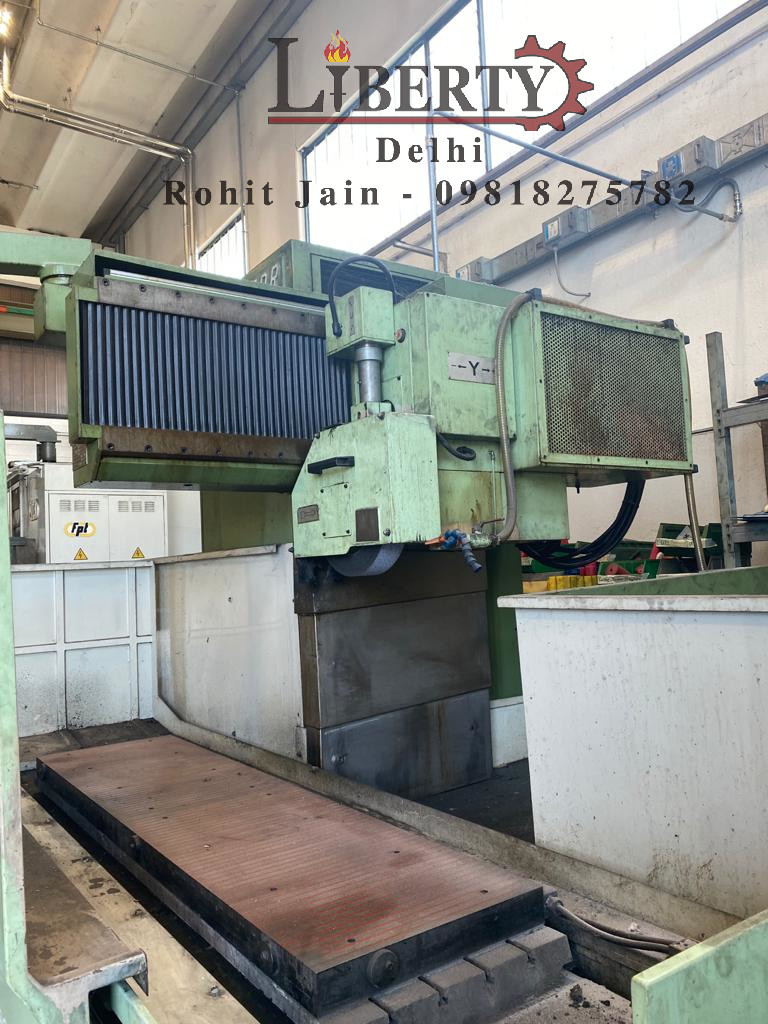

Stefor 2100 x 800 CNC Surface Grinder

Price 25000 INR/ Piece

Get a Price/Quote

Stefor 2100 x 800 CNC Surface Grinder Specification

Rotation
Manual/Automatic

Model
Stefor 2100 x 800

Product Type
Surface Grinder Machine

General Use
Precision surface grinding

Material
Cast Iron and Alloy Steel

Type
Horizontal Spindle, Reciprocating Table

Capacity
Heavy Duty

Weight (kg)
11000 kg

Computerized
Yes

Automatic
Yes

CNC Or Not
CNC

Control System
Siemens CNC Controller

Table Size
2100 x 800 mm

Table Slide Way
Hydrostatic / Box type

Magnetic Chuck Size
2100 x 800 mm

Grinding Wheel Size
500 x 50 x 203 mm

Grinding Wheel Speed
1450 RPM

Grinding Length
2100 mm

Floor Space
5200 x 3200 mm

Fuel Tank Capacity
120 L

Spindle Speed
1450 RPM

Power
18.5 kW

Voltage
415 V

Dimension (L*W*H)
5200 x 3200 x 2600 mm

Feature
High Precision, Rigid Construction, User-friendly CNC Interface

Color
Standard Machine Grey

About Stefor 2100 x 800 CNC Surface Grinder

Make - Stefor (Italy)

Model - RTC 20/7

Max. Job Size - 2100 mm x 800 mm

Magnet Size - 2000 mm x 500 mm

Max. Height of Job - 650 mm

Longitudinal Travel - 2200 mm

Cross Travel - 700 mm

Grinding Wheel Size - Diameter 450 mm x 100 mm Width

- Machine is in excellent working condition.

Unmatched Precision for Heavy-Duty Grinding

The Stefor 2100 x 800 CNC Surface Grinder delivers superior accuracy with positioning precision of 0.003 mm and grinding accuracy of 0.005 mm. Its robust table and frame accommodate loads up to 2500 kg, ensuring reliability during intensive operations. The high-quality build and controlled performance are ideal for manufacturers seeking dependable surface finish on large-scale workpieces.

Advanced CNC Control and User-Friendly Interface

Equipped with a Siemens CNC controller, the Stefor surface grinder simplifies complex grinding cycles. Operators benefit from a digital touch interface, variable electromagnetic chuck control, and programmable automation. This system enhances productivity and reduces setup times, making it intuitive for both experienced and new users.

FAQs of Stefor 2100 x 800 CNC Surface Grinder:

Q: How does the centralized automatic lubrication system benefit the Stefor 2100 x 800 CNC Surface Grinder?

A: The centralized automatic lubrication system ensures consistent and optimal lubrication throughout the machine, reducing friction and wear on moving parts. This results in enhanced operational reliability, increased lifespan of components, and reduced maintenance intervals.

Q: What types of materials can be processed with this CNC surface grinder?

A: The Stefor 2100 x 800 is suitable for grinding a variety of materials, including hardened steel, cast iron, and alloy steel. Its robust construction and powerful motor allow it to handle heavy-duty industrial workpieces efficiently.

Q: When should the integrated coolant systems filtration be checked or serviced?

A: The coolant system, equipped with filtration, should be inspected regularly according to the manufacturers maintenance schedule, or whenever coolant flow decreases or contamination is observed. Routine checks help uphold grinding accuracy and prevent component damage.

Q: Where is the best environment to install this surface grinder?

A: Optimal installation is in a spacious, well-ventilated industrial facility with a stable, vibration-free floor. The recommended floor area for this machine is at least 5200 x 3200 mm to accommodate its footprint and operator movement.

Q: What process controls does the Siemens CNC system provide for precision grinding?

A: The Siemens CNC controller offers precise programmable control over grinding parameters, including feed rates, grinding wheel speed, table movements, and chuck settings. This enables automated, repeatable grinding processes with high positional accuracy.

Q: How is operator safety ensured during machine operation?

A: Operator safety is maintained through integrated emergency stop buttons, overload protection circuits, and door interlocks. These features prevent accidental machine start-up during maintenance and halt operation in emergency situations.

Q: What are the key benefits of using the Stefor 2100 x 800 for precision surface grinding?

A: Key benefits include high grinding accuracy, repeatable performance, heavy-duty load handling, a user-friendly CNC interface, automated lubrication, safety features, and robust construction. Together, these make the Stefor ideal for demanding precision grinding applications in manufacturing.
