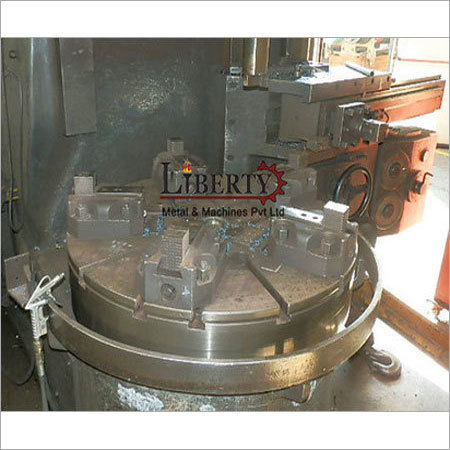

Titan SC 22 Vertical Turning Lathe

Get a Price/Quote

Titan SC 22 Vertical Turning Lathe Specification

Control System
PLC/CNC

Model No
SC 22

Motor Power
22 kW

Power Rating
22 kW

Production Capacity
High Volume

Frequency
50 Hz

Cooling System
Integrated coolant system

Frame Type
Monolithic

Voltage
415 V

Drive
Direct Drive

Noise Level
<80 dB

Connectivity Options
RS232, USB

Features
Sturdy construction, high rigidity, large table diameter, advanced drive system

Lubricating System
Centralized automatic lubrication

Accuracy
0.01 mm

Operating Temperature
5-45C

Machine Type
Vertical Turning Lathe

Product Type
Vertical Turning Lathe

Technology
CNC

Power Source
Electric

Operating Type
Automatic / Semi-Automatic

Power
22 kW

Surface Treatment
Paint Coated

Dimension (L*W*H)
3900 x 3200 x 3400 mm

Weight (kg)
12000 kg

Color
Blue & Grey

Usage & Applications
Heavy duty turning operations, machining large cylindrical parts

Backup Systems
UPS for control panel

Maximum Turning Diameter
2200 mm

Safety Features
Emergency stop, interlock door, overload protection

Paint Type
Industrial-grade anti-corrosive paint

Tool Post Type
Electromechanical

Number of Tool Stations
8

Chuck Type
4-Jaw Independent

Hydraulic System
High pressure hydraulic power pack

Maximum Workpiece Weight
6000 kg

Maximum Turning Height
1600 mm

Electrical Supply
3 Phase, 415V, 50Hz

Table Diameter
2000 mm

Protection Rating
IP54

Axis Configuration
2 Axis (X, Z)

Spindle Speed Range
5-200 rpm

Main Spindle Bore
160 mm

Rapid Traverse Rate
10 m/min

About Titan SC 22 Vertical Turning Lathe

The Titan SC 22 Vertical Turning Lathe offers an outstanding solution for heavy-duty machining tasks, designed for exceptional performance and enviable reliability. Personalise your operations with acclaimed CNC and PLC control systems, delivering praiseworthy accuracy of 0.01 mm. Accommodating large parts with a robust table diameter of 2000 mm and handling workpieces up to 6000 kg, the machine boasts a sturdy monolithic frame, advanced electromechanical tool post, and high-pressure hydraulics. With integrated coolant, automatic lubrication, emergency safety features, and premium anti-corrosive paint, the SC 22 ensures top-tier productivity and operational security for exporters, importers, manufacturers, and suppliers across India.

Titan SC 22 Lathe: Advantages and Features

The Titan SC 22 Vertical Turning Lathe is engineered for precision and high-volume turning operations, featuring a monolithic frame for outstanding rigidity. Special features include a direct drive system, advanced electromechanical tool post, eight tool stations, and a high-pressure hydraulic power pack. With an enviable spindle speed range and integrated cooling and lubrication systems, users benefit from reliability and praiseworthy machining quality. Connectivity options like USB and RS232 further enhance the flexibility and adaptability of this acclaimed machine.

Titan SC 22 Lathe: Payment and Delivery Details

Payment terms for the Titan SC 22 Lathe are flexible to accommodate bespoke requirements, and estimating costs is streamlined to suit various budget ranges. Quick dispatch is available from major domestic markets across India, and the FOB port is conveniently located near principal industrial hubs. Potential buyers are encouraged to request the asking price and enjoy responsive service, ensuring a seamless acquisition process from exporter, manufacturer, or supplier channels.

FAQs of Titan SC 22 Vertical Turning Lathe:

Q: How can users benefit from the CNC technology integrated in the Titan SC 22 Vertical Turning Lathe?

A: The CNC technology enables programmable and customised machining operations, improving accuracy, efficiency, and repeatability. It ensures users achieve outstanding precision for complex heavy-duty tasks while minimising human error.

Q: What makes the Titan SC 22 suitable for machining large cylindrical parts?

A: Its enviable table diameter of 2000 mm, robust frame construction, and capacity to handle workpieces up to 6000 kg make it ideal for large-scale turning operations, ensuring both stability and control during intricate machining processes.

Q: When is the recommended time to place an order for the Titan SC 22 for quick dispatch?

A: It is recommended to place an order as soon as requirements are finalised, as quick dispatch is offered from multiple major markets in India, subject to current stock availability and efficient processing times.

Q: Where can buyers request pricing and receive estimates for the Titan SC 22?

A: Buyers can contact the authorised exporter, manufacturer, supplier, or trader directly to receive a personalised asking price and an estimate matched to specific configuration needs.

Q: What safety systems are implemented in the Titan SC 22 Vertical Turning Lathe?

A: Safety is ensured with emergency stops, interlock doors, overload protection, and an integrated UPS backup for the control panel, creating a secure environment for operators during heavy-duty machining tasks.

Q: How does the maintenance process work for the Titan SC 22?

A: Maintenance is simplified through an automatic centralized lubrication system and accessible hydraulic and coolant systems, providing praiseworthy reliability and minimizing downtime during regular service intervals.
