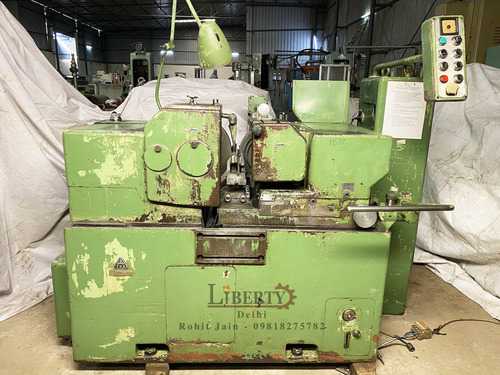

TOS BBJ6 Centerless Grinder

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TOS BBJ6 Centerless Grinder Specification

Model
TOS BBJ6

Rotation
Variable depending on part

Product Type
Centerless Grinder

General Use
Centerless grinding of cylindrical parts

Material
Cast iron, Steel

Type
Industrial Machine

Capacity
Capable of 6 mm to 100 mm diameter workpiece

Weight (kg)
2600 kg

Computerized
No

Automatic
Semi-Automatic

CNC Or Not
Not CNC, conventional type

Control System
Manual

Table Slide Way
V-flat

Grinding Wheel Size
400 mm x 160 mm x 203 mm

Grinding Wheel Speed
1650 rpm

Grinding Length
200 mm

Floor Space
2200 mm x 1400 mm

Fuel Tank Capacity
Hydraulic tank 60 liters

Spindle Speed
Varies as per grinding operation

Power
7.5 kW

Voltage
415 V, 3 Phase

Dimension (L*W*H)
2200 x 1400 x 1400 mm

Feature
High precision, rigid structure

Color
Industrial Green

TOS BBJ6 Centerless Grinder Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About TOS BBJ6 Centerless Grinder

Make - TOS (Czech Republic)

Model - BBJ 6

Job Diameter - 3 mm to 60 mm

Grinding Wheel Size - Diameter 350 mm x 100 mm Width

Control Wheel Size - Diameter 250 mm x 100 mm Width

Control Wheel Slide Swivel Angle - 4 degree to -2 degree (for Taper Jobs)

Control Wheel Feed Angle - 4 degree to -2 degree

Least Count - 1 Micron (0.001 mm)

- Equipped with Hydraulic Wheel Dressers.

- Profile Dressing is possible on both the wheels.

- Complete with Magnetic Filtration Unit, Coolant Tank & Pump.

- Lots of spare support plates are available.

- Electrical Drawing of the machine is available.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/7cqV3odF-3c

Precision and Versatility for Industrial Grinding

The TOS BBJ6 Centerless Grinder stands out for its ability to handle a broad diameter range, enabling manufacturers to achieve consistent, high-precision results. Its robust construction and adjustable speeds allow it to meet demanding production needs, whether for single batches or mass manufacturing. With its semi-automatic operation, the machine streamlines the grinding process while ensuring safety and efficiency, making it suitable for heavy-duty, industrial environments.

Enhanced Features for Maximum Productivity

Equipped with manual work rest blade adjustment, a reliable coolant system, and centralized lubrication, the TOS BBJ6 is designed to minimize maintenance and downtime. Adjustable working speeds and a heavy-duty anti-vibration base contribute to stable operation, while the large grinding and regulating wheels ensure even wear and optimum performance. Its spacious floor footprint is optimized for factory settings focused on throughput and quality.

FAQs of TOS BBJ6 Centerless Grinder:

Q: How is the work rest blade adjusted on the TOS BBJ6 Centerless Grinder?

A: The work rest blade adjustment on the TOS BBJ6 Centerless Grinder is performed manually, allowing operators to fine-tune the positioning for various diameters and maximize stability during grinding operations.

Q: What materials and types of parts can be processed with this machine?

A: This grinder is suitable for centerless grinding of cylindrical parts made from cast iron and steel, handling workpiece diameters from 6 mm to 100 mm. Its ideal for components requiring high precision and smooth surface finishes.

Q: When is it beneficial to use the TOS BBJ6 in batch or mass production?

A: The TOS BBJ6 is highly effective in environments where consistent results are needed over large quantities, such as in batch or mass production. Its robust build and adjustable speeds are suited for continuous operations and repetitive tasks.

Q: Where is the TOS BBJ6 commonly installed and used?

A: This model is typically found in industrial settings like manufacturing plants, automotive workshops, and factories engaged in large-scale cylindrical part production. Its dimensions fit standard workshop floor layouts.

Q: What makes the TOS BBJ6s grinding process precise and efficient?

A: Precision is achieved through the grinders rigid, anti-vibration base, the centralized lubrication system, and the use of high-quality grinding and regulating wheels. Adjustable speeds allow for optimal matching to a variety of materials and part sizes.

Q: How does the coolant system benefit the grinding operation?

A: The included coolant system, complete with a pump and tank, keeps workpieces and wheels at suitable temperatures, reducing thermal deformation, ensuring smoother finishes, and extending the life of both the wheel and the parts.

Q: What are the main advantages of choosing a conventional, non-CNC centerless grinder like the TOS BBJ6?

A: A conventional, non-CNC machine like the TOS BBJ6 offers straightforward manual controls, lower programming complexity, and reliable performance, making it a cost-effective choice for operators skilled in precision manual grinding.
