TOS BPV 300 x 1000 Vertical Surface Grinder

Send Inquiry

Request To Call Back

TOS BPV 300 x 1000 Vertical Surface Grinder

Price 14000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TOS BPV 300 x 1000 Vertical Surface Grinder Specification

Rotation
Grinding Wheel Rotation Only

Model
BPV 300 x 1000

Product Type
Vertical Surface Grinder

General Use
Precision Vertical Surface Grinding

Material
Cast Iron Body

Type
Vertical

Capacity
Heavy Duty

Weight (kg)
Approx. 3500 kg

Computerized
No

Automatic
Manual

CNC Or Not
No

Control System
Manual

Table Size
300 x 1000 mm

Table Slide Way
Vee & Flat

Magnetic Chuck Size
300 x 1000 mm

Grinding Wheel Size
400 mm diameter

Grinding Wheel Speed
1440 RPM

Grinding Length
1000 mm

Floor Space
2400 x 1800 mm

Fuel Tank Capacity
Approx. 60 Litres

Spindle Speed
1440 RPM

Power
7.5 HP

Voltage
415 V

Dimension (L*W*H)
2400 x 1800 x 2000 mm

Feature
Accurate Grinding, Easy Operation

Color
Gray

Chuck Mounting
Electro Magnetic

Rapid Traverse of Grinding Head
Optional

Maximum Grinding Height
450 mm

Table Longitudinal Travel
1050 mm

Wheel Head Motor
7.5 HP / 5.5 KW

Coolant System
Fitted Standard

Machine Base
Heavy Ribbed Cast Iron

Lubrication System
Centralized

Vertical Movement of Grinding Head
450 mm

Work Table Feed
Manual

About TOS BPV 300 x 1000 Vertical Surface Grinder

Make - TOS (Czech Republic)

Model - BPV 300

Magnet Size - 300 mm x 1000 mm

Segmented Wheel Cup Diameter - 315 mm

No. of Segments in Wheel - 8 pcs.

Max. Height of Job - 400 mm

- With Automatic Depth Adjustment "Auto-Cut"

- Equipped with a Wheel Dresser.

- Complete with Coolant tank & Pump

- Machine is in excellent working condition.

Video link - https://youtu.be/fPNN_7C3j24

Precision and Performance

The TOS BPV 300 x 1000 guarantees accurate vertical surface grinding with a grinding wheel speed of 1440 RPM and a heavy ribbed cast iron base for stability. Its robust construction ensures reliable performance even under demanding conditions, ideal for workshops that require high-precision work.

Ease of Operation and Maintenance

Designed with user convenience in mind, the grinder features manual controls, a centralized lubrication system, and manual table feed for straightforward operation and upkeep. The standard fitted coolant system enhances tooling life and maintains grinding quality throughout extended use.

Heavy-Duty Capabilities

With a 7.5 HP motor and a grinding capacity tailor-made for heavy-duty jobs, the BPV 300 x 1000 model is perfect for industrial applications. Its large table size and significant grinding height accommodate sizable workpieces, making it suitable for a range of metalworking tasks.

FAQs of TOS BPV 300 x 1000 Vertical Surface Grinder:

Q: How is the grinding head operated on the TOS BPV 300 x 1000 Vertical Surface Grinder?

A: The grinding head operates vertically, controlled manually by the user. Although rapid traverse is available as an optional feature, standard operations involve precise manual adjustment, providing accuracy up to 450 mm of vertical movement.

Q: What materials and workpieces are best suited for this vertical surface grinder?

A: This grinder is particularly effective for precision grinding of heavy, metallic workpieces. The machines heavy-duty, cast iron construction and electromagnetic chuck make it ideal for steel, cast iron, and other ferrous materials up to the maximum table size of 300 x 1000 mm.

Q: When should the coolant and lubrication systems be used during operation?

A: The built-in coolant system should be active during all grinding processes to cool both the grinding wheel and the workpiece, preventing heat buildup and ensuring a superior surface finish. The centralized lubrication system should run concurrently to minimize wear and maximize machine longevity.

Q: Where is the TOS BPV 300 x 1000 most effectively utilized?

A: This vertical surface grinder excels in industrial environments such as machine shops, manufacturing plants, and repair facilities that demand precision surface finishing and heavy-duty capacity, suitable for both exporting and importing purposes.

Q: What benefits does the manual control system offer over computerized alternatives?

A: Manual controls provide the user with direct, tactile feedback and precise control over grinding operations. This allows for adjustment on-the-fly, making the machine versatile for both complex and straightforward tasks without requiring CNC programming expertise.

Q: How is the workpiece secured during the grinding process?

A: The machine incorporates an electromagnetic chuck sized at 300 x 1000 mm for securely mounting workpieces. This ensures that components remain stable throughout the grinding process, enhancing both safety and precision.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

More Products in Surface Grinder Category

Taiwan 355 mm x 710 mm Surface Grinding Machine

Price 15000 INR / Piece

Minimum Order Quantity : 1 Piece

General Use : Precision surface grinding of metals and other materials

Type : Other, Manual Surface Grinder

Feature : Other, High Precision, Durable Construction

CNC Or Not : Other, Not CNC

Get a Price/Quote

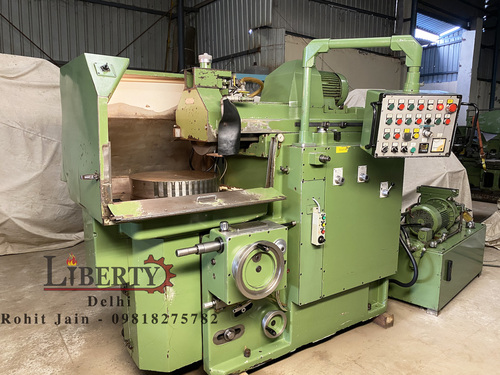

Abwood 500 mm Rotary Table Surface Grinder
