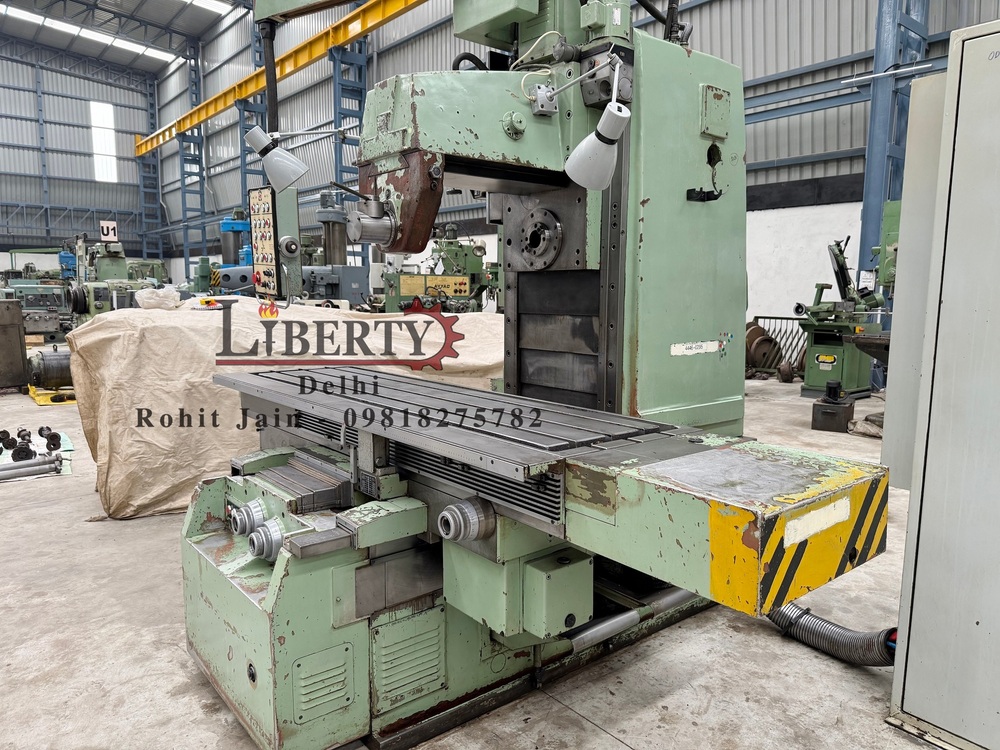

TOS Czech 1600 x 350 Vertical Milling Machine

Name: TOS Czech 1600 x 350 Vertical Milling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TOS Czech 1600 x 350 Vertical Milling Machine Specification

Model
1600 x 350

Rotation
Spindle rotation, both directions

Product Type
Vertical Milling Machine

General Use
Vertical Milling Operations, Precision Metalworking

Material
Cast Iron Body

Type
Conventional

Capacity
Heavy duty, up to 1600 mm table travel

Weight (kg)
Approx. 3500 kg

Computerized
No

Automatic
No

CNC Or Not
Not CNC

Control System
Manual

Table Size
1600 x 350 mm

Table Slide Way
Box type

Floor Space
2600 x 2300 mm (approx.)

WorkingSpeed
Adjustable, as per spindle range

Spindle Speed
40 1800 rpm (variable, 12 steps)

Power
5.5 kW

Voltage
415V, 3 Phase, 50Hz

Dimension (L*W*H)
Approx. 2600 x 2300 x 2100 mm

Feature
Robust Construction, Precise Operation

Color
Standard Grey with Green/Blue

Max. Distance Spindle to Table
480 mm

Coolant System
Included

Table Surface T Slot
3 Slots, 18 mm Wide

Number of Spindle Speeds
12

Spindle Taper
ISO 40

Max. Cross Travel (Y-Axis)
350 mm

Max. Vertical Travel (Z-Axis)
420 mm

Max. Table Load
1200 kg

Max. Longitudinal Travel (X-Axis)
1300 mm

Application
Gear Cutting, Slotting, Drilling

Feed Range
Manual & Motorized

Lubrication System
Automatic Centralized

TOS Czech 1600 x 350 Vertical Milling Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About TOS Czech 1600 x 350 Vertical Milling Machine

Make - TOS (Czech Republic)

Model - FA4AV

Table Size - 1600 mm x 350 mm

XYZ Travels - 1000 mm x 350 mm x 425 mm

Spindle Taper - ISO 50

Spindle Speeds - 32 rpm to 1400 rpm

Table Feed Rates - 10 mm/min to 1250 mm/min

Max. Height between Table to Spindle - 550 mm

Spindle Motor - 7.5 kW

Vertical Head Rotation - +45 degree to -45 degree

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/8y79CarvGNc

Robust Construction & Durability

Crafted from high-quality cast iron, the TOS Czech 1600 x 350 guarantees exceptional structural stability and vibration resistance. This heavy-duty milling machine is engineered for demanding industrial applications, maintaining accuracy and performance, even under continuous use. The robust box-type slide ways on the table further strengthen its resilience, ensuring longevity in busy production environments.

Versatile Milling Operations

This vertical milling machine excels across varied operations such as gear cutting, slotting, and drilling. The ISO 40 spindle taper accommodates diverse tooling, while the 12-step variable spindle speeds allow precise adjustment for each job. Combined with manual and motorized feed options, it provides the flexibility required for both complex and routine milling tasks.

Ease of Operation & Maintenance

Operating the TOS Czech 1600 x 350 is straightforward, with manual controls for spindle rotation and feed adjustment. The inclusion of an automatic centralized lubrication system and internal coolant supply simplifies maintenance and prolongs machine life. The accessible layout and intuitive control system support efficient workflow for both skilled and novice operators.

FAQs of TOS Czech 1600 x 350 Vertical Milling Machine:

Q: How does the TOS Czech 1600 x 350 Vertical Milling Machine ensure precision during heavy-duty operations?

A: The machines robust cast iron body, box-type table slide ways, and precision-manufactured spindle assembly minimize vibrations and maintain accurate alignment during intensive milling, resulting in consistently high-precision outputs.

Q: What types of machining processes can be performed with this milling machine?

A: It supports multiple operations including gear cutting, slotting, drilling, and general vertical milling, making it suitable for precision metalworking applications in industrial settings.

Q: When is it beneficial to use a manual vertical milling machine over a CNC model?

A: Manual vertical milling machines like this one offer greater operator control during prototyping, small-batch runs, and custom jobs where flexibility and tactile feedback are preferred, especially when CNC-level automation is not required.

Q: Where can this milling machine be installed, and what are its floor space requirements?

A: The TOS Czech 1600 x 350 requires approximately 2600 x 2300 mm of floor space, making it compatible with most industrial workshops, manufacturing plants, and metalworking facilities where such dimensions can be accommodated.

Q: What is the process for adjusting spindle speed and table feed during operation?

A: Operators can choose from 12 spindle speed steps between 40 and 1800 rpm and adjust feed settings manually or via motorized options, tailoring speeds to the material and cutting process for optimized results.

Q: How is lubrication managed to maintain smooth machine operation?

A: The machine is equipped with an automatic centralized lubrication system that consistently distributes oil to critical components, reducing wear and minimizing maintenance effort.

Q: What benefits does the included coolant system offer during usage?

A: The built-in coolant system helps manage heat and remove chips during machining, protecting workpieces from thermal damage and ensuring longer tool life with smoother surface finishes.
