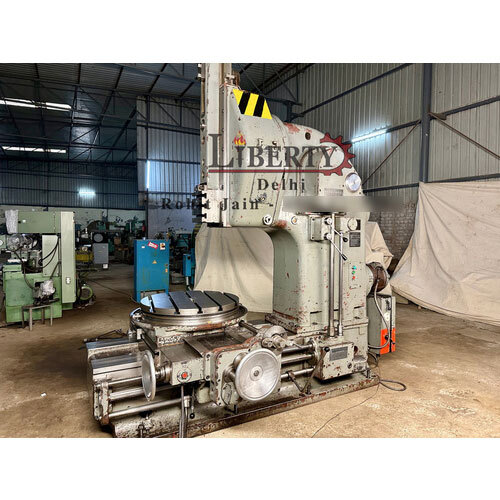

TOS Czech HOV-63 Stroke Heavy Duty Slotting Machine

Send Inquiry

Request To Call Back

TOS Czech HOV-63 Stroke Heavy Duty Slotting Machine

Name: TOS Czech HOV-63 Stroke Heavy Duty Slotting Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TOS Czech HOV-63 Stroke Heavy Duty Slotting Machine Specification

Frame Type
Rigid Box Frame

Noise Level
Standard Industrial

Voltage
415 V

Cooling System
Coolant Pump Provided

Machine Type
Slotting Machine

Power Rating
3 HP

Control System
Manual Switch/Lever Control

Motor Power
3 HP

Features
Heavy Duty Construction, Robust Frame, Adjustable Stroke, Hardened Guideways

Accuracy
High Precision Slotting Capability

Model No
HOV-63

Lubricating System
Automatic Lubrication

Production Capacity
Custom / As Required

Drive
Electric Motor Driven

Operating Temperature
0-45°C

Frequency
50 Hz

Product Type
Heavy Duty Slotting Machine

Technology
Conventional Mechanical

Power Source
Electric

Operating Type
Semi-Automatic

Power
3 HP

Surface Treatment
Painted

Dimension (L*W*H)
Approx. 2000 x 1200 x 2100 mm

Weight (kg)
Approx. 1800 kg

Color
Green

Usage & Applications
Slotting, Grooving, Internal Keyway Cutting in Metal Components

Maximum Table Load
500 kg

Cross Table Movement
450 mm

Main Spindle Speed
Variable, up to 60 SPM

Minimum Slot Width
6 mm

Max Work Piece Height
630 mm

Table Type
Rotary Table

Ram Type
Reciprocating, Adjustable Stroke

Table Diameter
560 mm

Grease Nipple Points
Multiple

Max Ram Adjustment
315 mm

Longitudinal Table Movement
600 mm

Tool Shank Size
32 x 40 mm

Stroke Length
630 mm

Working Environment
Industrial Metal Workshops

Table Rotation
360 full rotation

TOS Czech HOV-63 Stroke Heavy Duty Slotting Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About TOS Czech HOV-63 Stroke Heavy Duty Slotting Machine

Make - TOS (Czech Republic)

Model - HOV-63

Max. Stroke Length - 630 mm

Table Diameter - 1100 mm

Longitudinal Travel - 1000 mm

Cross Travel - 850 mm

Height between Table to Machine Body - 755 mm

Distance between Toolhead edge to Column - 1100 mm

Max. Distance between Table Center to Column - 1650 mm

Stroke Rate - 7 strokes/min to 45 strokes/min

Feed Travel Rate - 0.1 mm/stroke to 2.5 mm/stroke

Weight of the Machine - 9.50 tons (approximately)

Head Rotation - +10 degree to -10 degree

- Feed & Rapid Travel on Table Rotation and on Cross & Longitudinal Travels.

- Machine is in excellent working condition.

Video of the Machine -

https://youtu.be/fl7Cf9v5GAU

Versatile Industrial Performance

The HOV-63 slotting machine is designed for rigorous industrial applications, providing exceptional flexibility with adjustable stroke, variable spindle speeds, and a rotary table that accommodates diverse metal components. It handles heavy parts up to 500 kg with ease and is optimized for slotting, grooving, and internal keyway cutting, making it an excellent choice for workshops seeking reliability and consistent results.

Robust Design and Construction

Constructed with a rigid box frame and hardened guideways, this machine ensures structural integrity and long-term durability. The automatic lubrication and integrated coolant system enhance performance and prevent excessive wear, while the surface is painted for added protection. With dimensions suited for most industrial floors, it offers stable operation even when tackling demanding machining tasks.

Precision and Ease of Operation

The semi-automatic operation, paired with manual switch or lever controls, ensures high accuracy and straightforward use for operators. The adjustable stroke and multiple grease nipple points facilitate optimal customization for each job, while the systems robust control guarantees both operator safety and efficient workflow.

FAQs of TOS Czech HOV-63 Stroke Heavy Duty Slotting Machine:

Q: How do I adjust the stroke length on the TOS Czech HOV-63 slotting machine?

A: The machine is equipped with an adjustable reciprocating ram, allowing you to set the stroke length up to 630 mm. Adjustments can be made using the control lever and settings indicated on the panel, enabling precision for different workpiece requirements.

Q: What types of metalworking tasks can this machine handle efficiently?

A: The HOV-63 is ideal for slotting, grooving, and internal keyway cutting in a wide assortment of metallic components. Its variable spindle speed, adjustable stroke, and rotary table make it suitable for custom or high-precision work in industrial workshops.

Q: When should the lubrication and coolant systems be maintained?

A: Routine maintenance of the automatic lubrication system and coolant pump should follow your workshops regular schedule. Check grease nipple points and fluid levels before each operating shift to ensure smooth and reliable performance.

Q: Where is the TOS Czech HOV-63 typically used?

A: This heavy-duty slotting machine is primarily installed in industrial metal workshops, fabrication units, and manufacturing plants, especially where robust slotting and grooving capabilities are critical for production.

Q: What are the benefits of using a rotary table with 360 rotation on this machine?

A: A 360 rotary table enhances the machines versatility by permitting precise angular adjustments and multi-directional slotting operations on complex or irregularly-shaped metal parts, reducing the need for multiple setups.

Q: How does the manual control system impact operation?

A: The manual switch and lever control system offers operators direct command over machine functions, providing flexibility and responsiveness when adjusting stroke or table movements, and ensuring precision during intricate machining tasks.

Q: What safety and performance features are included in the HOV-63?

A: Key features include a rigid box frame for stability, automatic lubrication, coolant pump for temperature control, hardened guideways for accuracy, and multiple grease points to ensure longevity, all combining to deliver consistent, high-quality results in demanding environments.
