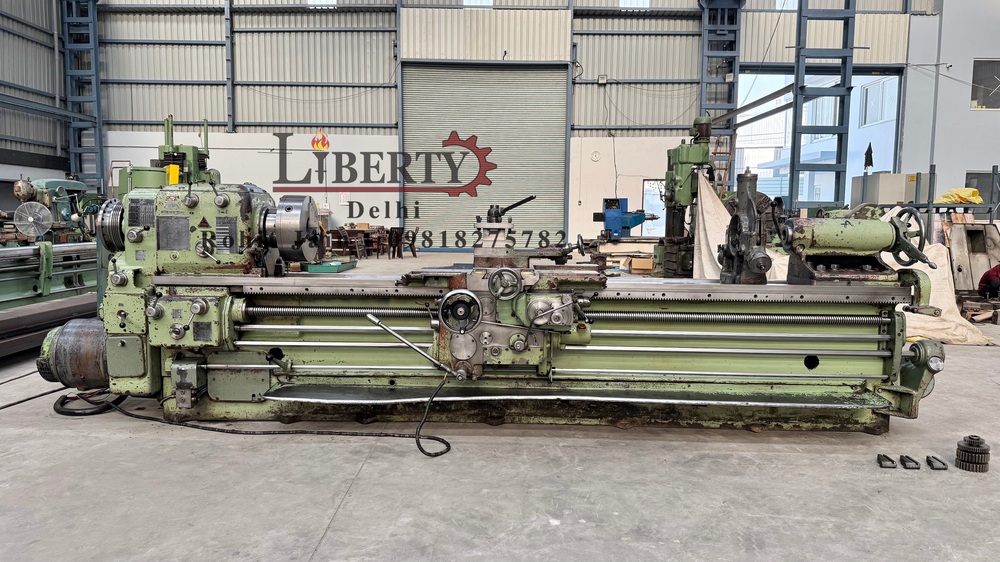

TOS Czech SU-63 / 2750 Heavy Duty Lathe Machine

Name: TOS Czech SU-63 / 2750 Heavy Duty Lathe Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TOS Czech SU-63 / 2750 Heavy Duty Lathe Machine Specification

Product Type
Heavy Duty Lathe Machine

Material
Cast Iron

Cutting Thickness
Up to 15 mm (varies by operation)

Cutting Speed
6.3 to 1250 RPM (variable)

CNC Or Not
Not CNC (Conventional)

Automatic Grade
Manual

Control System
Manual

Max. Swing Diameter
630 mm

Voltage
415 V, 3 Phase

Weight (kg)
4500 kg (Approx)

Dimension (L*W*H)
4750 x 1380 x 1660 mm

Capacity
High Production, Heavy Duty

Feature
Robust Structure, Precision Engineering, Long Bed Length

Color
Standard Grey/Green

Chuck Size
400 mm

Bed Width
400 mm

Distance Between Centers
2750 mm

Tool Post Type
4-way

Coolant Pump
Included

Tailstock Quill Travel
250 mm

Main Motor Power
7.5 kW

Spindle Bore
72 mm

Spindle Speeds
18 (6.3 to 1250 RPM)

Lead Screw Diameter
40 mm

Thread Cutting Range
Metric & Imperial (various pitches)

TOS Czech SU-63 / 2750 Heavy Duty Lathe Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About TOS Czech SU-63 / 2750 Heavy Duty Lathe Machine

Make - TOS (Czech Republic)

Model - SU-63

Center Height - 315 mm

Max. Length of Job - 2750 mm

Max. Diameter of Job over Bed - 630 mm

Max. Diameter over Cross-Slide - 360 mm

Spindle Speeds - 8 rpm to 1180 rpm

Bed Width - 565 mm

Chuck Diameter - 400 mm

Spindle Bore - 60 mm

Swing Diameter near Chuck - 700 mm

- Complete with 3-point Job Steady.

- With Motorised Rapid Travels on the Carriage & Cross-Slide.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/yjrDccMGihw

Engineered for Precision and Strength

The TOS Czech SU-63 / 2750 Lathe is designed for demanding machining environments requiring both large capacity and high accuracy. Its sturdy cast iron frame and wide bed enhance stability, significantly reducing vibrations during heavy-duty cutting operations. This ensures high-quality finishes even on tough metals, making it a reliable choice for industrial workshops and manufacturing plants.

Versatile Operations and Threading

This lathe accommodates both metric and imperial threading, supporting diverse manufacturing requirements. Its 18-speed spindle allows for quick adaptation to various material types and thicknesses, while the 4-way tool post enables versatile tooling changes. With a maximum swing diameter of 630 mm and up to 15 mm cutting thickness, it covers a wide range of turning and facing operations.

User-Friendly Manual Control

Operating the SU-63 is straightforward, thanks to its intuitive manual control system. The machine is suited for both skilled machinists and workshops focused on heavy-duty, non-CNC operations. The inclusion of a coolant pump and a robust tailstock with 250 mm quill travel further enhances the machining process by improving precision and extending tool life.

FAQ's of TOS Czech SU-63 / 2750 Heavy Duty Lathe Machine:

Q: How is the TOS Czech SU-63 / 2750 lathe machine operated?

A: The SU-63 / 2750 heavy duty lathe operates manually, not via CNC. Its user-friendly control system is ideal for experienced machinists who require hands-on operation for high-precision, custom, or low- to medium-volume production tasks.

Q: What types of materials can this lathe machine handle?

A: Thanks to its heavy-duty cast iron construction, high power motor, and robust spindle, the TOS Czech SU-63 can machine a variety of metals, including steel, cast iron, and non-ferrous materials. Cutting thickness can reach up to 15 mm depending on the operation.

Q: When is this lathe most beneficial for production?

A: This lathe is particularly advantageous for jobs requiring long workpieces, frequent threading changes, or high-volume production of large components. Its 2750 mm center distance and 630 mm swing diameter make it suitable for heavy industrial and general engineering workshops.

Q: Where can this lathe be used effectively?

A: The TOS Czech SU-63 is suitable for deployment in industrial sites such as manufacturing facilities, repair workshops, and tool rooms that need robust, precise, and reliable turning machines for heavy-duty operations.

Q: What are the benefits of the coolant pump included with this machine?

A: The included coolant pump reduces heat generation during machining, improving surface finish and increasing tool life. This enables operators to maintain optimal cutting conditions, especially during extended or demanding tasks.

Q: How does this lathe support different threading requirements?

A: Equipped with both metric and imperial threading capabilities and a variable lead screw, the SU-63 / 2750 accommodates a wide range of thread pitches, providing flexibility for different component specifications.
