TOS Hostivar 2Ud P2 Universal Cylindrical Grinder Machine

Name: TOS Hostivar 2Ud P2 Universal Cylindrical Grinder Machine
Brand: Liberty Metal & Machines Private Limited
Price: 80.0 INR
Availability: InStock

Price 80.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TOS Hostivar 2Ud P2 Universal Cylindrical Grinder Machine Specification

Product Type
Universal Cylindrical Grinder Machine

General Use
Precision grinding of external and internal cylindrical surfaces

Material
Cast Iron Structure

Type
Horizontal

Capacity
320 mm (Grinding Diameter)

Weight (kg)
3200 kg

Computerized
No

Automatic
Semi-Automatic

Control System
Manual / Hand Operated

Drive Type
Electric Motor Driven

Grinding Diameter
320 mm

Grinding Length
1250 mm

Spindle Speed
20100 rpm (workpiece spindle)

Grinding Wheel Size
400 x 50 x 203 mm

Voltage
400 V, 3 Phase

Dimension (L*W*H)
3600 x 1850 x 1450 mm

Feature
Heavy Duty Construction, Precision Mechanism, High Rigidity

Color
Grey & White

External Grinding Wheel Peripheral Speed
35 m/s

Tailstock
Manual, Adjustable

Internal Grinding Spindle Speed
12000 rpm

Lubrication System
Centralized Automatic Lubrication

Machine Condition
Used / Reconditioned

Table Travel
1400 mm

Coolant System
Provided

Centers Height Over Bed
180 mm

Table Swivel Range
+/- 6 degrees

Chuck Diameter
200 mm (Optional)

Installation and Training
Available on Request

Max Job Weight Between Centers
500 kg

TOS Hostivar 2Ud P2 Universal Cylindrical Grinder Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About TOS Hostivar 2Ud P2 Universal Cylindrical Grinder Machine

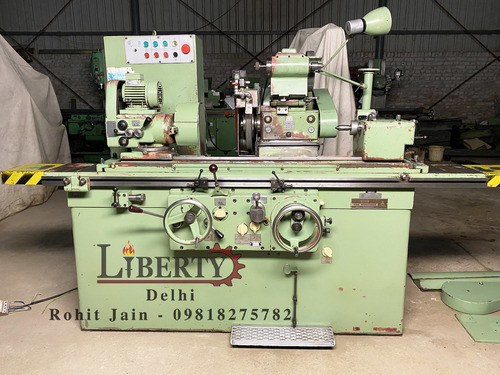

Make - TOS Hostivar (Czech Republic)

Model - 2Ud P2

Center Height - 150 mm

Max. Job Diameter - 290 mm

Max. Length of Job - 750 mm

Grinding Wheel Size - Diameter 350 mm x 50 mm Width

Work-Head Speeds - 38 rpm to 380 rpm

- Equipped with Internal Grinding Attachment.

- Features like Auto-Cut, Plunge Grinding, Delay, Auto-Slow etc.

- Equipped with Hydraulic Tail-Stock.

- Complete with 2-Point Steady, 3-point Steady, Wheel Dresser etc.

- Complete with Coolant Tank & Pump.

- Operating Manual & Electrical Drawings are available.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/nqW4rjby4yw

Precision Grinding Capabilities

With a maximum grinding diameter of 320 mm and a grinding length of 1250 mm, the TOS Hostivar 2Ud P2 is tailored for high-precision applications. Its ability to handle both external and internal jobs ensures versatility across various manufacturing needs, making it ideal for tool rooms and production environments.

Robust Construction for Heavy-Duty Tasks

Constructed from cast iron, this grinder ensures stability and low vibration during operation. The heavy-duty build, combined with a centralized automatic lubrication system and high rigidity, offers long-term performance and minimal maintenance, supporting weights up to 500 kg between centers.

Flexible and User-Friendly Operation

The machine operates with manual controls and offers features such as adjustable tailstock and a swiveling table, allowing flexibility for different workpieces and grinding angles. The optional chuck and easy access features enhance usability, while semi-automatic mechanisms streamline repetitive tasks.

FAQs of TOS Hostivar 2Ud P2 Universal Cylindrical Grinder Machine:

Q: How does the TOS Hostivar 2Ud P2 grinder ensure precise and accurate grinding?

A: This machine uses a cast iron structure for stability, along with a high-quality spindle capable of 12000 rpm for internal grinding. The table swivel range of +/- 6 degrees and precise manual controls enable fine adjustments for accurate results.

Q: What types of materials and applications is this cylindrical grinder suitable for?

A: Its rigid construction and advanced grinding mechanism make it ideal for precision grinding of both external and internal cylindrical surfaces on materials such as hardened steel, cast iron, and similar metals typically used in industrial applications.

Q: When should the coolant and lubrication systems be maintained?

A: Regular maintenance is advised to ensure optimal performance. The centralized automatic lubrication system reduces manual intervention, but periodic checks and coolant replacement are recommended according to usage intensity and manufacturer guidelines.

Q: Where can installation and training for this machine be arranged?

A: Professional installation and operator training are available upon request. Arrangements can be made directly with the manufacturer, supplier, or authorized service provider, ensuring safe and efficient machine setup.

Q: What is the process for setting up this universal cylindrical grinder?

A: To set up the machine, position it securely, connect to the appropriate 400 V, 3 Phase power source, fill the coolant reservoir, and follow calibration guidelines for table and spindle settings. Operator training is highly recommended for optimal and safe operation.

Q: How does the semi-automatic operation benefit users compared to fully manual systems?

A: Semi-automatic features streamline repetitive grinding processes while still allowing hands-on control for finetuning. This combination enhances efficiency, reduces operator fatigue, and maintains high-precision output even during longer working cycles.
