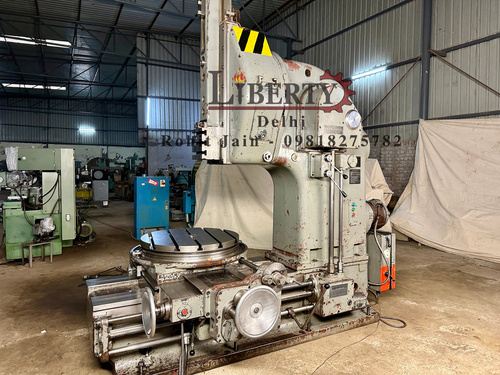

TOS HOV 40 Slotting Machine

Get a Price/Quote

MOQ : 1 Piece

TOS HOV 40 Slotting Machine Specification

Accuracy
High Precision

Lubricating System
Centralized

Frame Type
Robust Cast Iron

Model No
HOV 40

Control System
Manual/Mechanically Controlled

Features
Heavy Duty, Rigid Construction, Easy Operation

Cooling System
Fitted with Coolant Pump

Operating Temperature
Ambient

Power Rating
3.7 kW

Frequency
50 Hz

Production Capacity
High

Drive
Geared Drive

Motor Power
5 HP

Noise Level
Low

Voltage
415 V

Machine Type
Vertical Slotting

Product Type
Slotting Machine

Technology
Conventional

Power Source
Electric

Operating Type
Semi-Automatic

Power
5 HP

Pressure
Standard

Surface Treatment
Painted

Dimension (L*W*H)
2200 x 1000 x 1950 mm

Weight (kg)
2760 kg

Color
Green

Usage & Applications
Keyway Slotting, Internal Gear Cutting, Splines, etc.

Maximum Work Table Diameter
630 mm

Maximum Slotting Height
400 mm

Spindle Bore
50 mm

Maximum Cross Travel
300 mm

Table Cross Travel
630 mm

Coolant Tank Capacity
30 litres

Table Feed
Automatic

Maximum Longitudinal Travel
500 mm

Standard Accessories
Motor, Electricals, Coolant Pump, Base Plate, Operation Manual

Table Rotation
360

Ram Adjustment
320 mm

Main Motor Speed
1440 rpm

About TOS HOV 40 Slotting Machine

Make - TOS (Czech Republic)

Model - HOV 40
Slotting Height - 400 mm
Table diameter - 800 mm
Longitudinal Travel of Table - 800 mm
Transversal Travel of Table - 600 mm
Weight of Job - 2,500 kg.
Machine Weight - 7.25 tons (approx.)
Machine is in excellent working condition.

Versatile Industrial Performance

The TOS HOV 40 Slotting Machine caters to a wide array of applications, including keyway slotting, internal gear cutting, and spline forming. Engineered for high output and precise operation, it suits manufacturing partners seeking dependable and robust equipment. Its 400 mm slotting height and ample table dimensions facilitate work with large or intricate components.

Precision Engineering for High Output

Equipped with a geared drive and a 5 HP electric motor, the machine achieves 1440 rpm for smooth cutting. Centralized lubrication and a fitted coolant system minimize downtime, while features like a 360 rotating table enhance setup flexibility. These attributes ensure efficiency and accuracy during continuous production cycles.

User-Friendly Operation and Maintenance

The HOV 40s semi-automatic mode and manual mechanical controls simplify operation for operators. Standard accessories including a motor, electricals, coolant pump, and a base plate provide turnkey setup, while an easy-to-follow operation manual supports optimal usage and long-term reliability. Its painted, heavy-duty cast iron frame resists wear even in demanding shop environments.

FAQs of TOS HOV 40 Slotting Machine:

Q: How does the TOS HOV 40 Slotting Machine ensure high-precision slotting?

A: The TOS HOV 40 is built with a rigid cast iron frame, accurate mechanical controls, and a robust geared drive, delivering high-precision slotting for keyways, gears, and splines. Centralized lubrication, stable table feed, and high-quality components further enhance machining accuracy.

Q: What types of applications is this slotting machine suitable for?

A: This machine is ideal for industrial tasks such as keyway slotting, internal gear cutting, and producing splines. It handles various components, thanks to a generous slotting height and adjustable work table, making it suitable for heavy-duty manufacturing and frequent production runs.

Q: When is regular maintenance recommended for the TOS HOV 40?

A: Routine maintenance should follow the operational guidelines provided in the operation manual. Regular lubrication checks, cleaning of the coolant tank, and inspection of mechanical parts help maximize accuracy and extend equipment life. Establishing a periodic schedule ensures ongoing reliability.

Q: Where can the TOS HOV 40 Slotting Machine be installed?

A: The HOV 40 is designed for installation in industrial workshops or manufacturing facilities with adequate space (2200 x 1000 x 1950 mm) and a three-phase 415 V/50 Hz power supply. Its heavy-duty construction enables stable, vibration-free operation on standard factory floors.

Q: What is the operating process for using the machine?

A: Operators set up the workpiece on the 360 rotating table, adjust the slotting height, and select machining parameters using manual/mechanical controls. The semi-automatic feed, coolant system, and clear operation manual streamline the machining process and support efficient, accurate production.

Q: How does the integrated cooling and lubrication system benefit production?

A: The fitted coolant pump and centralized lubricating system keep components cool and properly oiled during extended operation, reducing tool wear and thermal distortion. This ensures smoother machining, higher quality finishes, and reliable long-term performance.
