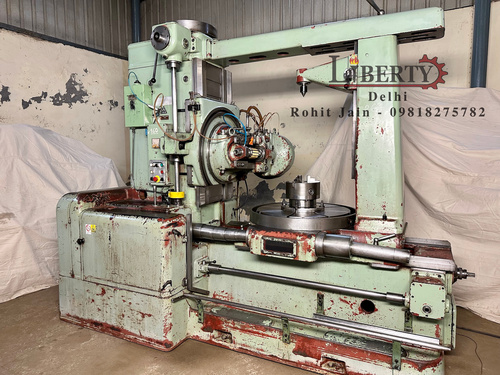

TOS OF 71 Gear Hobbing Machine

Name: TOS OF 71 Gear Hobbing Machine
Brand: Liberty Metal & Machines Private Limited
Price: 10000 INR
Availability: InStock

Price 10000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TOS OF 71 Gear Hobbing Machine Specification

Voltage
380 V

Feature
High Precision, Sturdy Construction

Dimension (L*W*H)
2500 mm x 1450 mm x 1800 mm

Capacity
Gear Diameter up to 710 mm

Color
Standard Grey

Used For
Gear Cutting

Output
High Production Rate

Machine Type
Gear Hobbing Machine

Power
7.5 kW

Condition
Used

Weight
4000 Kg (Approx)

Spindle Speed Range
40200 rpm

Coolant System
Yes

Hob Head Swivel
45

Lubrication System
Automatic

Main Motor Power
7.5 HP

Table Diameter
630 mm

Control Type
Conventional

Max Gear Width
400 mm

Min Module
1 Module

Application
Automobile, Industrial Gear Manufacturing

Model
OF 71

Max Module
10 Module

Table Bore Diameter
100 mm

Hob Slide Travel
400 mm

Distance Between Work Table and Arbor
75475 mm

About TOS OF 71 Gear Hobbing Machine

Make - TOS (Czech Republic)

Model - OF 71

Max. Module Capacity - 7 Modules

Max. Gear Diameter - 710 mm

Max. Width of Gear - 335 mm

Number of Teeth - 8 to 300

Max. Dimensions of Hob Cutter - Diameter 195 mm x 220 mm Length

Table Diameter - 630 mm

Max. Gear Diameter (with Support) - 500 mm

Hob Speeds - 40 rpm to 315 rpm

Weight of Machine - 7 Tons Approx.

- Machine is complete with Change Gears etc.

- Operating Manual, Electrical Drawings etc. are available.

- Machine can be modified to work in auto-cycle mode.

- Machine is in excellent working condition.

Video link - https://youtu.be/sffJT_dwJEM

Superior Build for Consistent Performance

Engineered in the Czech Republic, this gear hobbing machine is crafted for heavy-duty production environments. Its 4000 kg weight and compact dimensions (2500 mm x 1450 mm x 1800 mm) assure durability and stability during operation, making it an ideal choice for exporters, manufacturers, and suppliers seeking reliable performance.

Versatility Across Gear Manufacturing

The TOS OF 71 is suitable for a broad range of gear cutting applications, accommodating both small (1 module) and large (10 module) projects. The spacious gear width and table diameter allow for the production of various gear sizes efficiently, ideal for batch and industrial gear manufacturing.

Ease of Operation and Maintenance

With its conventional control system, the TOS OF 71 offers straightforward operation for experienced machinists. The inclusion of an automatic lubrication system and effective coolant features minimizes manual intervention and extends the life of machine components, reducing downtime and maintenance costs.

FAQs of TOS OF 71 Gear Hobbing Machine:

Q: How does the TOS OF 71 Gear Hobbing Machine contribute to high production rates?

A: The TOS OF 71 is engineered with a powerful 7.5 HP motor, a hob slide travel of 400 mm, and a spindle speed ranging from 40 to 200 rpm. These features allow for rapid, precise gear cutting operations, leading to high production rates and improved throughput for industrial manufacturing environments.

Q: What gear sizes and types can be processed using the TOS OF 71?

A: This machine can process gear diameters up to 710 mm, with modules between 1 and 10 module, and gear widths up to 400 mm. The 45 hob head swivel enables the cutting of various gear profiles, making it suitable for producing a wide range of industrial gears, especially for automobile applications.

Q: When should I consider using this gear hobbing machine over others?

A: The TOS OF 71 is ideal when high precision, sturdy construction, and versatility are required for gear cutting tasks. Its robust build and adaptability make it particularly advantageous for factories dealing with diverse gear dimensions and types within the 110 module range.

Q: Where is the TOS OF 71 typically used?

A: This gear hobbing machine is mainly found in industrial settings such as automotive gear manufacturing plants, large-scale gear workshops, and factories needing reliable gear production. Its sturdy design makes it well suited for environments requiring sustained heavy-duty use.

Q: What is the process for operating the TOS OF 71?

A: Operation involves mounting the gear blank on the work table, setting the required module, width, and gear diameter, and adjusting the hob head. The conventional controls are then used to adjust spindle speed and hob slide travel as necessary. The automatic lubrication and coolant systems ensure continuous and safe operation.

Q: What are the key benefits of using the TOS OF 71 Gear Hobbing Machine?

A: This machine offers high precision, a large working capacity, and sturdy construction. The integrated automatic lubrication and coolant systems reduce maintenance needs, while its high output ensures efficiency for batch or high-volume gear production. Its versatility and reliability make it a sound investment for industrial manufacturers.
