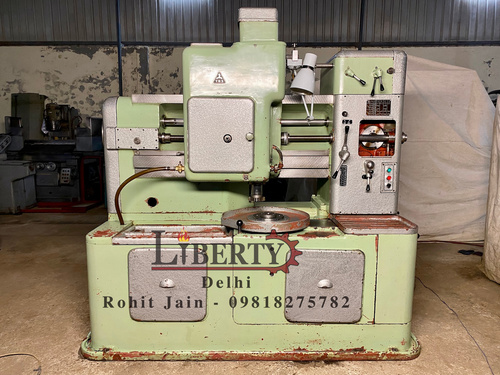

TOS OHO 20 Gear Shaper Machine

Name: TOS OHO 20 Gear Shaper Machine
Brand: Liberty Metal & Machines Private Limited
Price: 20000 INR
Availability: InStock

Price 20000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TOS OHO 20 Gear Shaper Machine Specification

Used For
Shaping internal and external gears

Output
Single phase, Mechanical output

Weight
Approx. 3500 kg

Power
4 kW

Condition
Used

Capacity
Maximum gear diameter: 200 mm

Dimension (L*W*H)
2100 mm x 1370 mm x 2370 mm

Color
Standard Grey

Feature
High precision, Sturdy construction, Reliable performance

Voltage
415 V

Machine Type
Gear Shaper Machine

Cutting Speed
Up to 350 strokes/min

Max Gear Width
70 mm

Automation Grade
Manual

Number of Strokes
Variable

Main Motor
Approx. 5 HP

Feed Range
0.075 mm to 0.60 mm/rev

Clamping Type
Mechanical

Working Condition
Excellent working condition

Table Bore Diameter
76 mm

Country of Make
Czech Republic

Stroke Length
90 mm

Table Diameter
220 mm

Max Module
6 module

TOS OHO 20 Gear Shaper Machine About

Make - TOS (Czech Republic)

Model - OHO 20

Max. Module - 4 module

Max. Gear Diameter - 200 mm

Max. Width of Gear - 50 mm

Stroke Rate - 200 strokes/min to 630 strokes/min

- With Motorised Rapid Rotation of the Table.

- Machine is complete with Change Gears.

- Machine is in excellent working condition.

Video Link - https://youtu.be/ZwHJCxWgbBQ

Superior Gear Shaping Precision

Built for high accuracy, the TOS OHO 20 Gear Shaper Machine excels in producing both internal and external gears efficiently. Its solid construction ensures minimal vibration, resulting in precise gear shaping and consistent output quality over time.

Robust Construction and Dependability

Weighing approximately 3500 kg and finished in standard grey, this gear shaper is constructed to withstand rigorous industrial environments. Its mechanical clamping and high-grade components contribute to long-term reliability and stability in operation.

Adaptability and Performance

With a versatile max module of 6 and a gear width of up to 70 mm, the TOS OHO 20 is ideal for manufacturing a wide variety of gears. Variable stroke settings and feed rates allow operators to tailor operation parameters to specific requirements, enhancing overall productivity.

FAQs of TOS OHO 20 Gear Shaper Machine:

Q: How is the TOS OHO 20 Gear Shaper Machine operated?

A: This machine operates manually, requiring a skilled operator to manage gear shaping processes, table adjustments, and clamping. Its intuitive mechanical controls facilitate straightforward operation for various gear production tasks.

Q: What types of gears can be shaped using this machine?

A: The TOS OHO 20 is capable of shaping both internal and external gears with high precision, accommodating workpieces up to 200 mm in diameter and with module sizes up to 6.

Q: When is this gear shaper most beneficial in manufacturing?

A: This machine is most advantageous for medium to large batch production where high precision and versatility are required, especially in industries demanding robust and reliable gear shaping, such as automotive or machinery manufacturing.

Q: Where is the TOS OHO 20 Gear Shaper Machine manufactured?

A: The TOS OHO 20 is manufactured in the Czech Republic, known for producing high-quality and durable industrial machinery.

Q: What is the process of clamping workpieces on this machine?

A: Workpieces are secured on the table using a mechanical clamping system, ensuring firm and stable positioning during the gear shaping process for improved accuracy and safety.

Q: How does the feed range and cutting speed affect its usage?

A: The adjustable feed range (0.075 to 0.60 mm/rev) and variable cutting speed (up to 350 strokes/min) allow operators to optimize production rates and surface finishes depending on the material and gear specifications.

Q: What are the key benefits of using the TOS OHO 20 Gear Shaper Machine?

A: Key advantages include high-precision output, sturdy construction for long-term durability, flexible gear shaping capability, and reliable performance due to its excellent mechanical design and working condition.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

More Products in Gear Shapers Category

Stanko 5B161 Heavy Duty Gear Shaper Machine

Price 100000 INR / Piece

Minimum Order Quantity : 1 Piece

Machine Type : Heavy Duty Gear Shaper Machine

Weight : Approx. 7000 kg

Output : High performance, continuous operation

Used For : Cutting internal and external gears, splines, and spur gears

Get a Price/Quote

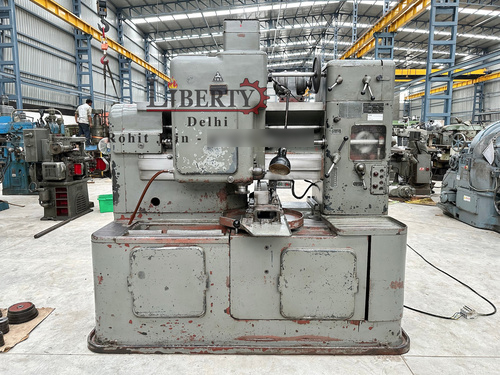

Gear Shaper with Rack Cutting Attachment
