TOS Slotting Machine
TOS Slotting Machine

TOS Slotting Machine

MOQ : 1 Piece

TOS Slotting Machine Specification

  • Lubricating System
  • Centralized Lubrication
  • Motor Power
  • 3 HP
  • Control System
  • Manual/Hand Lever
  • Accuracy
  • 0.03 mm
  • Frequency
  • 50 Hz
  • Features
  • Robust construction, high precision, smooth operation
  • Machine Type
  • Slotting Machine
  • Model No
  • TOS
  • Power Rating
  • 2.2 kW
  • Drive
  • Electric Motor
  • Frame Type
  • Heavy Duty
  • Cooling System
  • Coolant Provided
  • Voltage
  • 415 V
  • Production Capacity
  • Varies as per operation
  • Noise Level
  • 80 dB(A)
  • Operating Temperature
  • 5C to 45C
  • Product Type
  • Slotting Machine
  • Technology
  • Conventional
  • Power Source
  • Electric
  • Operating Type
  • Semi-Automatic
  • Power
  • 3 HP
  • Surface Treatment
  • Paint Coated
  • Dimension (L*W*H)
  • 1200 x 1100 x 1700 mm
  • Weight (kg)
  • Approx. 1000 kg
  • Color
  • Green
  • Usage & Applications
  • Cutting slots, keyways, and grooves in metalwork
  • Main Accessories
  • Vise, Tools, Operation Manual
  • Table Diameter
  • 450 mm
  • Phase
  • Three Phase
  • Speed Levels
  • Variable/Multiple
  • Max Workpiece Height
  • 400 mm
  • Maximum Slotting Stroke
  • 200 mm
  • Packing Type
  • Wooden Packaging
  • Cross Table Movement
  • 250 mm
  • Required Floor Space
  • 1400 x 1200 mm
  • Ram Adjustment
  • 80 mm
  • Table Load Capacity
  • 300 kg
  • Longitudinal Table Movement
  • 250 mm
  • Table Swivel Range
  • +/- 360 degrees
  • Main Spindle Travel
  • 200 mm

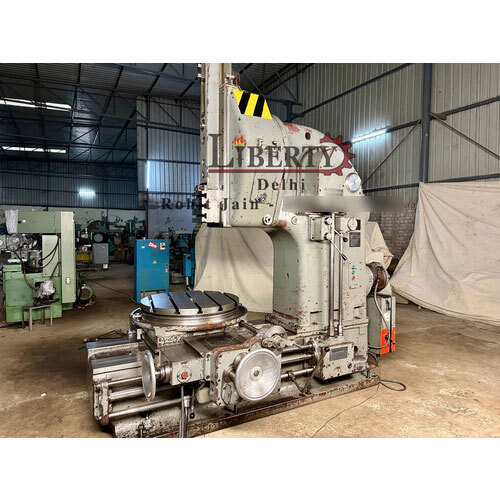

About TOS Slotting Machine

Make - TOS (Czech Republic)

  • Model - HOV40
  • Max. Length of Stoke - 440 mm
  • Table Diameter - 800 mm
  • Stoke Rate - 11.2 strokes/min to 71 strokes/min
  • Longitudinal Travel of Table - 1000 mm
  • Cross Travel of Table - 600 mm
  • Automatic Rotation of Table in Feed.
  • Rapid & Feed Travel in table rotation & table movement.
  • Weight of Machine - 7.25 tons.
  • Machine is in excellent working condition.


Heavy-Duty Precision Slotting

The TOS Slotting Machine is engineered for precision slotting of metals. Its heavy-duty frame and smooth ram adjustment ensure stable operation and high accuracy, making it suitable for producing intricate grooves and keyways in both small and large metal parts.


User-Friendly and Versatile Operation

With a semi-automatic system controlled by a manual hand lever, operation is straightforward for skilled operators. Adjustable stroke and table movements, coupled with variable speeds, permit customization based on workpiece characteristics, supporting various industrial applications.


Efficient Cooling and Lubrication Systems

A built-in coolant supply and centralized lubrication keep the machine running at optimum performance. These systems reduce wear, extend machine life, and ensure accurate work even during extended shifts.

FAQs of TOS Slotting Machine:


Q: How does the TOS Slotting Machine ensure high precision during operation?

A: The machine features a solid frame with robust construction, precise longitudinal and cross-table movements, and ram adjustment. Its accuracy up to 0.03 mm is maintained through a centralized lubrication system and a built-in coolant system, minimizing thermal expansion and wear.

Q: What types of applications is this slotting machine best suited for?

A: This slotting machine is ideal for cutting slots, keyways, and grooves into various metal workpieces. Its versatility makes it suitable for manufacturing, automotive, and maintenance workshops requiring precision metal cutting.

Q: When is it recommended to use the variable speed settings?

A: Variable speed settings should be adjusted based on the material hardness and specific machining process. Slower speeds are preferable for harder materials or when making intricate cuts, while higher speeds facilitate faster slotting on softer metals.

Q: Where should the TOS Slotting Machine be installed?

A: Install the machine in a stable and well-ventilated industrial workspace. Ensure the allotted floor space measures at least 1400 x 1200 mm and that power supply specifications415 V, 3-phase, 50 Hzare met for safe operation.

Q: What is the process for maintaining the machines performance?

A: Regularly lubricate via the central system, ensure the coolant is replenished, and inspect moving parts for wear. Cleaning the table and components after use preserves longevity and precision. Refer to the supplied operation manual for detailed maintenance procedures.

Q: How does the cooling system benefit industrial operations?

A: The integrated coolant system keeps components at optimal temperature, reducing heat buildup and distortion. This not only extends the life of the machine parts but also maintains machining accuracy during prolonged use.
