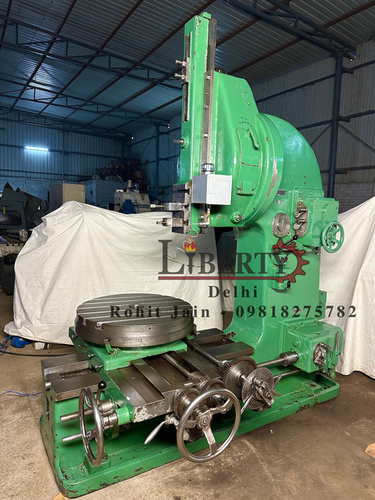

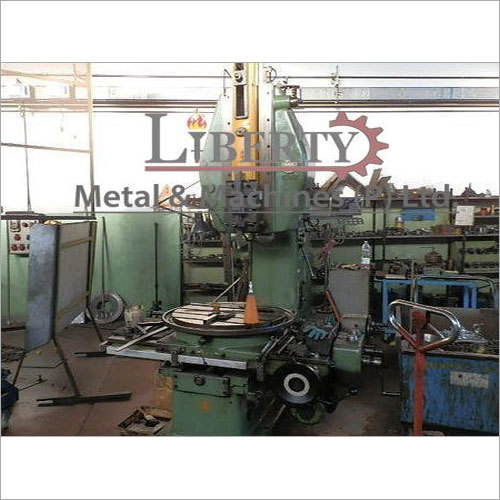

WMW 400 mm Stroke Heavy Duty Slotting Machine

Name: WMW 400 mm Stroke Heavy Duty Slotting Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

WMW 400 mm Stroke Heavy Duty Slotting Machine Specification

Power Rating
5 HP

Noise Level
Low

Motor Power
5 HP

Production Capacity
Depends on material & operator

Cooling System
Integrated Coolant System

Features
Heavy duty structure, high accuracy, rigid design, smooth operation

Lubricating System
Centralized automatic lubrication

Drive
Direct Gear Drive

Frame Type
Cast Iron Frame

Voltage
415 V

Model No
WMW 400

Control System
Manual / Mechanical Controls

Operating Temperature
Ambient (Recommended 040C)

Frequency
50 Hz

Accuracy
High precision with rigid guideways

Machine Type
Vertical Slotting

Product Type
Heavy Duty Slotting Machine

Technology
Conventional Mechanical Design

Power Source
Electric

Operating Type
Semi-Automatic

Power
5 HP

Pressure
Hydraulic Pressure: Not Applicable

Surface Treatment
Painted & Coated

Dimension (L*W*H)
Approx. 2200 x 900 x 1600 mm

Weight (kg)
Approximately 3000 kg

Color
Green

Usage & Applications
Manufacturing, Gear Cutting, Keyway Milling, Slotting of Metal Components

Spindle Speed
Variable, up to 100 rpm

Maximum Work Piece Height
600 mm

Longitudinal Table Travel
500 mm

Table Diameter
500 mm

Ram Movement Type
Vertical

Maximum Work Piece Weight
500 kg

Safety Features
Overload Protection, Emergency Stop

Slotting Tool Holder Type
Adjustable

Maximum Stroke Length
400 mm

Accessories Included
Standard Slotting Tools, Coolant Pump

Ram Adjustment
75 mm

Floor Space Required
Approx. 2.5 m x 1 m

Table Feed Range
0.11 mm/rev

ISO Certification
ISO 9001:2015 Certified

Cross Table Travel
250 mm

Painting Type
Industrial Grade Epoxy

Main Motor Type
Three Phase Induction Motor

Electrical Supply
Three Phase

Table Movement Type
Manual/Automatic

WMW 400 mm Stroke Heavy Duty Slotting Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About WMW 400 mm Stroke Heavy Duty Slotting Machine

Make - WMW (Germany)

Model - STS 400

Max. Stroke Length - 400 mm

Table Diameter - 710 mm

Cross Travel of Table - 700 mm

Longitudinal Travel of Table - 675 mm

Stroke Rate - 28 strokes/min to 90 strokes/min

Feed Rate - 0.14 mm/stroke to 1.4 mm/stroke

Height between Table & Machine Body - 540 mm

Tilting Angle of Head - +30 degree to -30 degree

- Motorised Rapid Travels on Rotation, Cross & Longitudinal Travel.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/XU3quVk7VfM

Precision Engineering for Demanding Applications

Engineered for high performance, the WMW 400 mm Slotting Machines rigid cast iron frame and precise guideways ensure accurate, repeatable results. Its versatile configuration, adjustable feed range, and direct gear drive make it ideal for applications like gear cutting, manufacturing, and keyway milling. The variable spindle speed and customizable table movement provide adaptability for diverse metalworking challenges.

User-Friendly Operation with Safety in Focus

With manual and automatic table movement, centralized automatic lubrication, and an integrated coolant system, this machine streamlines operation while minimizing maintenance. Robust safety features, including overload protection and an emergency stop, are standard, ensuring operator well-being during continuous use. Clear controls and ISO-certified construction further bolster reliability and peace of mind.

Built to Last in Industrial Environments

Finished with industrial-grade epoxy paint and resting on a solid cast iron frame, the WMW 400 offers dependable operation under demanding workshop conditions. Its low noise level and ambient temperature range compatibility enable smooth integration into most manufacturing setups, while its spacious working capacity (up to 500 kg workpieces) supports versatile use.

FAQs of WMW 400 mm Stroke Heavy Duty Slotting Machine:

Q: How does the WMW 400 mm Slotting Machine ensure high-precision slotting operations?

A: The machine uses rigid guideways, a robust cast iron frame, and adjustable feed and ram settings to deliver consistent high-precision results. Its mechanical drive and variable spindle speed allow for fine control depending on the material and operation.

Q: What materials and jobs are best suited for this slotting machine?

A: The WMW 400 can slot, mill, or cut keyways in various metals, making it ideal for manufacturing, gear cutting, and creating slots in metal components. Its sturdy frame accommodates workpieces up to 500 kg and up to 600 mm in height.

Q: Where can the WMW 400 Slotting Machine be installed, and what are its space requirements?

A: This machine is designed for workshops, manufacturing units, and industrial settings. You will need a floor space of approximately 2.5 m x 1 m, with access to a 415 V, 50 Hz three-phase electrical supply.

Q: What are the main benefits of using the WMW 400 Heavy Duty Slotting Machine?

A: Users benefit from high accuracy, smooth operation, and enhanced productivity thanks to its durable construction, automatic lubrication, and integrated coolant system. Safety features and ISO certification increase operational confidence.

Q: How do I operate and maintain the WMW 400 slotting machine?

A: Operation is manual or semi-automatic via mechanical controls. Maintenance is simplified with centralized automatic lubrication, integrated coolant, and robust overload protection. Routine checks ensure optimal performance and longevity.

Q: What accessories are included with the machine?

A: Each machine is supplied with standard slotting tools and a coolant pump, offering immediate capability for most slotting and cutting tasks as soon as the machine is installed.
