Send InquiryWMW Niles 315 mm Gear Grinding Machine
Price 45000 INR/ Piece
MOQ : 1 Piece
WMW Niles 315 mm Gear Grinding Machine Specification
- Dimension (L*W*H)
- 3500 mm x 2500 mm x 2000 mm
- Voltage
- 380 V
- Manufacturing Year
- 1992
- Output
- High accuracy ground gears
- Weight
- Approx. 10,000 kg
- Color
- Industrial Grey
- Condition
- Used
- Power
- 15 kW
- Feature
- High-precision gear grinding, sturdy cast iron construction, automatic lubrication system
- Machine Type
- Gear Grinding Machine
- Used For
- Precisely grinding and finishing gear teeth
- Capacity
- Max gear diameter: 315 mm
- Surface Finish Quality
- Ra 0.20.5 m
- Application Area
- Automotive, heavy engineering, industrial gearbox manufacturing
- Work Holding
- Hydraulic Chuck
- Spindle Speed
- Adjustable up to 1,500 RPM
- Grinding Wheel Size
- 400 mm
- Max Gear Width
- 180 mm
- Min Module
- 0.5 mm
- Model Number
- ZSTZ 315 C3
- Control System
- Manual/Servo Assisted
- Coolant System
- Integrated with filtration unit
- Lubrication Type
- Centralized automatic
- Table Travel
- Longitudinal: 500 mm
- Noise Level
- Below 80 dB under load
- Max Module
- 8 mm
WMW Niles 315 mm Gear Grinding Machine About
Make - WMW-Niles (Germany)
Model - ZSWZ 315
Min. & Max. Gear Diameter - 30 mm to 315 mm
Min. & Max. Module - 1.5 to 6 module
Max. Width of Gear - 100 mm
Max. Helix Angle - 45 Degree
Grinding Wheel Diameter - 240 mm
Ram Stroke Rate - 50 to 280 strokes/min
- Complete with change gears, & many other accessories.
- Operating Manual, Electrical Drawings etc. are available.
- Machine is in excellent working condition.
Video link - https://youtu.be/2-51grGj9DY
Efficient Gear Finishing Capabilities
The WMW Niles ZSTZ 315 C3 is engineered to provide precise grinding and finishing for a range of gears, making it ideal for manufacturers demanding accuracy and efficiency. With adjustable spindle speeds up to 1,500 RPM and a maximum gear width of 180 mm, this machine can accommodate various gear types and applications, including those needed in automotive and industrial gearboxes.
User-Friendly and Reliable Operation
Designed for both manual and servo-assisted use, the ZSTZ 315 C3 offers flexibility for operators at different skill levels. Centralized automatic lubrication and an integrated coolant system with filtration ensure longevity and consistent performance, while a hydraulic chuck simplifies gear handling and changeover.
Built for Industrial Demands
Weighing approximately 10,000 kg and constructed with durable cast iron, this gear grinder is built to last in rigorous industrial settings. Its low-noise operation (below 80 dB under load) and compact footprint (3500 mm x 2500 mm x 2000 mm) make it a practical solution for workshops where space and working conditions matter.
FAQs of WMW Niles 315 mm Gear Grinding Machine:
Q: How is the WMW Niles ZSTZ 315 C3 Gear Grinding Machine operated?
A: The ZSTZ 315 C3 can be operated manually or with servo assistance, providing flexibility for different production requirements and operator expertise.Q: What gear sizes and modules can this machine accommodate?
A: The machine can handle gear diameters up to 315 mm, with modules ranging from 0.5 mm to 8 mm, and a maximum gear width of 180 mm.Q: When is the use of the ZSTZ 315 C3 most beneficial?
A: This gear grinder is particularly advantageous for applications needing high-precision, high-quality surface finishes in automotive, gearbox manufacturing, and heavy engineering sectors.Q: Where can this machine be installed for optimal use?
A: It is suited for established workshops or industrial settings where space (3.5m x 2.5m x 2m), reliable power supply (380 V, 15 kW), and rigorous working conditions are managed.Q: What is the process for grinding gears on this machine?
A: Gears are mounted onto a hydraulic chuck, then ground using a 400 mm grinding wheel, with adjustable spindle speeds up to 1,500 RPM. Continuous coolant filtration and centralized lubrication maintain performance and finish quality.Q: How does the integrated coolant and lubrication system benefit production?
A: These systems ensure optimal thermal and mechanical stability during grinding, prolonging machine life and guaranteeing consistent, high-precision results.Q: What are the main advantages of using this gear grinding machine?
A: Key benefits include high-precision gear finishing, durable construction, low operational noise, simplified work holding, and excellent surface quality, making it a valuable asset for demanding production lines.
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Gear Grinding Machine Category

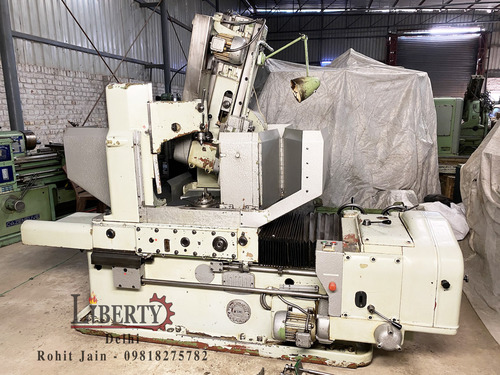

WMW Niles ZSTZ 315 Gear Grinder Machine
Price 100000 INR / Piece
Minimum Order Quantity : 1 Piece
Machine Type : Gear Grinder Machine
Feature : High accuracy, sturdy construction, efficient performance
Used For : Grinding gears with high precision
Condition : Used

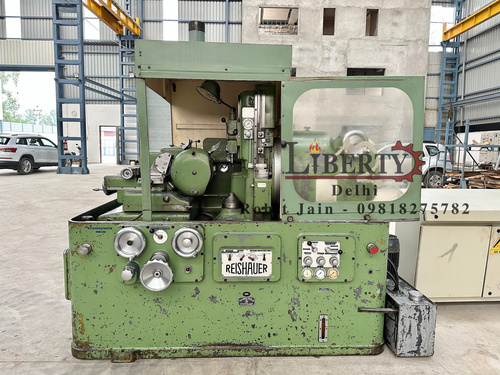

Reishauer Switzerland ZA Gear Grinding Machine
Price 100000 INR / Piece
Minimum Order Quantity : 1 Piece
Machine Type : ZA Gear Grinding Machine
Feature : High accuracy, durable build, manual feed
Used For : Precision grinding of gears
Condition : Used

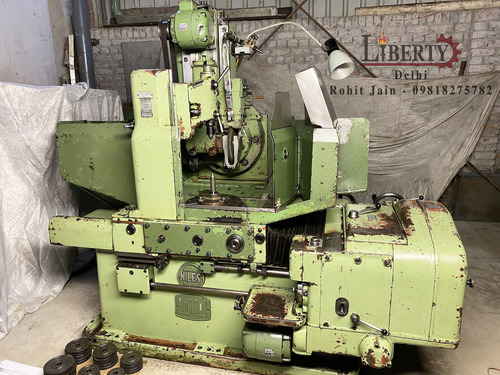

WMW Niles ZSWZ 315 Gear Grinder
