WMW-Union BFT 1106 Horizontal Boring Machine

Name: WMW-Union BFT 1106 Horizontal Boring Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

WMW-Union BFT 1106 Horizontal Boring Machine Specification

Accuracy
High Precision

Frequency
50 Hz

Production Capacity
Custom, depends on process

Drive
Electrical

Noise Level
Within Industrial Norms

Motor Power
15 kW

Lubricating System
Centralized Lubrication

Voltage
380 - 415 V

Control System
Manual / Electrical Controls

Features
Robust construction, heavy-duty design, automatic feeds, table traverses

Power Rating
15 kW

Frame Type
Heavy Cast Base

Model No
BFT 1106

Machine Type
Horizontal Boring

Operating Temperature
0C to 45C

Cooling System
Integrated Coolant System

Product Type
Horizontal Boring Machine

Technology
Conventional

Power Source
Electric

Operating Type
Automatic / Semi-Automatic

Power
15 kW

Surface Treatment
Painted

Dimension (L*W*H)
Approx. 5000 x 3500 x 2500 mm

Weight (kg)
11000 kg (Approximate)

Color
Industrial Green / Blue

Usage & Applications
Heavy-duty boring, drilling, and milling of metal components

Max Boring Diameter
320 mm

Quill Travel
700 mm

Table Size
1250 x 1400 mm

Rotary Table
Manual, 360

Electrical Requirements
380 415 V, three phase

Table Indexing
Manual

Number of Feeds
18 (Automatic, Stepless)

Table Load Capacity
4000 kg

Rapid Traverse
2000 mm/min

Longitudinal Travel (X-Axis)
1250 mm

Chuck Type
Manual / Optional Power Chuck

Main Application
Milling, Boring, Drilling

Spindle Taper
ISO 50

Main Drive Speed Range
6 1000 rpm, 18 steps

Vertical Travel (Y-Axis)
1200 mm

Safety Features
Overload protection, Emergency stop

Spindle Travel (Z-Axis)
900 mm

Spindle Diameter
110 mm

Condition
Used / Reconditioned Available

Max Drilling Diameter
80 mm

WMW-Union BFT 1106 Horizontal Boring Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

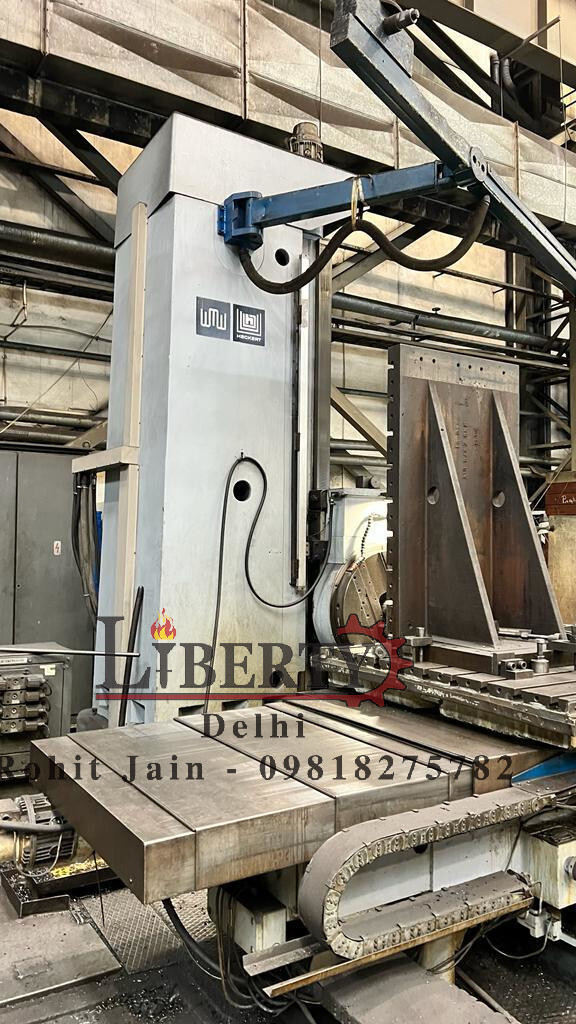

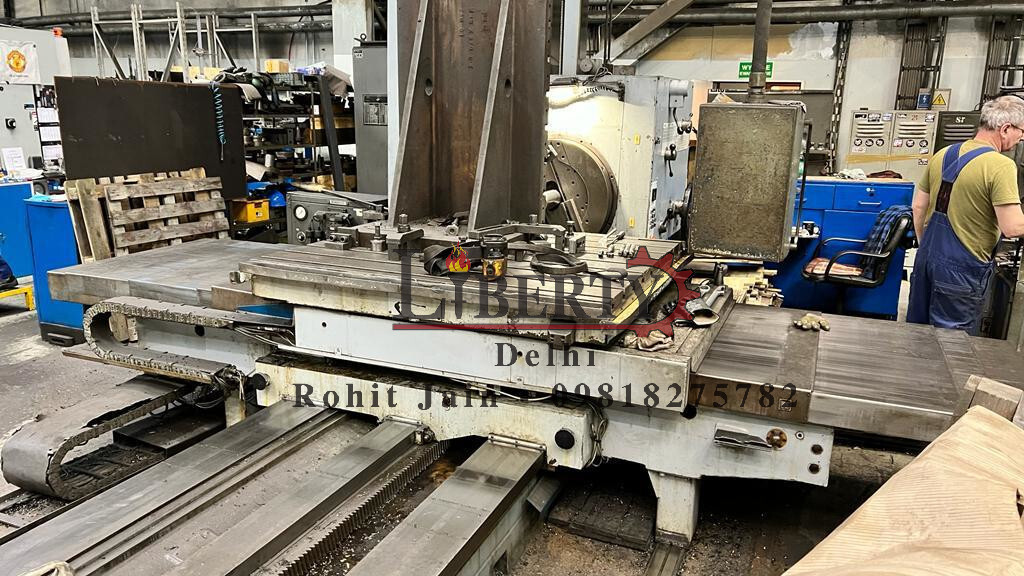

About WMW-Union BFT 1106 Horizontal Boring Machine

Make - WMW-Union (Germany)

Model - BFT 110/6

Spindle Diameter - 110 mm

Table Size - 1400 mm x 1600 mm

Spindle Taper - ISO 50

X Travel (Cross Travel) - 1950 mm

Y Travel (Vertical Travel) - 1600 mm

Z Travel (Longitudinal Travel) - 1950 mm

W Travel (Spindle Travel) - 800 mm

Table Weight Capacity - 6.30 tons

Spindle Speeds - 5.6 rpm to 1120 rpm

Facing Chuck Diameter - 700 mm

Weight of the Machine - 30 Tons

- Equipped with 3-Axis DRO.

- Equipped with Ball-Screws

- Machine is in excellent condition.

Heavy-Duty Performance and Precision

Built with a heavy cast frame and boasting an 110 mm spindle diameter, the BFT 1106 guarantees outstanding rigidity and precision. The large table supports up to 4000 kg, making it ideal for processing substantial metal workpieces with high accuracy.

Versatile Automated Operation

The machine features 18 automatic feeds and rapid traverse, covering boring, milling, and drilling. The blend of manual and electrical controls, along with stepless feed options, ensures flexible operation tailored to complex jobs in manufacturing and metal fabrication.

Advanced Safety and Reliability

Operators benefit from comprehensive safety systems, including overload protection and emergency stops. The integrated coolant and centralized lubrication further enhance machine longevity and safe, consistent performance in a wide range of industrial conditions.

FAQs of WMW-Union BFT 1106 Horizontal Boring Machine:

Q: How does the WMW-Union BFT 1106 Horizontal Boring Machine improve production efficiency?

A: The BFT 1106 accelerates workflow using its 18 automatic feeds and rapid traverse capability (up to 2000 mm/min). These features enable faster, consistent machining of heavy metal components with high accuracy, reducing cycle times and boosting output.

Q: What types of manufacturing processes can be performed on this machine?

A: This model is designed for milling, boring, and drilling applications, handling large and heavy metal parts. Its high spindle travel and load capacity make it suitable for various fabrication and machining tasks across manufacturing, repair, and engineering sectors.

Q: When should the manual rotary table be used, and what is its benefit?

A: The manual rotary table is ideal when precise angular positioning or multi-face machining is necessary. This feature allows the operator to manually index the table 360, enhancing versatility for complex component processing.

Q: Where is the WMW-Union BFT 1106 commonly installed or used?

A: It is typically found in industrial machine shops, heavy manufacturing plants, and engineering workshops where large-scale metal boring, drilling, and milling are required. Its robust build suits demanding environments handling oversized workpieces.

Q: What safety measures are included with this horizontal boring machine?

A: The machine incorporates overload protection and an emergency stop function, minimizing risks during operation. Additionally, centralized lubrication and coolant systems help prevent mechanical failures, further ensuring operator safety.

Q: How does the control system contribute to the operation of the BFT 1106?

A: The combination of manual and electrical controls affords operators precision over feed rates and spindle speeds. This flexibility aids in adapting to diverse machining requirements while maintaining consistent performance and accuracy.

Q: What are the key benefits of choosing a reconditioned BFT 1106 model?

A: Opting for a reconditioned unit provides reliable industrial-grade performance at a reduced cost. These machines undergo extensive maintenance and testing, assuring robust operation and longevity comparable to new models, while fitting budget-conscious applications.
