Cazeneuve 2000 mm Heavy Duty Lathe Machine

Send Inquiry

Request To Call Back

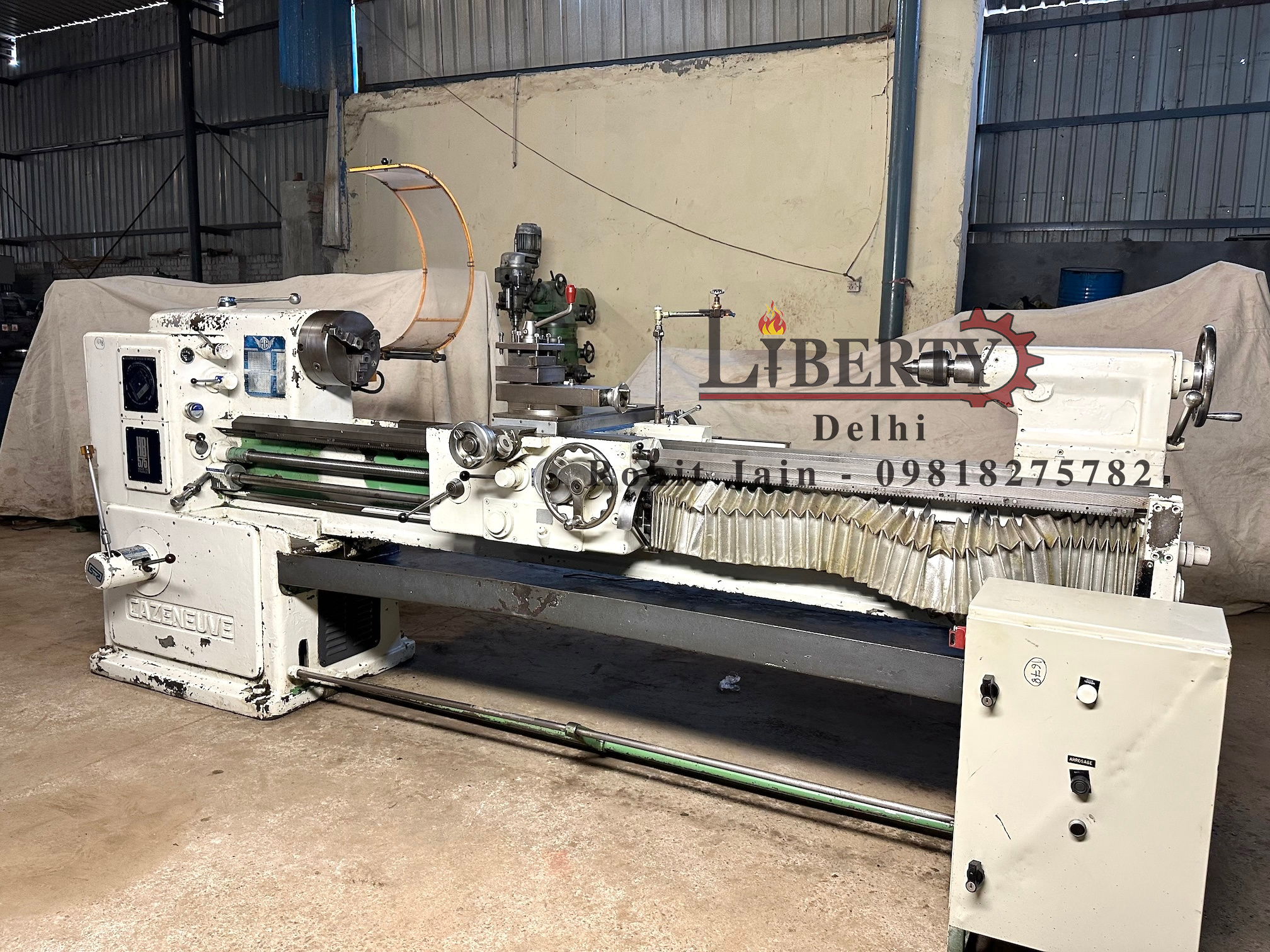

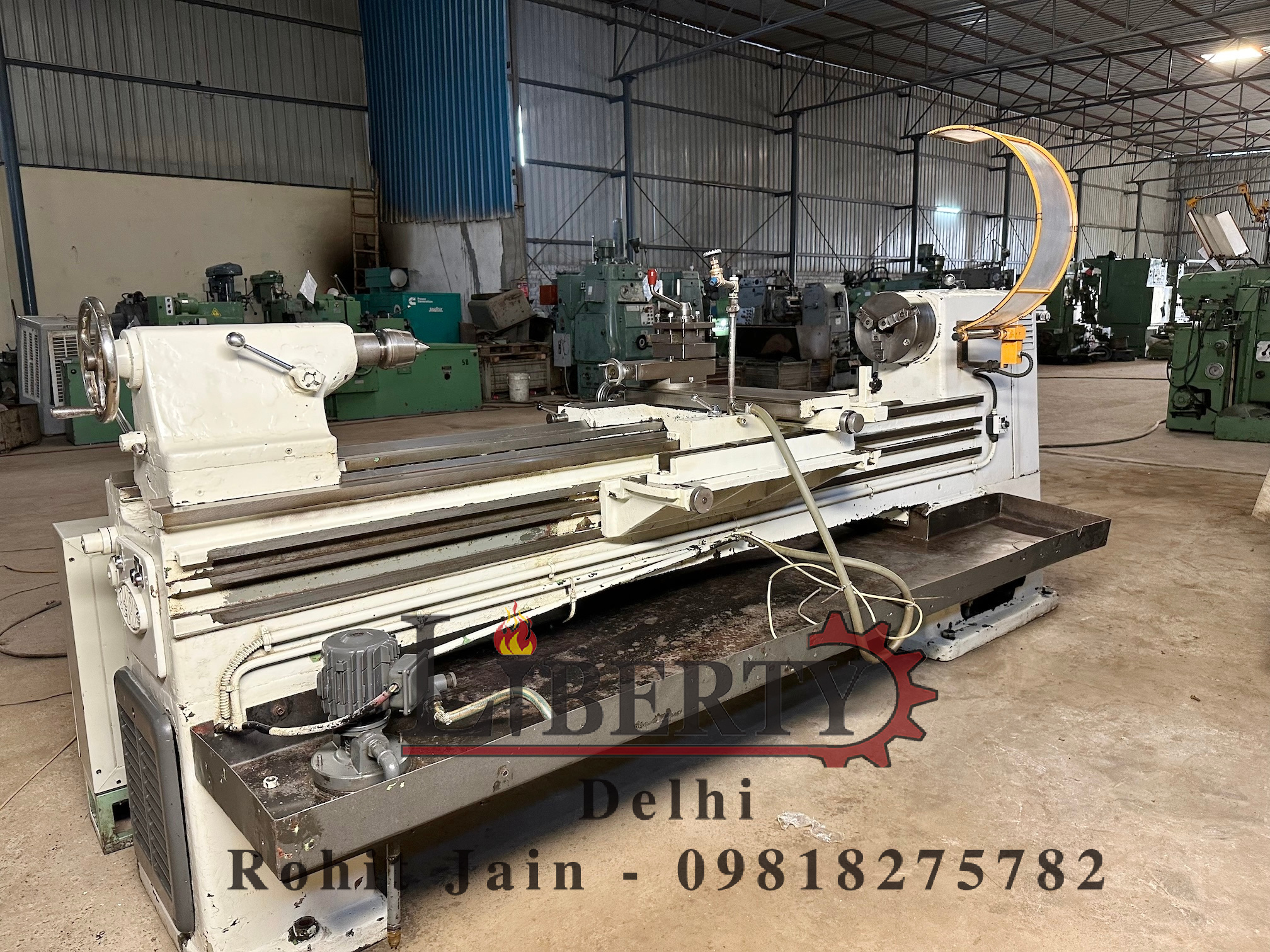

Cazeneuve 2000 mm Heavy Duty Lathe Machine

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Cazeneuve 2000 mm Heavy Duty Lathe Machine Specification

Product Type
Heavy Duty Lathe Machine

Material
Cast Iron

Cutting Thickness
Up to 20 mm

Cutting Speed
251800 mm/min

Engraving Area
2000 mm (length between centers)

CNC Or Not
Not CNC

Automatic Grade
Semi-Automatic

Control System
Manual

Max. Swing Diameter
550 mm

Voltage
415 V

Weight (kg)
Approx. 3200 kg

Dimension (L*W*H)
3500 x 1200 x 1500 mm

Capacity
Heavy duty turning

Feature
Robust structure, high precision, suitable for large workpieces

Color
Industrial Grey & Blue

Coolant Pump Provided
Yes

Distance Between Centers
2000 mm

Spindle Bore
80 mm

Carriage Travel
1850 mm

Application
Heavy Duty Turning, Industrial Machining

Number of Spindle Speeds
12

Spindle Nose
Camlock D1-8

Thread Cutting Range (Metric/Inch)
0.5-14 mm / 2-60 TPI

Lead Screw Diameter & Pitch
40 mm, 6 TPI

Bed Width
400 mm

Surface Finish
Precision Ground Surface

Tailstock Quill Travel
200 mm

Tailstock Quill Diameter
75 mm

Main Motor Power
7.5 HP

Bed Length
2000 mm

Chuck Size
400 mm

Cazeneuve 2000 mm Heavy Duty Lathe Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Cazeneuve 2000 mm Heavy Duty Lathe Machine

Make - Cazeneuve (France)

Model - HB 575

Center Height - 265 mm

Max. Length of Job - 2000 mm

Max. Diameter of Job over Bed - 530 mm

Max. Diameter over Cross-Slide - 300 mm

Max. Swing Diameter near Chuck - 575 mm

Bed Width - 400 mm

Spindle Speed - 20 rpm to 1600 rpm

Chuck Diameter - 250 mm

Spindle Bore - 51 mm

- Equipped with Taper Turning Attachment.

- Micro-Feed Adjustment in Cross-Slide Travels.

- Heavy duty machine with an extra wide bed.

- Machine in excellent working condition.

Video of The Machine -

https://youtu.be/zCnC7fCPYBA

Rugged Construction for Demanding Applications

The Cazeneuve Heavy Duty Lathe Machine is designed with a sturdy cast iron bed and frame, ensuring reliable performance for turning large and heavy components. Its industrial-grade build helps maintain structural integrity and precision, even under continuous heavy-duty operation, making it an ideal choice for demanding manufacturing environments.

Precision and Versatility in Machining

This lathe features a 12-speed spindle and a 200 mm quill travel tailstock, enabling highly customizable operations. Its ability to cut a variety of threads (metric and inch) and handle large workpieces up to 550 mm in diameter provides significant versatility for both heavy and intricate machining jobs.

FAQs of Cazeneuve 2000 mm Heavy Duty Lathe Machine:

Q: How does the Cazeneuve 2000 mm Heavy Duty Lathe Machine ensure precision during operation?

A: The lathe is equipped with a precision ground surface and high-quality components, including a robust cast iron bed, which minimize vibrations and enhance accuracy during turning, threading, and heavy-duty cutting tasks.

Q: What types of workpieces can be processed on this lathe machine?

A: This machine is suitable for handling large and heavy workpieces up to 2000 mm in length and 550 mm in swing diameter, making it ideal for industrial machining, shaft turning, and manufacturing components requiring heavy-duty turning.

Q: When should I use the coolant pump with this lathe?

A: The coolant pump should be used during prolonged or intensive machining operations to reduce heat generation, protect cutting tools, and ensure superior surface finishes on workpieces.

Q: Where is the Cazeneuve 2000 mm Heavy Duty Lathe Machine typically used?

A: It is commonly utilized in industrial workshops, heavy engineering plants, and manufacturing facilities that require precision turning of sizable parts. Its construction makes it suitable for sectors such as metalworking, fabrication, and large-scale component production.

Q: What is the process for thread cutting with this machine?

A: The lathe supports both metric (0.514 mm pitch) and imperial (260 TPI) thread cutting. Operators select the desired pitch using the built-in controls and lead screw mechanism, enabling efficient and consistent thread production.

Q: How does manual control benefit users of this lathe machine?

A: Manual control offers operators direct oversight of cutting operations, allowing for precise adjustments during machining. This flexibility is particularly valuable when working on unique or complex parts, or when production volume is low to medium.

Q: What are the main benefits of choosing this heavy-duty lathe model?

A: The key advantages include its robust construction, high load-bearing capacity, ability to machine large parts, precise thread cutting, semi-automatic features, and reliability in continuous heavy-duty industrial environments.
