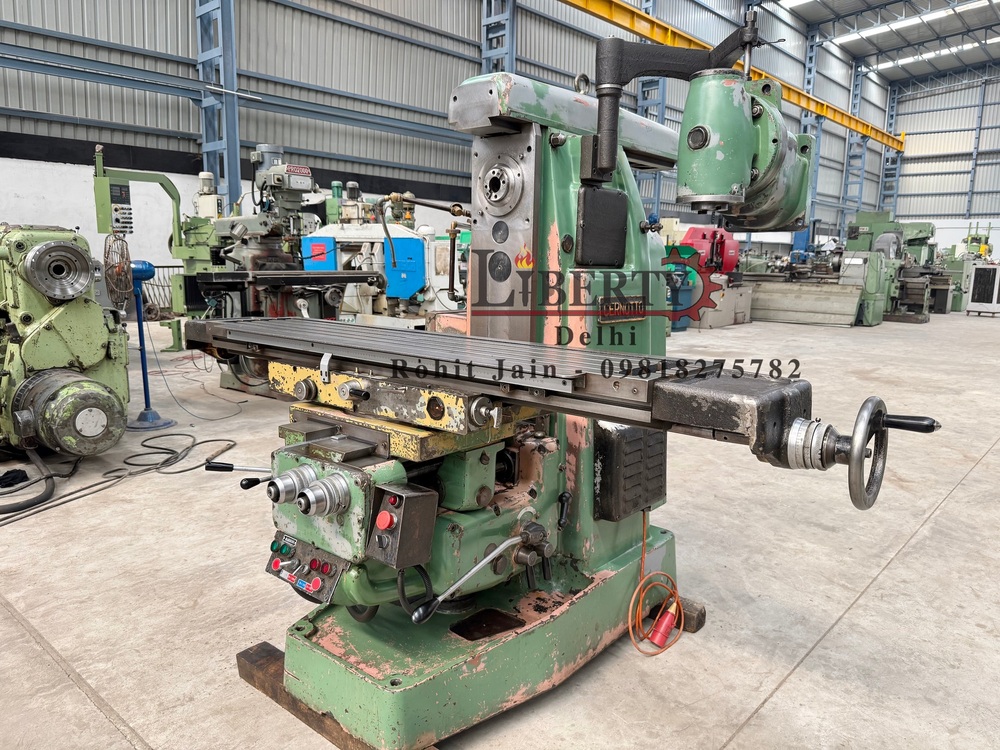

Cernotto Italy Universal Milling Machine

Name: Cernotto Italy Universal Milling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Cernotto Italy Universal Milling Machine Specification

Model
Cernotto Italy Universal

Rotation
Horizontal & vertical spindle rotation

Product Type
Universal Milling Machine

General Use
Heavy-duty precise metal milling

Material
Cast Iron

Type
Universal

Capacity
High Precision/Versatile

Weight (kg)
Approx. 1600 kg

Computerized
No

Automatic
No

CNC Or Not
Not CNC

Control System
Manual Controls

Table Size
1320 mm x 250 mm

Table Slide Way
Dove-tail type

Floor Space
1800 mm x 1700 mm x 1700 mm

Spindle Speed
60 - 1800 rpm (variable)

Power
3 HP

Voltage
415 V

Dimension (L*W*H)
1800 mm x 1700 mm x 1700 mm

Feature
Versatile cutting, robust construction, precise operation

Color
Grey/Green

Feed Motor
1 HP

Overarm Diameter
105 mm

Quill Travel
100 mm

Working Speed
Adjustable (based on table feed and spindle speed)

Main Motor
3 HP (2.2 kW)

Swivel Table
Swivels ±45°

Max. Distance Spindle to Table
450 mm

T-Slot Size (Table)
16 mm

Table Travel (X/Y/Z)
900 mm / 300 mm / 400 mm

Spindle Taper
ISO 40

Coolant System
Integrated

Cernotto Italy Universal Milling Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Cernotto Italy Universal Milling Machine

Make - Cernotto (Italy)

Model - Mayor-1300

Table Size - 1530 mm x 320 mm

XYZ Travel - 1000 mm x 300 mm x 475 mm

Spindle Taper - ISO 40

Spindle Speeds - 30 rpm to 1500 rpm

Table Feed Travel Rates - 18 mm/min to 325 mm/min

Table Rotation Range - +45 degree to -45 degree

- Complete with Parking-type Vertical Milling Head.

- Machine is in excellent working condition.

Video of the Machine -

https://youtu.be/mLPyLRmYd0c

Versatile Cutting Capabilities

Designed with a horizontal and vertical spindle rotation, the Cernotto Italy Universal Milling Machine enables operators to tackle a wide range of milling tasks. The adjustable spindle speed and feed rates make it perfect for demanding jobs requiring both versatility and accuracy. Its sturdy overarm and dove-tail slideway ensure a stable platform for complex operations.

Precision & Robust Construction

With a cast iron body weighing approximately 1600 kg, this milling machine stands out for its durability. The high-precision table travel, integrated coolant system, and reliable manual controls support exact finishes on a variety of materials. The 45 swivel table, quill travel, and large working area deliver adaptability for intricate milling procedures.

User-Focused Design for Professional Workshops

The machine's spacious table, ergonomic manual control system, and integrated feed and main motors provide seamless user experience. Its straightforward operation makes it an ideal choice for exporters, manufacturers, suppliers, and traders looking for consistent results in high-volume production environments.

FAQ's of Cernotto Italy Universal Milling Machine:

Q: How can I adjust spindle speed and feed rates on the Cernotto Italy Universal Milling Machine?

A: Spindle speed and feed rates are manually adjusted using the machine's control system. The spindle speed can vary from 60 to 1800 rpm, allowing you to tailor cutting conditions to your material and tool requirements for optimal performance.

Q: What types of materials is this milling machine best suited for?

A: Thanks to its cast iron construction and heavy-duty design, the Cernotto Italy Universal Milling Machine is especially effective for precision milling of metals such as steel, aluminum, and cast iron. It can also accommodate other solid materials relevant to industrial manufacturing.

Q: When should the integrated coolant system be used during operation?

A: The coolant system should be activated whenever heat buildup from high-speed cutting could affect tool life or workpiece finish. Continuous coolant flow helps maintain optimal temperatures and prolongs the lifespan of cutting tools and the milling machine.

Q: Where is the Cernotto Italy Universal Milling Machine typically installed?

A: Due to its weight and footprint (1800 mm x 1700 mm x 1700 mm), this machine is typically installed in industrial workshops, manufacturing plants, and metal fabrication facilities where heavy-duty, precise milling tasks are routine.

Q: What is the process for changing between horizontal and vertical spindle rotation?

A: Switching between horizontal and vertical spindle rotation involves repositioning the spindle head as per the manual control guide. This feature enables users to perform a wider array of milling processes without the need for additional machinery.

Q: How does manual control benefit the user compared to CNC operation?

A: Manual controls offer operators direct engagement with the machine, delivering tactile feedback and fine control over milling adjustments. This is ideal for specialized or small-batch production jobs requiring a high degree of customization.

Q: What are the primary advantages of this universal milling machine?

A: Key benefits include its high precision, versatility for both horizontal and vertical milling, robust cast iron construction for stability, and adaptable table movement. The machine's design supports varied industrial applications and ensures reliable, exact results.
