CIMA P4AUR Hydraulic Gear Hobbing Machine

Send Inquiry

Request To Call Back

CIMA P4AUR Hydraulic Gear Hobbing Machine

Name: CIMA P4AUR Hydraulic Gear Hobbing Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

CIMA P4AUR Hydraulic Gear Hobbing Machine Specification

Machine Type

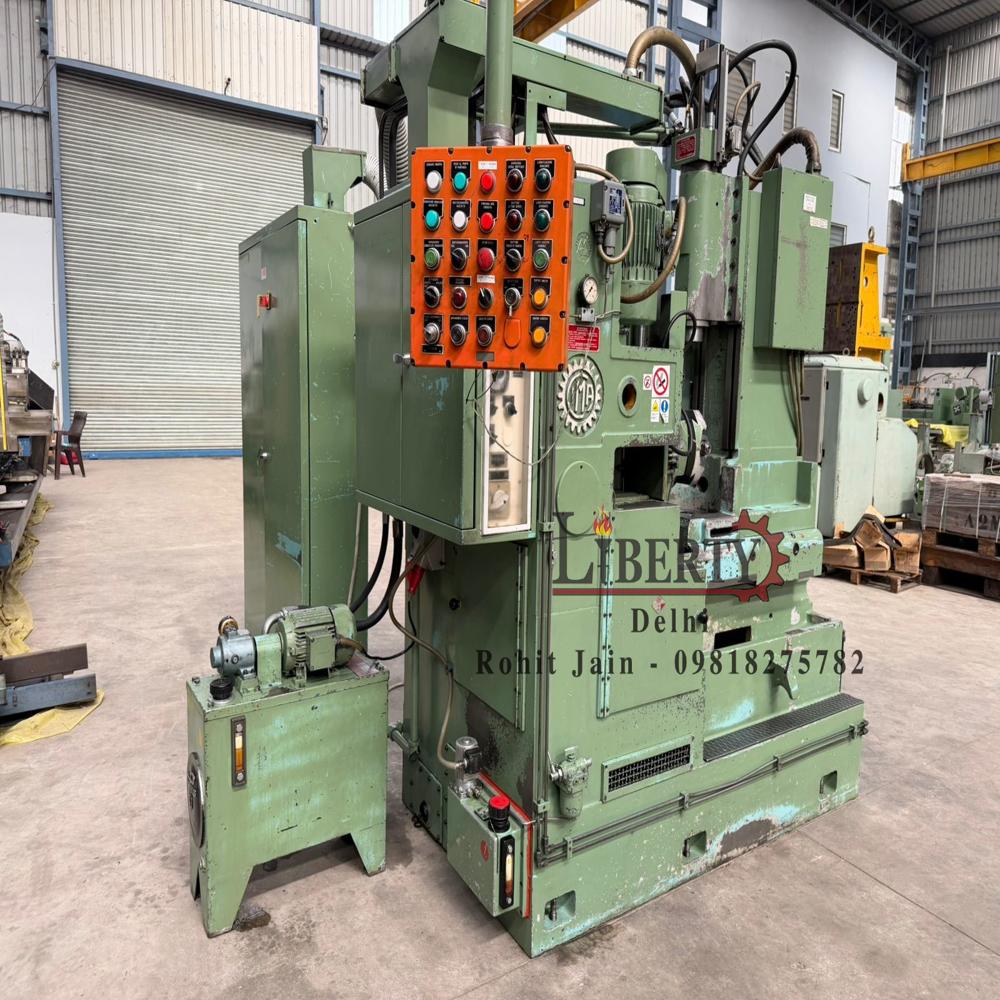

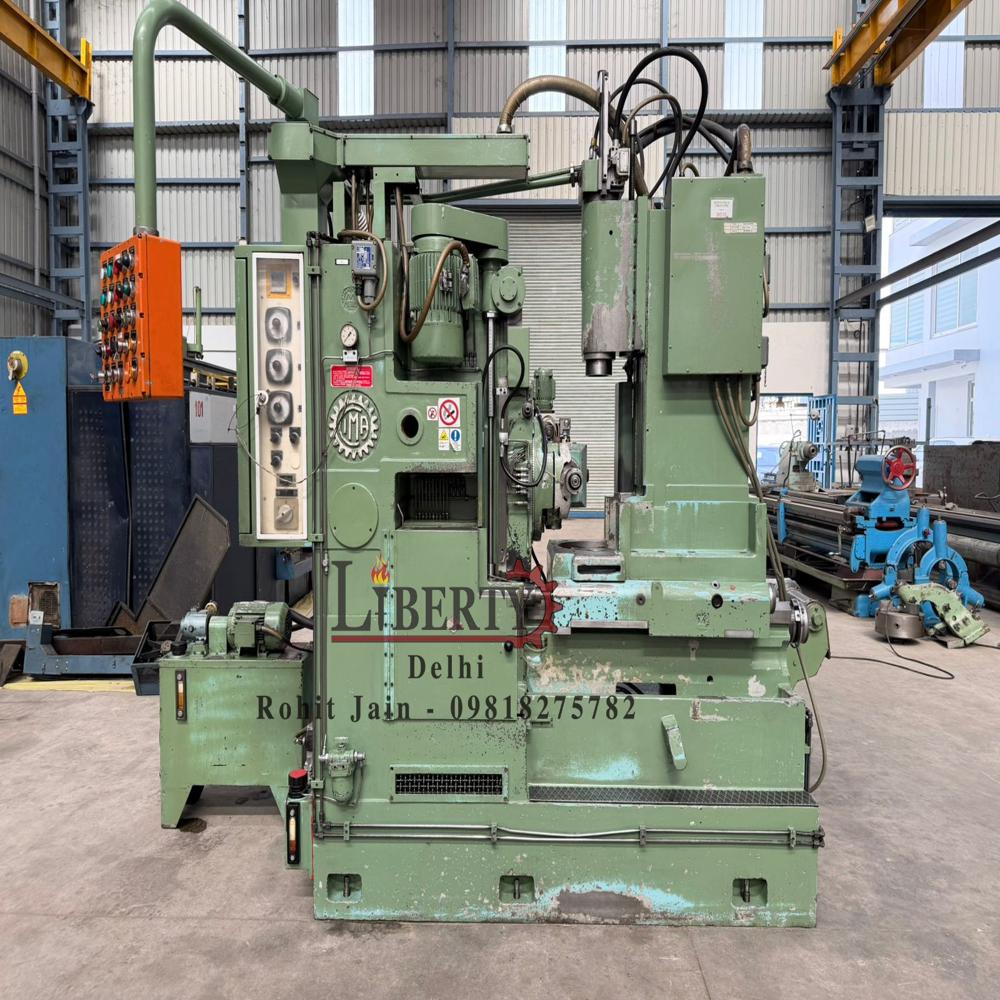

High-Production Hydraulic Gear Hobbing Machine made by CIMA (Italy), Model P4AUR, available in excellent working condition. It is a Heavy-Duty, Hydraulic, Auto-Cycle Gear Hobbing Machine suitable for high-production gear cutting operations. The machine has a Maximum Module Capacity of 6 Modules and can accommodate Gear Diameter up to 300 mm. The machine is complete with Change Gears, Arbour, Chip Conveyor, Splash Guards, Coolant Tank & Pump, Operating Manuals & Electrical Drawings. The technical details are as follows -

About CIMA P4AUR Hydraulic Gear Hobbing Machine

Make - CIMA (Italy)

Model - P4AUR

Max. Gear Diameter - 300 mm

Max. Module Capacity - 6 Modules

Vertical Travel of Hob Slide - 220 mm

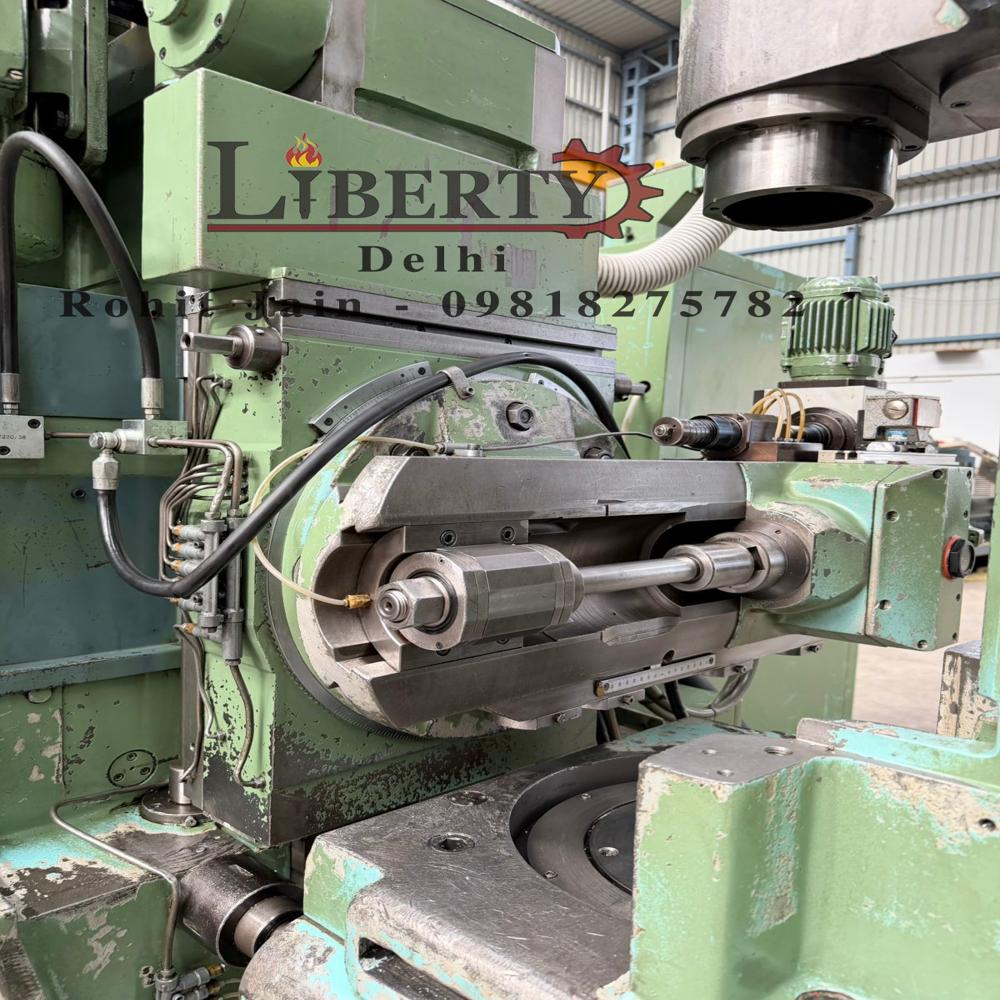

Max. Hob Cutter Dimensions - 120 mm Diameter 120 mm Length

Hob Rotation Speeds - 145 RPM to 500 RPM

Max. Height from Table Top to Center - 800 mm

Table Diameter - 310 mm

Table Bore - 85 mm

Hob Shifting - 100 mm

Type - Hydraulic | Auto-Cycle | High-Production

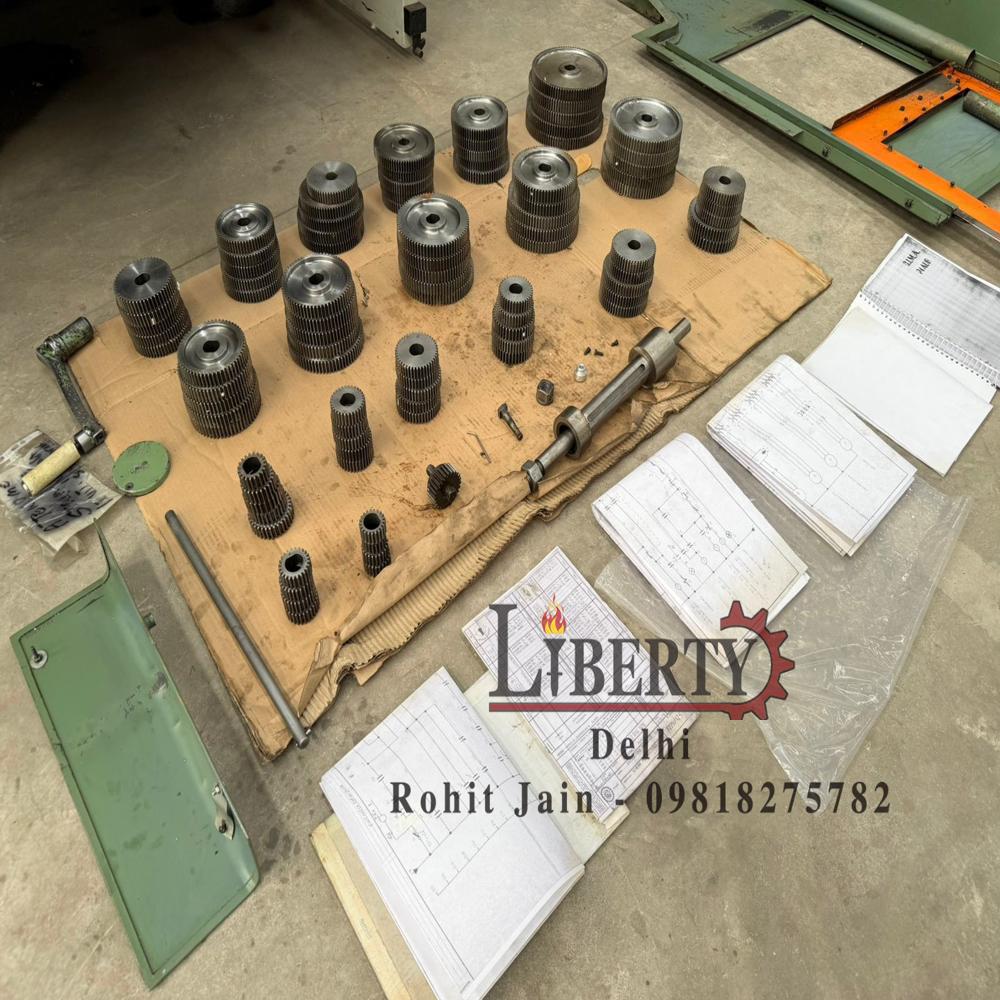

- Complete with Change Gears, Arbour, Chip Conveyor, Coolant Tank & Pump.

- Operating Manual & Electrical Drawings are available.

- Machine is in Excellent Working Condition.

Video of The Machine -

https://youtu.be/M5PinPg-BIo

Optimized for High-Production Gear Manufacturing

The CIMA P4AUR excels in fast-paced industrial settings due to its automatic operation and hydraulic power. Suitable for manufacturers seeking to scale up gear production, it offers consistent, reliable, and precise results for gears with modules up to 6 and diameters up to 300 mm.

Comprehensive Machine Package

Delivered in excellent working condition, the machine includes all critical accessories: change gears, arbour, chip conveyor, splash guards, coolant tank and pump, as well as comprehensive documentation such as operating manuals and electrical drawings. These components collectively streamline integration and operation.

Italian Craftsmanship for Heavy-Duty Performance

Manufactured by renowned Italian builder CIMA, the P4AUR model combines robust hydraulic construction with automatic cycling. This blend ensures minimal downtime, high accuracy, and long-lasting durability under demanding production schedules.

FAQ's of CIMA P4AUR Hydraulic Gear Hobbing Machine:

Q: How does the CIMA P4AUR Hydraulic Gear Hobbing Machine enhance high-production gear cutting?

A: The CIMA P4AUR operates with hydraulic power and an automatic cycle, allowing continuous gear hobbing with minimal manual intervention. This increases throughput, ensures repeatable accuracy, and reduces production bottlenecks, making it ideal for high-volume manufacturing.

Q: What gear sizes and specifications can this machine accommodate?

A: The CIMA P4AUR can handle gears with a maximum diameter of up to 300 mm and a module capacity of up to 6. This makes it suitable for medium- to large-sized gear machining across various industrial applications.

Q: When is this gear hobbing machine typically used in manufacturing?

A: This machine is ideal for deployment in scenarios where consistent, large-scale gear production is required-such as in automotive, heavy machinery, or industrial gearbox manufacturing facilities.

Q: Where can the CIMA P4AUR be installed for optimal performance?

A: The robust, heavy-duty design of the CIMA P4AUR allows it to be installed in industrial workshops or factories where stable flooring and adequate space are available to accommodate the complete system and ensure safety during operations.

Q: What is the process for setting up and operating the CIMA P4AUR?

A: Setting up involves mounting the machine with supplied accessories, connecting the coolant and hydraulic systems, and following the operational and electrical guidelines outlined in the provided manuals. With auto-cycle features, users can efficiently load, cut, and unload gears with streamlined workflows.

Q: What benefits does this hydraulic gear hobbing machine offer to manufacturers?

A: Manufacturers benefit from higher productivity, reduced human error, and lower operational downtime. The machine's compatibility with multiple attachments and ease of maintenance further enhance its value for continuous production.
