Cometa Italy 1000 mm Fully Automatic Cylindrical Grinding Machine

Send Inquiry

Request To Call Back

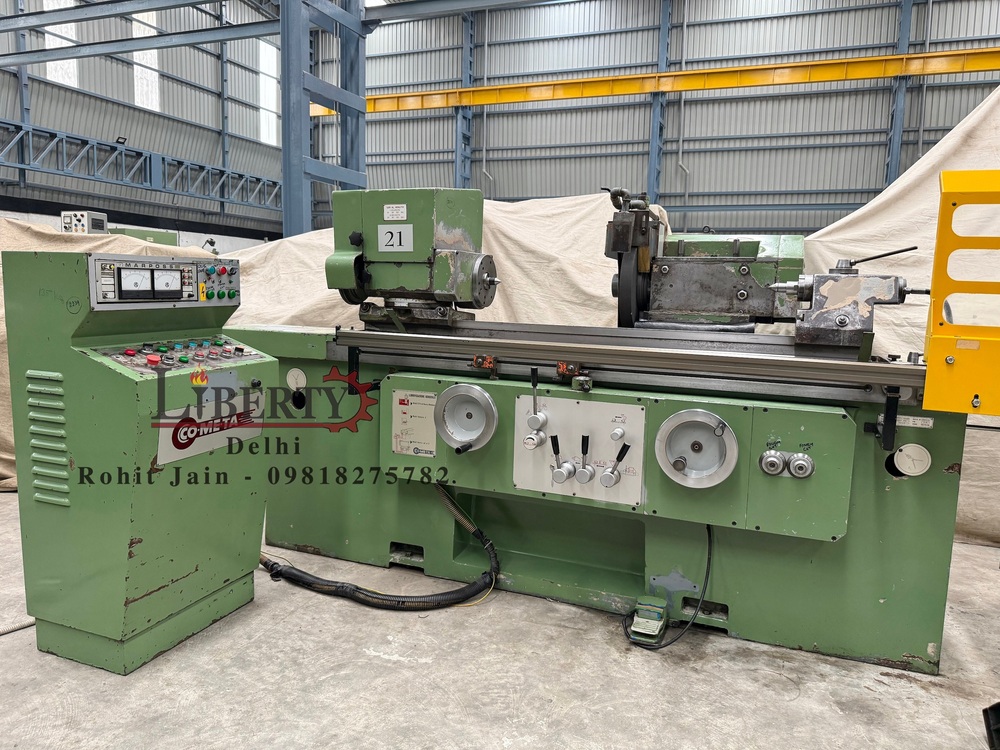

Cometa Italy 1000 mm Fully Automatic Cylindrical Grinding Machine

Name: Cometa Italy 1000 mm Fully Automatic Cylindrical Grinding Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Cometa Italy 1000 mm Fully Automatic Cylindrical Grinding Machine Specification

Product Type
Cylindrical Grinding Machine

General Use
Industrial, Precision Grinding

Material
Cast Iron, Steel

Type
Fully Automatic

Capacity
1000 mm

Weight (kg)
Approx. 3500 kg

Computerized
Yes

Automatic
Yes

Control System
PLC based

Drive Type
Electric

Grinding Diameter
300 mm

Grinding Length
1000 mm

Spindle Speed
Up to 1400 RPM

Grinding Wheel Size
400 x 50 x 203 mm

Voltage
415 V, 3 Phase

Dimension (L*W*H)
2700 x 1600 x 1650 mm

Feature
High Precision, Auto Feed, Robust Construction, Automatic Lubrication System

Color
White & Blue

Table Swivel Range
+- 7°

Wheel Dressing
Automatic

Noise Level
<75 dB

Max Workpiece Weight
150 kg

Headstock Type
Live and Dead Centers

Center Height
180 mm

Coolant System
Integrated

Hydraulic System
Provided

Wheel Peripheral Speed
35 m/s

Rapid Approach and Retraction
Yes

Power Consumption
6 kW

Cometa Italy 1000 mm Fully Automatic Cylindrical Grinding Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

Cometa Italy 1000 mm Fully Automatic Cylindrical Grinding Machine About

Make - Cometa (Italy)

Model - UAM/1000

Center Height - 195 mm

Max. Job Diameter - 390 mm

Max. Length of Job - 1000 mm

Grinding Wheel Size - Diameter 400 mm x 50 mm Width

Work-Head Speeds - 15 rpm to 320 rpm

Table Rotation - +9 degree to -9 degree

Least Count of Wheel-Head (on Job Diameter) - 5 Microns (0.005 mm)

- Equipped with new DELTA make PLC for Auto-Cycle working.

- Features like Automatic Depth Adjustment, Spark-Out, Auto-Compensation etc.

- Features like Plunge Grinding, Hydraulic Tail-Stock, Delay Feature etc.

- Complete with paper-type Coolant Filtration Unit, Coolant Tank, Pump, Dust Collector etc.

- With Job Steady, Wheel Dresser, other accessories etc.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/7PUasaLbELU

Precision Engineering for Superior Results

Designed for industrial use, the Cometa Italy cylindrical grinding machine ensures consistently high accuracy. It's equipped with advanced features like automatic wheel dressing and a rapid approach mechanism. With a 1000 mm grinding length and 180 mm center height, it can handle a diverse range of workpieces. The robust construction enhances durability, while computerized PLC-based controls enable precise adjustments for optimal grinding performance.

Integrated Automation for Streamlined Workflow

This fully automatic cylindrical grinding machine features a PLC-based control system, automatic lubrication, and an integrated coolant and hydraulic system. Operators benefit from easy programming and seamless operation. The rapid approach and automatic retraction functions reduce setup time, while automatic wheel dressing maintains optimal cutting efficiency. All these features are designed to boost productivity in demanding manufacturing settings.

Built for Industrial Demands

With a maximum workpiece capacity of 150 kg and constructed from high-grade materials like steel and cast iron, the Cometa Italy grinder is built to withstand rigorous usage. The electric drive and auto-feed system make operation effortless, while the machine's white and blue finish reflects its modern, robust design. Comprehensive safety and noise suppression features ensure a reliable and user-friendly experience for continuous industrial operation.

FAQ's of Cometa Italy 1000 mm Fully Automatic Cylindrical Grinding Machine:

Q: How does the automatic wheel dressing feature benefit the grinding process?

A: The automatic wheel dressing ensures the grinding wheel maintains its optimal profile and sharpness throughout operations. This results in consistent surface finishing, improves precision, and extends wheel life, reducing manual intervention and maintenance downtime.

Q: What materials can be processed with the Cometa Italy 1000 mm Cylindrical Grinding Machine?

A: This machine is suitable for precision grinding of industrial materials such as cast iron and steel, making it ideal for a wide range of manufacturing and machining tasks.

Q: When should the rapid approach and retraction function be used?

A: The rapid approach and retraction should be used during setup and transition phases, allowing faster positioning of the grinding wheel relative to the workpiece, which shortens cycle times and enhances production efficiency.

Q: Where is the optimal environment to operate this grinding machine?

A: This machine is best suited for industrial settings such as manufacturing plants, workshops, or machining centers where high-precision grinding and robust performance are required.

Q: How does the integrated coolant and hydraulic system support usage?

A: The integrated systems ensure stable temperature control and smooth, precise motion during grinding operations. This helps in maintaining product quality, keeps the components lubricated, and prevents overheating.

Q: What are the key benefits of the PLC-based control system?

A: The PLC-based system provides computerized control for programmable, repeatable operations, making the setup quick and adjustments precise, which increases productivity and reduces the risk of operator error.

Q: What safety and comfort features are included in this machine?

A: The machine operates at a noise level below 75 dB, has robust construction for operator safety, and is equipped with automatic systems that reduce manual handling, contributing to a safer and more comfortable working environment.
