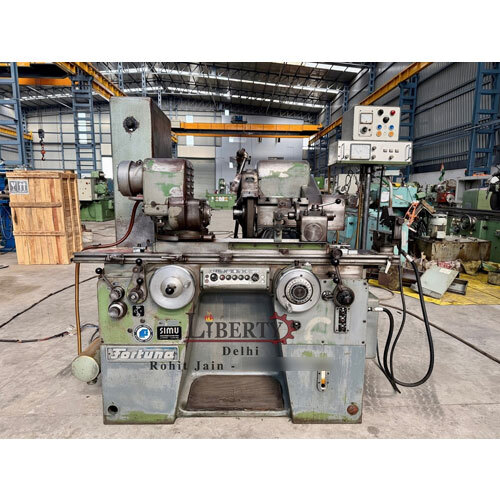

Fortuna 400 mm Length Automatic Cylindrical Grinding Machine
Fortuna 400 mm Length Automatic Cylindrical Grinding Machine

Fortuna 400 mm Length Automatic Cylindrical Grinding Machine

Price 100000 INR/ Piece

MOQ : 1 Piece

Fortuna 400 mm Length Automatic Cylindrical Grinding Machine Specification

  • Product Type
  • Automatic Cylindrical Grinding Machine
  • General Use
  • Industrial Cylindrical Grinding
  • Material
  • Cast Iron, Steel
  • Type
  • Automatic
  • Capacity
  • 400 mm Grinding Length
  • Weight (kg)
  • Approx. 2500 kg
  • Computerized
  • No
  • Automatic
  • Yes
  • Control System
  • PLC Controlled
  • Drive Type
  • Electric
  • Grinding Diameter
  • Max. 250 mm
  • Grinding Length
  • 400 mm
  • Spindle Speed
  • 1200 RPM
  • Grinding Wheel Size
  • 400 mm x 50 mm x 152.4 mm
  • Voltage
  • 415 V, Three Phase
  • Dimension (L*W*H)
  • 2100 mm x 1600 mm x 1500 mm
  • Feature
  • High Precision, Heavy Duty, Automatic Feed
  • Color
  • Green/Grey
  • Usage Environment
  • Workshop, Tool Room
  • Lubrication System
  • Automatic
  • Wheelhead Motor Power
  • 4 HP
  • Chuck Type
  • 3-Jaw Manual
  • Safety Features
  • Overload Protection, Emergency Stop
  • Table Travel
  • 430 mm
  • Noise Level
  • <80 dB
  • Installation
  • Floor Mounted
  • Coolant System
  • Integrated
  • Tailstock
  • Adjustable
  • Max Workpiece Weight
  • 70 kg
  • Packaging Type
  • Wooden Crate
  • Workhead Motor Power
  • 0.5 HP
  • Surface Finish
  • < 0.5 micron


Fortuna 400 mm Length Automatic Cylindrical Grinding Machine Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Main Domestic Market
  • All India


About Fortuna 400 mm Length Automatic Cylindrical Grinding Machine

Make - Fortuna (Germany)

Center Height - 138 mm

Max. Diameter of Job - 270 mm

Max. Length of Job - 400 mm

Grinding Wheel Size - Diameter 400 mm x 50 mm Width

Work-Head Speed - 63 rpm to 800 rpm

Table Rotation Angle - 16 degree to -5 degree

- Machine can work in complete Auto-Cycle Mode.

- Features of Plunge Grinding, Auto-Cut, Auto-Compensation etc.

- Features of Spark-Out, Delay, Rough & Finish Grinding etc.

- With In-Process Measurement System and Finibalanz Wheel Balancing System.

- Complete with Job Steady, Coolant Filtration Unit, Coolant Tank and Pump.

- Machine is in excellent working condition.


Video of The Machine -

https://youtu.be/QxLM_y0nAVs



High Precision Grinding for Industrial Demands

Engineered for demanding environments, the Fortuna 400 mm Length Automatic Cylindrical Grinding Machine ensures superior accuracy with a surface finish of less than 0.5 micron. Suited for both cast iron and steel, it is equipped with advanced features such as an automatic lubrication system and robust 4 HP wheelhead motor, making it capable of handling heavy-duty applications in workshops and tool rooms.


Robust Construction and Advanced Safety

Constructed with heavy-duty materials, this grinding machine weighs approximately 2500 kg and boasts a solid, floor-mounted design to guarantee stability. The machine incorporates essential safety features, including overload protection and an emergency stop function, to safeguard operators and equipment during intensive use, while maintaining a low operational noise of less than 80 dB.


Easy Operation and Automatic Features

Its automatic feed and PLC-controlled system facilitate streamlined operation and repeatable, quality results. The machine's 3-jaw manual chuck allows secure clamping, while the adjustable tailstock and large grinding wheel (400 mm x 50 mm x 152.4 mm) offer flexibility for different workpiece sizes. Integrated coolant and automatic lubrication reduce manual maintenance and ensure long-term reliability.

FAQ's of Fortuna 400 mm Length Automatic Cylindrical Grinding Machine:


Q: How does the Fortuna 400 mm Automatic Cylindrical Grinding Machine benefit industrial operations?

A: This machine offers high-precision and consistent grinding for cast iron and steel workpieces, thanks to its robust construction, automatic lubrication, and integrated coolant system. It improves efficiency and surface finish quality, streamlining workflows for workshops and tool rooms.

Q: What is the maximum workpiece size and weight the machine can handle?

A: The grinder supports workpieces up to 400 mm in length and 250 mm in diameter, with a maximum weight of 70 kg, making it suitable for a variety of medium to heavy-duty cylindrical grinding tasks.

Q: When is it advisable to use the integrated coolant and automatic lubrication systems?

A: The machine's integrated coolant and automatic lubrication systems operate continuously during grinding cycles, maintaining optimal temperature, reducing wear, and extending tool life. This is essential for high-precision operations and prolonged machine performance.

Q: Where can this grinding machine be installed?

A: It is designed for floor mounting and is best suited for industrial environments such as workshops and tool rooms, where stable and secure operation is crucial.

Q: What safety features does the Fortuna grinder have?

A: For enhanced operator safety, the machine includes overload protection and an emergency stop button. These features help prevent damage and ensure immediate response to abnormal conditions.

Q: How does the PLC control system improve the grinding process?

A: The PLC-controlled automation streamlines the grinding process by providing consistent, repeatable operations, enabling precise adjustments, and reducing manual intervention, thereby optimizing productivity and accuracy.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Cylindrical Grinder Category

Jones Shipman England Precision Universal Cylindrical Grinder Machine

Jones Shipman England Precision Universal Cylindrical Grinder Machine

Price 100000.0 INR / Piece

Minimum Order Quantity : 1 Piece

Product Type : Precision Universal Cylindrical Grinder Machine

Feature : Other, Universal swiveling wheel head, high precision, robust construction

Material : Other, Cast Iron, Alloy Steel

Drive Type : Other, Belt Driven

Tacota Italy 2700 mm Length Cylindrical Grinder Machine

Tacota Italy 2700 mm Length Cylindrical Grinder Machine

Price 100000 INR / Piece

Minimum Order Quantity : 1 Piece

Product Type : Cylindrical Grinder Machine

Feature : Other, High rigidity, antivibration, precision work

Material : Other, Heavyduty Cast Iron and Steel

Drive Type : Other, Electrical Motor Driven

Gendron France 500 mm Precision Cylindrical Grinder

Gendron France 500 mm Precision Cylindrical Grinder

Price 45000 INR / Piece

Minimum Order Quantity : 1 Piece

Product Type : Precision Cylindrical Grinder

Feature : Other, High Precision, Robust Construction

Material : Other, Heavy Duty Cast Iron

Drive Type : Other, Electric Motor Driven

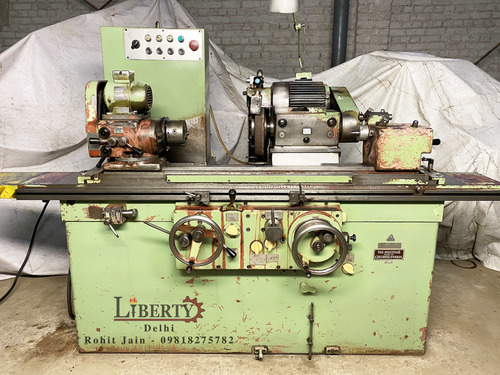

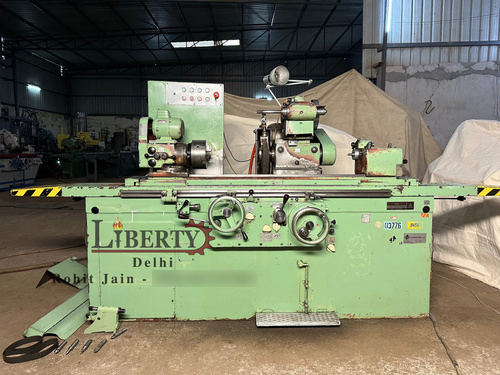

TOS 2Ud 750 mm Universal Cylindrical Grinder
