Hofmann Germany EO-RE Dynamic Balancing Machine

Name: Hofmann Germany EO-RE Dynamic Balancing Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Hofmann Germany EO-RE Dynamic Balancing Machine Specification

Features
User-friendly interface, high sensitivity, robust structure

Lubricating System
Grease Lubrication

Model No
EO-RE

Production Capacity
Up to 15 components/hour

Voltage
400 V

Machine Type
EO-RE Series Horizontal

Motor Power
1.5 kW

Frequency
50 Hz

Frame Type
Welded Steel Frame

Operating Temperature
5C to 45C

Connectivity Options
RS-232, USB

Cooling System
Fan cooled

Power Rating
1.5 kW

Drive
Belt Drive

Control System
Digital Control Panel

Noise Level
< 70 dB

Accuracy
1 g-mm/kg

Product Type
Dynamic Balancing Machine

Technology
Microprocessor-based

Power Source
Electric

Operating Type
Semi-Automatic

Power
1.5 kW

Pressure
Atmospheric

Surface Treatment
Powder Coated

Dimension (L*W*H)
1800 x 1200 x 1600 mm

Weight (kg)
Approx. 850 kg

Color
Light Grey / Green

Usage & Applications
Rotors, Armatures, Shafts, Fans, Blowers

Minimum Rotor Length
200 mm

Display System
Digital LCD

Rotor Supports
V-blocks with roller bearings

Minimum Rotor Diameter
50 mm

Calibration
Automatic and manual options

Maximum Rotor Weight
up to 100 kg

Data Storage Capacity
Up to 1000 jobs

Measurement Units
Metric/Imperial selectable

Software Support
Windows compatible analysis software

Serviceability
Modular component design for easy maintenance

Balancing Speed Range
Infinitely variable

Safety Features
Emergency stop, overload protection

Environmental Compliance
CE Certified

Correction Methods
Drilling/Milling/Weight addition

Maximum Rotor Length
1600 mm

Vibration Measurement
Integrated Piezoelectric Sensors

Maximum Rotor Diameter
700 mm

About Hofmann Germany EO-RE Dynamic Balancing Machine

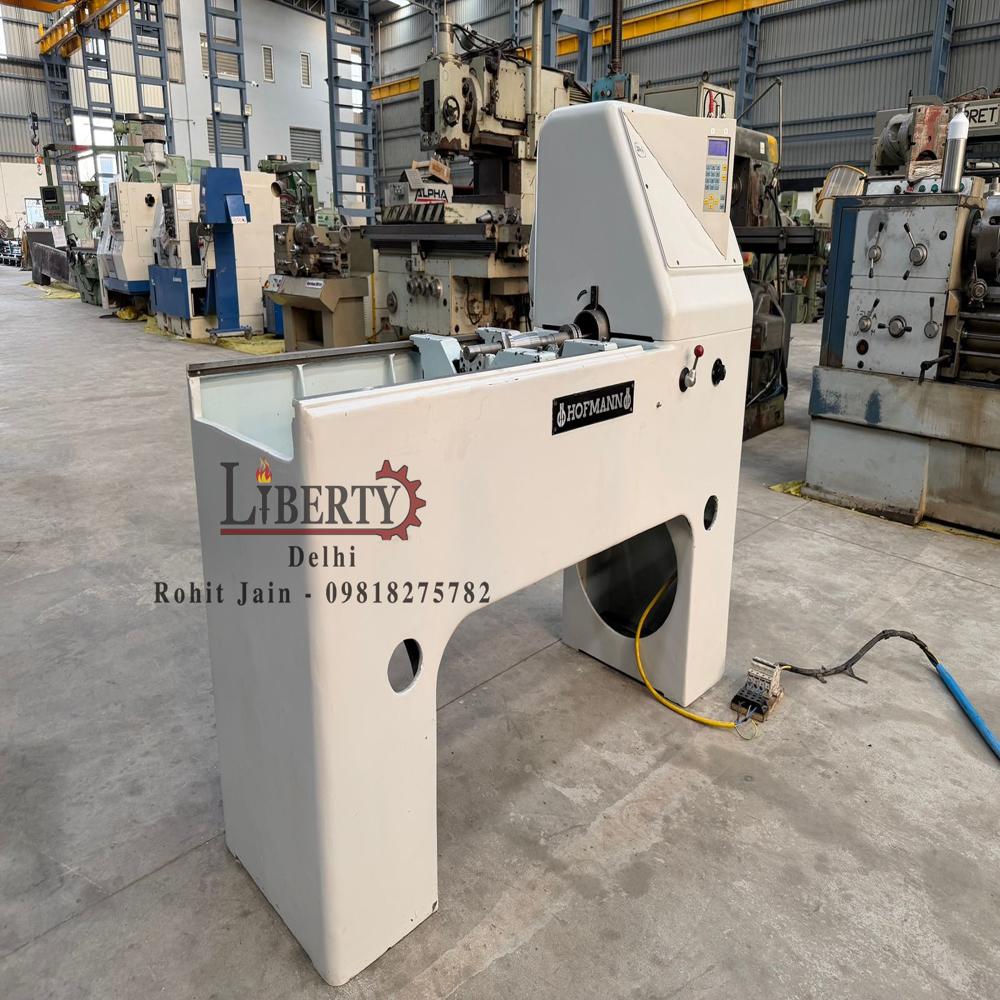

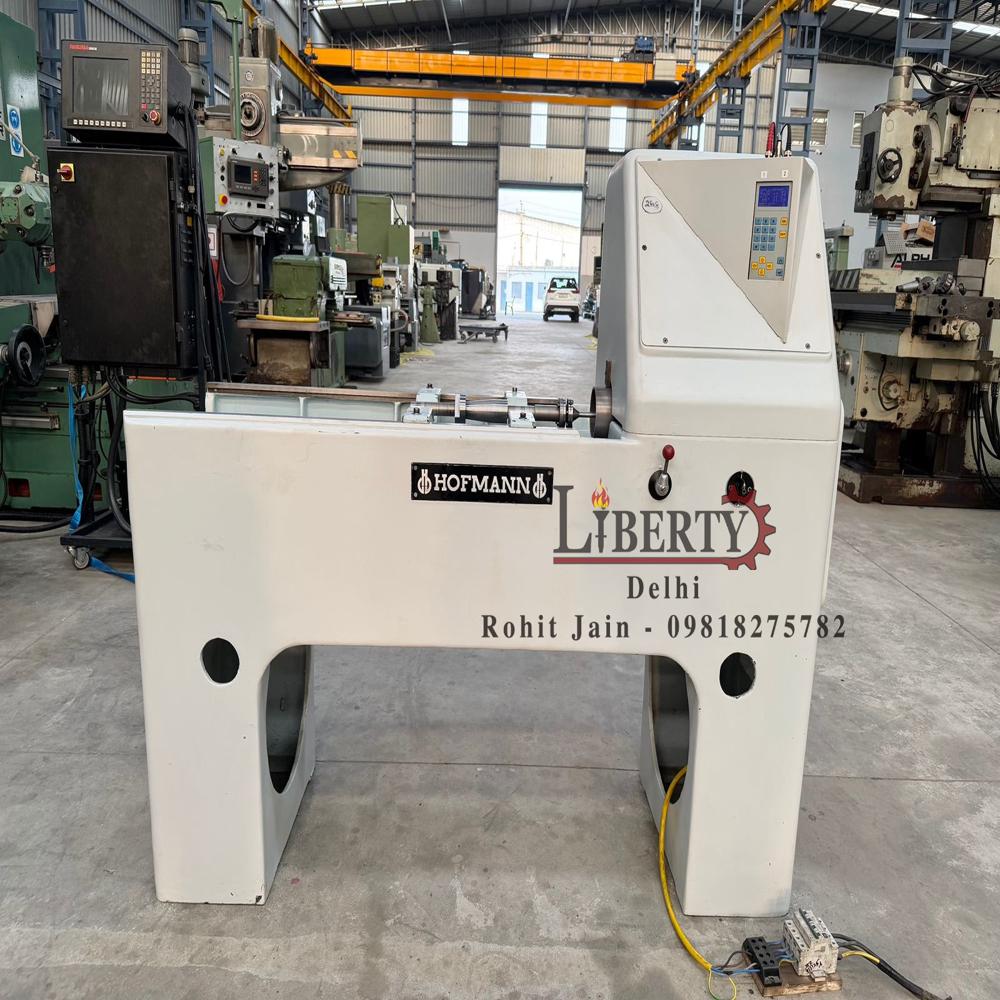

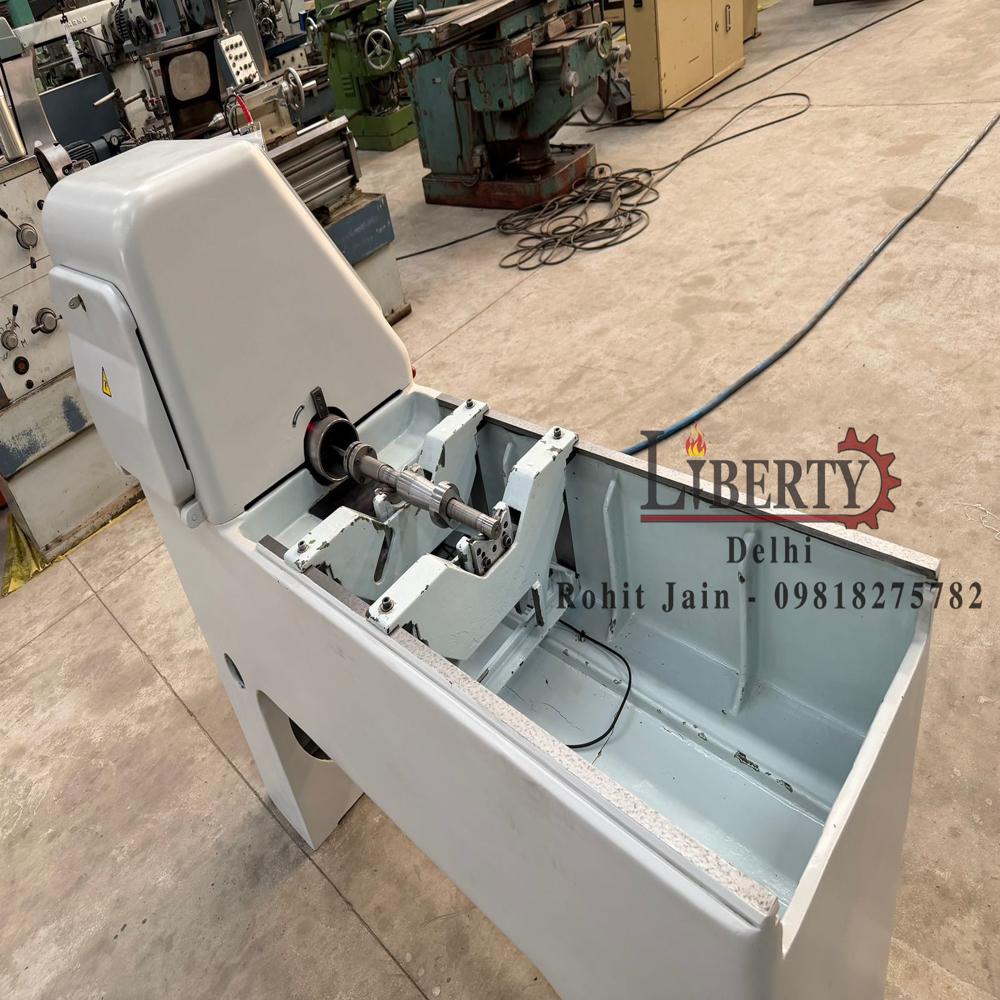

Hofmann (Germany) make Dynamic Balancing Machine, Model EO-RE, available in excellent working condition. The machine is equipped with Hofmann Minibalancer MI 2100 Balancing Instrument and Vibrometer. It is a single- or dual-plane balancing machine designed for accurate and reliable balancing operations, offering a simple operating interface with precise measuring and balancing results. The machine is suitable for balancing a variety of rotating components and is complete with accessories including balancing weights, mandrels, etc. The Operating Manual is also available. The Technical Specifications are as follows -

Make Hofmann (Germany)

Model EO-RE

Instrument Hofmann Minibalancer MI 2100

Balancing Type Single / Dual Plane

Max. Workpiece Weight 60 kg

Max. Workpiece Length 700 mm

Max. Workpiece Diameter 500 mm

Bed Size 950 mm 460 mm

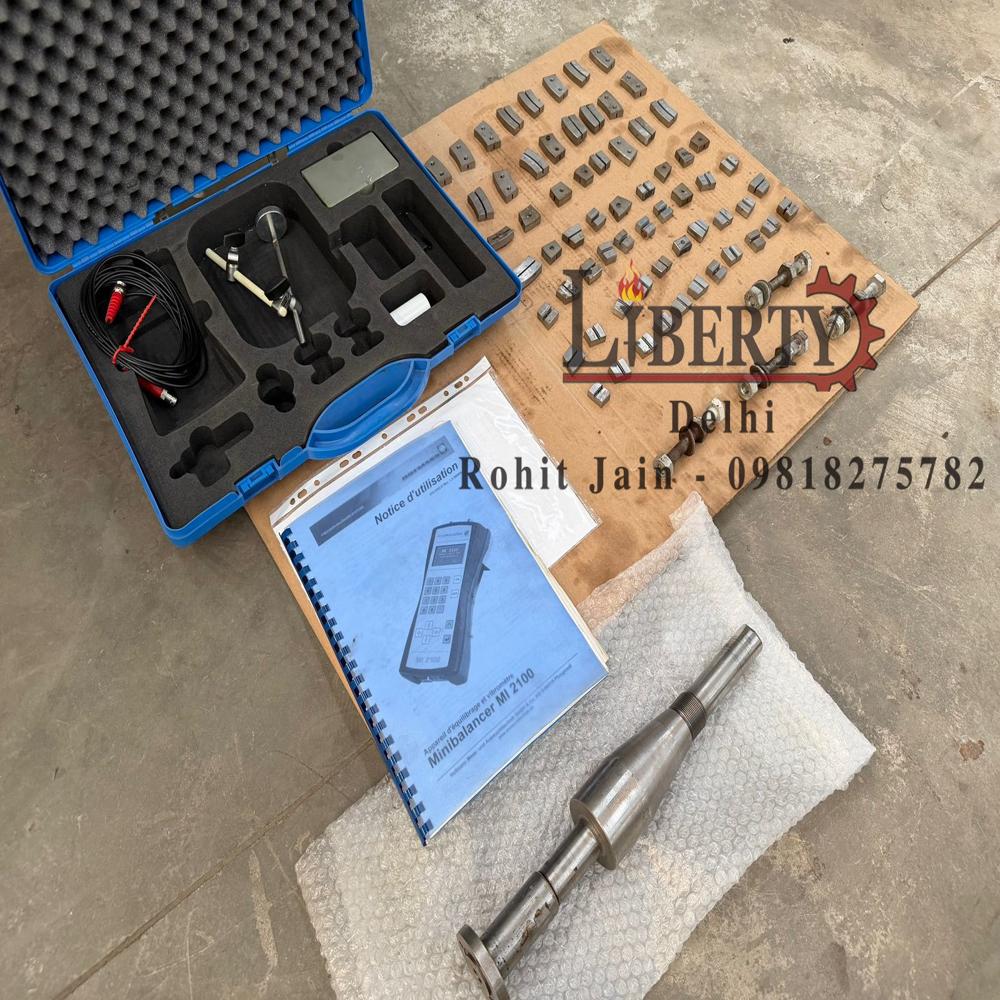

- Equipped with Hofmann Minibalancer MI 2100 & Vibrometer.

- Complete with Balancing Weights, Mandrels, etc.

- Operating Manual available.

- Machine is in excellent working condition.

Video of the Machine -

https://youtu.be/SMQVgiCOIyw

High Precision and Versatility

The EO-RE Dynamic Balancing Machine accommodates a wide range of rotor sizes and types, thanks to its minimum rotor diameter of 50 mm and maximum of 700 mm. Its infinitely variable speed and selectable measurement units make it adaptable for diverse industrial balancing needs. Featuring correction methods such as drilling, milling, or weight addition, it ensures precise rotor balancing every time.

Advanced Safety and Control Systems

Designed with operator safety in mind, the machine integrates critical safety features like emergency stop and overload protection. The digital control panel provides easy access to calibration modes, flexible speed control, and data storage for up to 1000 balancing jobs. The structure's welded steel frame and powder-coated finish provide both durability and ease of maintenance.

User-Friendly Operation and Maintenance

The EO-RE Series Horizontal Balancer is tailored for efficient operation, boasting a user-friendly interface and high sensitivity vibration detection. Modular components and Windows-compatible analysis software simplify system updates, troubleshooting, and data management. Its low noise level, fan-cooled system, and robust lubricating mechanism enhance longevity, making it ideal for frequent industrial usage.

FAQ's of Hofmann Germany EO-RE Dynamic Balancing Machine:

Q: How does the Hofmann EO-RE Dynamic Balancing Machine ensure precise balancing of rotors?

A: The EO-RE machine uses integrated piezoelectric sensors and advanced digital analysis software to detect and correct even minute imbalances. It supports both automatic and manual calibration, allowing for highly accurate balancing results with an accuracy of 1 g-mm/kg.

Q: What types of correction methods can be applied with this balancing machine?

A: This machine supports multiple correction methods, including drilling, milling, and weight addition. These options provide flexibility for balancing different rotor designs and accommodating various industrial applications such as fans, armatures, and blowers.

Q: When should the machine's calibration be performed, and which modes are available?

A: Calibration is recommended before processing new rotor types or after significant maintenance. The EO-RE model offers both automatic and manual calibration modes, accessible through the digital control panel, ensuring consistent performance and reliability.

Q: Where can measurement data be exported or stored?

A: Balancing job data can be stored directly in the machine with a capacity of up to 1000 jobs. For further analysis or record keeping, data can be exported through RS-232 or USB connectivity and processed using Windows-compatible analysis software.

Q: What is the process for balancing a rotor using the EO-RE machine?

A: The procedure involves securing the rotor on V-blocks with roller bearings, selecting the appropriate balancing program, running the measurement cycle, applying corrective measures (drilling, milling, or adding weights), and rechecking until the desired balance is achieved.

Q: How can users benefit from the EO-RE's modular component design?

A: The modular design allows for quick replacement or servicing of critical components, reducing machine downtime and simplifying maintenance. This feature enhances overall productivity and operational life.

Q: What safety features are included in the EO-RE balancing machine?

A: The machine is equipped with emergency stop and overload protection systems, ensuring operator safety during all balancing operations. Additionally, the robust welded steel frame and powder coating contribute to structural integrity and safe, long-term use.
