Hurth Gear Shaving Machine

Get a Price/Quote

Hurth Gear Shaving Machine Specification

Lubricating System
Automatic

Cooling System
Integrated

Machine Type
Hurth Gear Shaving Machine

Voltage
380-440V

Control System
Manual

Features
Durable Precision Gear Shaving

Power Rating
Standard

Frequency
50 Hz

Operating Temperature
Ambient

Accuracy
High

Connectivity Options
None

Noise Level
Low

Frame Type
Heavy-duty Frame

Product Type
Gear Shaving Machine

Technology
Conventional

Power Source
Three-phase power

Operating Type
Manual

Power
Electric

Surface Treatment
Painted Coated Surface

Dimension (L*W*H)
Standard industrial dimensions

Weight (kg)
Approximately 1200 kg

Color
Green and Yellow

Warranty
No warranty information available

Production Capacity
High

Usage & Applications
Gear Precision Shaving

About Hurth Gear Shaving Machine

Make - Hurth (Germany)

Model - ZSU 320

Max. Diameter of Gear - 320 mm

Max. Width of Gear - 150 mm

Max. Module - 8 module

Table Size - 900 mm x 190 mm

Cutter Speed - 45 rpm to 163 rpm

Table Feed Travel Rate - 28 mm/min to 270 mm/min

Head Rotation - +50 to -50

Table Rotation - +35 to -35

- Equipped with Hydraulic Tailstock.

- With Automatic Depth Adjustment "Auto-Cut"

- With accessories like change gears, flange, gauge, mandrels, etc.

- Complete with a total of 4 x cutters.

- Machine is in excellent working condition.

Video Link - https: //youtu.be/3mkTAJbxT-I

FAQs of Hurth Gear Shaving Machine:

Q: What is the power source of the Hurth Gear Shaving Machine?

A: The power source of the machine is three-phase power.

Q: What is the weight of the Hurth Gear Shaving Machine?

A: The machine weighs approximately 1200 kg.

Q: What is the operating type of the Hurth Gear Shaving Machine?

A: The operating type is manual.

Q: What is the accuracy level of the machine?

A: The accuracy of the machine is high.

Q: What is the production capacity of the Hurth Gear Shaving Machine?

A: The production capacity is high.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

More Products in Gear Shaving Machine Category

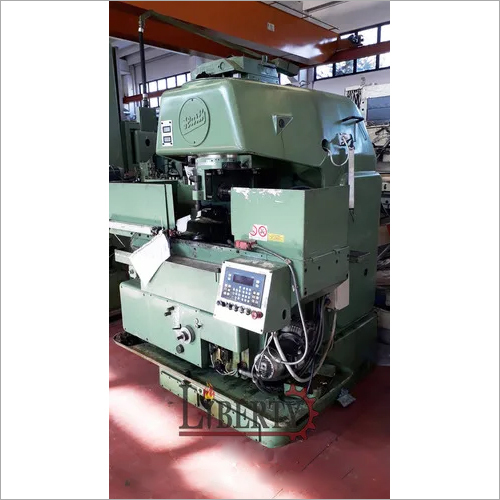

Hurth ZSA 220 Gear Shaving Machine
