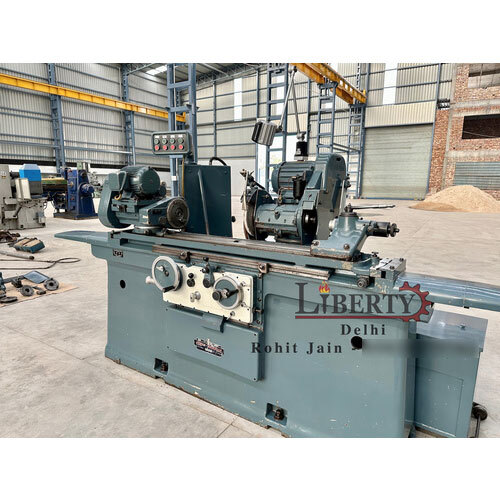

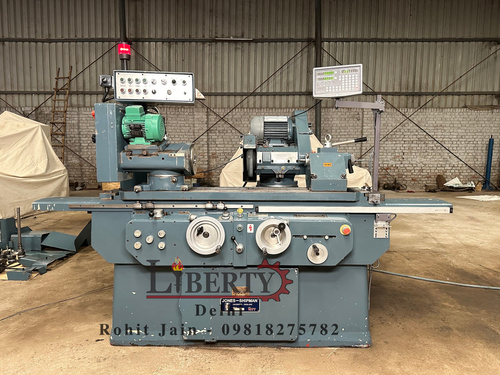

Jones & Shipman 1305 Universal Cylindrical Grinder

Name: Jones & Shipman 1305 Universal Cylindrical Grinder
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Jones & Shipman 1305 Universal Cylindrical Grinder Specification

Product Type
Universal Cylindrical Grinder

General Use
Precision cylindrical external and internal grinding

Material
Cast Iron Body, Hardened Steel Components

Type
Manual

Capacity
285 mm swing x 685 mm between centres

Weight (kg)
Approx. 1750 kg

Computerized
No

Automatic
No

Control System
Manual Controls

Drive Type
Belt Drive

Grinding Diameter
Maximum 285 mm

Grinding Length
Maximum 685 mm

Spindle Speed
Up to 2750 RPM

Grinding Wheel Size
356 mm (Diameter) x 38 mm (Width) x 127 mm (Bore)

Voltage
415 V (3 Phase)

Dimension (L*W*H)
2020 mm x 1430 mm x 1600 mm (approx.)

Feature
Versatile, Precision, High Rigidity, Swivelling Table

Color
Industrial Grey with Blue Trim

Table Swivel Range
+/- 8 degrees

Centre Height
143 mm

Model
1305

Internal Grinding Spindle Speed
14500 RPM (optional)

Workhead Speed Range
27 to 206 RPM

Wheelhead Movement (Traverse)
180 mm

Tailstock Quill Travel
30 mm

Coolant System
Integrated

Motor Power
2.5 HP

Jones & Shipman 1305 Universal Cylindrical Grinder Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Jones & Shipman 1305 Universal Cylindrical Grinder

Make - Jones & Shipman (England)

Model - 1305 EIT

Center Height - 127 mm

Max. Job Diameter - 254 mm

Max. Job Length - 1016 mm

Grinding Wheel Size - Diameter 305 mm x 32 mm Width

Work-Head Speeds - 40 rpm to 320 rpm

Table Rotation - +16 degree to -16 degree

- Equipped with Internal Grinding Attachment.

- With 3-point Steady, 2-point Steady, Wheel Dresser, Wheel Flanges, Couplings etc.

- Grinding Wheel can be mounted on both sides of the Wheel-Head.

- Double-Swivel type Wheel-Head Slide for acute taper grinding.

- Complete with Coolant Tank & Pump.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/zm82w6Yuyyw

Exceptional Precision and Versatility

Crafted for superior accuracy, the Jones & Shipman 1305 delivers precise cylindrical grinding. It accommodates both external and internal processes with a swing of 285 mm and lengthy workholding capacity up to 685 mm. The integrated coolant system maintains consistent temperature and finish quality, while manual controls enable meticulous, hands-on operation for skilled technicians.

Robust Construction and Reliable Performance

Constructed with a cast iron body and hardened steel components, this grinder ensures outstanding durability and stability during operation. Its industrial-grade design supports high rigidity, reducing vibration and safeguarding the integrity of fine-tolerance grinding jobs. The belt drive and 2.5 HP motor supply dependable power for sustained use.

FAQ's of Jones & Shipman 1305 Universal Cylindrical Grinder:

Q: How is the Jones & Shipman 1305 Universal Cylindrical Grinder operated?

A: The Jones & Shipman 1305 is manually operated, allowing skilled technicians to control every aspect of the grinding process using manual controls. This ensures precise adjustments and customized finishes to suit specific workpieces.

Q: What materials are suitable for grinding on the Jones & Shipman 1305?

A: This grinder is designed for cast iron and hardened steel components but can handle a range of workpieces compatible with cylindrical grinding. Its sturdy construction and precision spindle speeds support versatile material processing.

Q: When should the internal grinding spindle option be used?

A: The optional internal grinding spindle, which operates at up to 14,500 RPM, is ideal for applications where internal diameters need precision finishing or when intricate bore grinding tasks are required alongside external grinding.

Q: Where is the Jones & Shipman 1305 typically utilized?

A: It is widely used in manufacturing plants, precision engineering workshops, tooling environments, and by exporters, importers, and suppliers across industries in the United Kingdom and globally for precision cylindrical grinding.

Q: What is the process for adjusting the table swivel range on this grinder?

A: To adjust the table swivel range, operators manually unlock the table and reposition it within the +/- 8-degree range. This adjustment enhances the grinder's versatility for taper or complex grinding applications.

Q: How does the integrated coolant system benefit grinding operations?

A: The integrated coolant system helps dissipate heat generated during grinding, maintaining workpiece integrity, improving surface finish, and extending the life of the grinding wheel, ensuring optimal results.

Q: What is the primary usage and capacity of the Jones & Shipman 1305?

A: The grinder is primarily used for precision external and internal cylindrical grinding, with a maximum grinding diameter of 285 mm, a length of 685 mm, and a swing of 285 mm between centres, suited for medium to large components.
