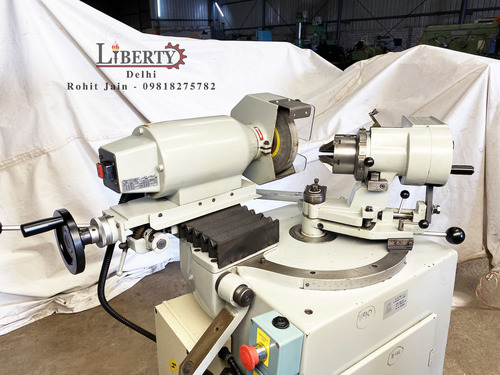

Jones Shipman 310T Universal Tool Cutter Grinder Machine

Name: Jones Shipman 310T Universal Tool Cutter Grinder Machine
Brand: Liberty Metal & Machines Private Limited
Price: 45000 INR
Availability: InStock

Price 45000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Jones Shipman 310T Universal Tool Cutter Grinder Machine Specification

Machine Type
Universal Tool & Cutter Grinder

Cutting Accuracy
High precision, typically up to 0.001 mm

Coating Type
N/A for machine; wheels may be vitrified or CBN

Cutting Capacity
Suitable for tools up to ~300 mm length

Brooches Type
Suitable for tapered and straight broaches

Drill Bits Types
Can grind twist drills, end mills, slot drills

Shape
Rectangular base with vertical column and swiveling workhead

Features
Swiveling workhead, adjustable table, micrometric adjustments

Cutting Force
Controlled by manual feed and wheel pressure

Cutting Speed
Infinitely variable via spindle (adjustable)

Coating
No special coating (grinding wheels as per requirement)

Tool Type
Universal Tool & Cutter

Operate Method
Manual operation, hand wheels and feeds

Hardness
Adaptable via grinding wheel (dependent on application)

Material
Heavy cast iron body, steel and iron components

Length
Approximately 900 mm overall length

Operation Type
Manual and semi-automatic

Cutter Type
End mills, slot drills, reamers, drills

Diameter
Grinding wheel arbor ~13 mm

Maximum Torque
Not explicitly stated; sufficient for tool grinding

Processing Type
Grinding

Swivel Range
Workhead swivels ±90 degrees

Wheel Head
Vertically adjustable and tiltable

Work Table Surface
Precision ground and T-slotted

Applications
Sharpening and reconditioning cutting tools

Table Movement
Longitudinal up to 300 mm, transverse up to 100 mm

Model Number
310T

Spindle Speed
Variable up to 3600 RPM

Grinding Wheel Size
150 mm diameter x 13 mm bore

Weight
Approx 350 kg

Coolant System
Integrated coolant tank and pump

Power Supply
3-phase, 415V, 50Hz

Jones Shipman 310T Universal Tool Cutter Grinder Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Jones Shipman 310T Universal Tool Cutter Grinder Machine

Make - Jones & Shipman (England)

Model - 310T

Table Clamping Size - 750 mm x 105 mm

Max. Swing Diameter on Work-Head (Adjustable) - 330 mm

Longitudinal Travel - 445 mm

Cross Travel - 187 mm

Vertical Travel - 200 mm

Max. Grinding Wheel Diameter - 150 mm

- Wheel-Head can be Rotated as well as Tilted.

- With Work-Head and many other accessories.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/BFSDbk7dF68

Versatile Grinding Performance

The Jones Shipman 310T handles a wide variety of cutting tools, including twist drills, end mills, reamers, and broaches. Its universal design and adjustable table allow for effective sharpening and reconditioning, improving tool efficiency and accuracy in various industrial settings.

Precision and Control

Accurate micrometric adjustments and variable spindle speed provide enhanced control for high-precision grinding, achieving tolerances up to 0.001 mm. The manual operation using hand wheels ensures flexibility, making the machine suitable for both simple and complex tool geometries.

Durable Construction and Integrated Features

Built with a heavy cast iron body and precision-ground surfaces, the 310T ensures stability during operation. The integrated coolant tank and pump maintain optimal grinding conditions, prolonging wheel life and improving the surface quality of finished tools.

FAQs of Jones Shipman 310T Universal Tool Cutter Grinder Machine:

Q: How do I operate the Jones Shipman 310T Universal Tool Cutter Grinder?

A: The 310T is operated manually using hand wheels and feed controls. Operators position the tool on the precision T-slotted work table, set the required angles using the swiveling workhead, and adjust the grinding wheel speed and position for each task.

Q: What types of cutting tools can be ground on the Jones Shipman 310T?

A: This grinder is suitable for sharpening and reconditioning twist drills, end mills, slot drills, reamers, and both tapered and straight broaches. It supports tools up to approximately 300 mm in length with high accuracy.

Q: When should I use the integrated coolant system during tool grinding?

A: The coolant system should be used during all grinding operations to reduce heat buildup, prevent thermal damage, and extend grinding wheel and tool life. It helps maintain optimal surface finish and accuracy.

Q: Where is the Jones Shipman 310T commonly used?

A: The machine is widely used in manufacturing facilities, engineering workshops, tool rooms, and by exporters, importers, and suppliers requiring precise reconditioning of cutting tools. Its robust design and high accuracy make it suitable for demanding industrial environments.

Q: What is the process for achieving precision grinding with the 310T?

A: Precision grinding is accomplished by setting the required angles using the 90 swiveling workhead, adjusting the spindle speed up to 3600 RPM, and using the hand-operated feeds. Micrometric adjustments ensure fine control over material removal, resulting in accurate tool profiles.

Q: What are the main benefits of using this tool cutter grinder?

A: Benefits include high-precision sharpening (up to 0.001 mm accuracy), versatility in tool types, durable construction for long-term reliability, and an integrated coolant system for improved tool and wheel longevity. It enables efficient and cost-effective reconditioning of cutting tools.

Q: Can I adapt the machine for different grinding wheel hardness or coatings?

A: Yes, the machine is designed to accommodate various grinding wheels, such as vitrified or CBN wheels. The wheel hardness and coating selection should be based on your specific tool material and grinding requirements for optimal results.
