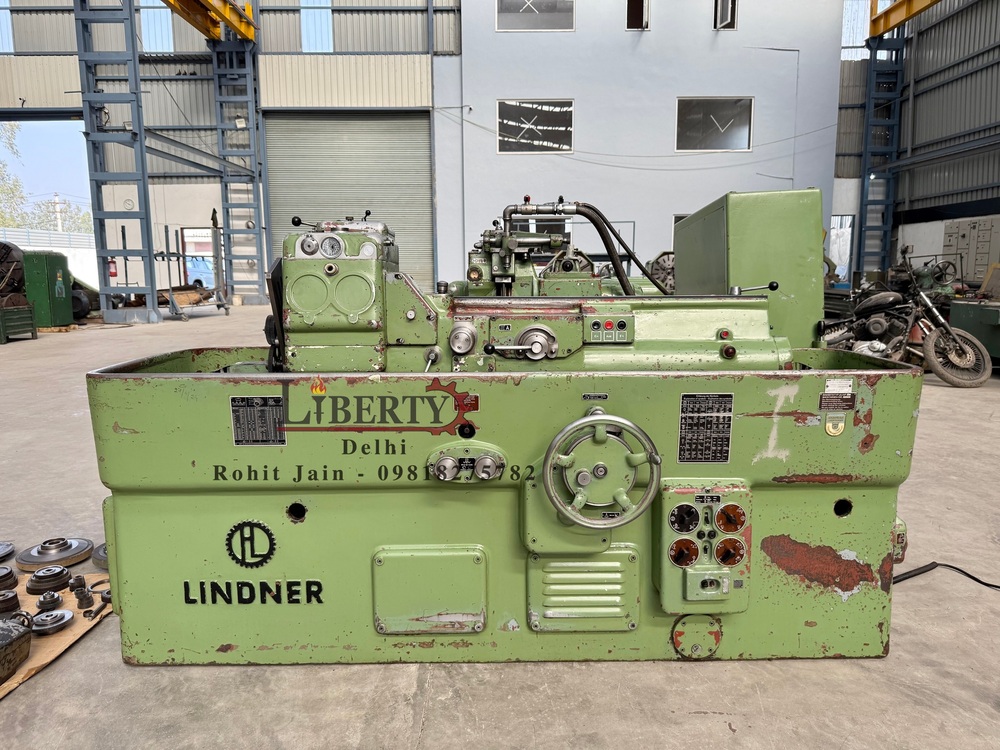

Lindner Germany Thread Grinding Machine

Name: Lindner Germany Thread Grinding Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Lindner Germany Thread Grinding Machine Specification

Rotation
Both clockwise and counterclockwise supported

Model
Lindner Germany

Product Type
Thread Grinding Machine

General Use
Thread grinding of cylindrical workpieces

Material
Cast Iron, Hardened Steel, Alloy

Type
Universal Thread Grinder

Capacity
M2 to M42 thread size

Weight (kg)
2300 kg

Computerized
No

Automatic
Semi-Automatic

CNC Or Not
Not CNC (Conventional/Manual)

Control System
Manual

Table Size
600 mm x 180 mm

Table Slide Way
Box type

Magnetic Chuck Size
160 mm

Grinding Wheel Size
300 mm x 40 mm x 127 mm

Grinding Wheel Speed
1450 RPM

Grinding Length
450 mm

Floor Space
2200 mm x 1600 mm

Fuel Tank Capacity
40 Liters (hydraulic)

Spindle Speed
100-1200 RPM variable

Power
3.5 kW

Voltage
380 V / 50 Hz

Dimension (L*W*H)
2200 mm x 1600 mm x 1700 mm

Feature
High precision, Hardened bedways, Universal thread forms

Color
Standard Lindner light grey

Grinding Accuracy
0.002 mm

Tailstock
Included, adjustable

Workpiece Length
Max 450 mm

Lead Accuracy
Within 0.003 mm over 300 mm

Thread Pitch Range
0.5 mm to 10 mm

Headstock Swivel
±45°

Wheelhead Movement
Manual, with fine adjustment

Coolant System
Integral with recirculating pump

Lubrication
Centralized automatic lubrication

Operator Panel
Analog dials and levers

Workpiece Diameter
Max 200 mm

Working Speed
Up to 5 m/min

Lindner Germany Thread Grinding Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Lindner Germany Thread Grinding Machine

Make - Lindner (Germany)

Max. Grinding Length - 200 mm

Max. Distance between Centres - 400 mm

Job Diameter Range - 2 mm to 120 mm

Minimum Pitch - 0.4 mm

Maximum Pitch - 6 mm

Grinding Wheel Diameter - 350 mm

Max. Inclination of Table - +8 degree to -8 degree

- Complete with Single-Point Wheel Dresser.

- Complete with spare Wheel Flanges, Change Gears, & other accessories.

- Complete with Coolant Tank and Pump.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/dOHz6UmxKoM

High Precision Thread Grinding

Lindner Germany's thread grinding machine is engineered for supreme accuracy, featuring a lead precision within 0.003 mm over 300 mm and comprehensive pitch coverage from M2 to M42 thread sizes. Its robust construction and hardened bedways support consistent high-quality threading in industrial settings.

Flexible and Universal Application

Suitable for a variety of materials such as cast iron, hardened steel, and alloys, this universal thread grinder supports multiple thread forms. It is ideal for a wide range of users, including exporters, suppliers, and manufacturers, thanks to its adaptability to various workpiece specifications.

Manual Operation with Efficient Process

The machine's analog dials, manual wheelhead with fine adjustment, and semi-automatic operation enable skilled operators to deliver precision work. Centralized automatic lubrication and an integral coolant system streamline maintenance and enhance performance for regular production.

FAQ's of Lindner Germany Thread Grinding Machine:

Q: How does the Lindner Germany Thread Grinding Machine achieve high accuracy during operation?

A: The Lindner Germany Thread Grinding Machine ensures high precision through its fine manual adjustments, lead accuracy within 0.003 mm over 300 mm, and grinding accuracy of 0.002 mm. The use of hardened bedways and an integral coolant system further maintain tight tolerances throughout the grinding process.

Q: What types of workpieces and thread sizes can be processed on this machine?

A: This thread grinding machine can handle cylindrical workpieces up to 200 mm in diameter and 450 mm in length. It is suitable for various materials, including cast iron, hardened steel, and alloys, and supports thread size capacities from M2 to M42 with thread pitches between 0.5 mm and 10 mm.

Q: When is this machine most beneficial for manufacturing processes?

A: The Lindner Germany Thread Grinding Machine is most effective when high-precision threading is required for medium to large batch production of cylindrical components. It is ideal for industrial applications demanding reliable accuracy and versatility in thread profiles.

Q: Where is the Lindner Germany Thread Grinding Machine typically used?

A: This model is used in manufacturing facilities, component workshops, and export/import processing units, particularly where precise thread forms are needed. Its universal capability makes it valuable for suppliers and traders involved in producing or repairing threaded components.

Q: What is the process for operating the thread grinding machine?

A: Operation involves clamping the workpiece with the tailstock and magnetic chuck, setting grinding parameters using analog dials, and manually adjusting the wheelhead for threading. Centralized automatic lubrication and a recirculating coolant system help keep the process smooth and the machine components well-maintained.

Q: How does the machine's manual control benefit users compared to CNC alternatives?

A: Manual controls provide experienced operators with direct oversight and flexibility in adjusting settings for unique or small-batch jobs. The analog dials and levers allow for real-time fine-tuning, making it suitable for highly customized thread grinding without the complexity of CNC programming.

Q: What maintenance features are included to ensure reliable operation?

A: The Lindner Germany Thread Grinding Machine includes centralized automatic lubrication and an integral coolant system with a recirculating pump. These systems help minimize wear, maintain grinding accuracy, and reduce maintenance intervals, ensuring prolonged machine life and consistent performance.
