Reishauer Switzerland ZA Gear Grinding Machine

Name: Reishauer Switzerland ZA Gear Grinding Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Reishauer Switzerland ZA Gear Grinding Machine Specification

Capacity
Gear diameter up to 400 mm

Condition
Used

Power
7.5 kW

Feature
High accuracy, durable build, manual feed

Color
Grey

Weight
Approx. 4000 kg

Output
Precision ground gears

Dimension (L*W*H)
Approx. 2500 mm x 1800 mm x 2200 mm

Machine Type
ZA Gear Grinding Machine

Used For
Precision grinding of gears

Voltage
415 V

Grinding Wheel Diameter
275 mm

Max. Workpiece Diameter
400 mm

Automatic Lubrication
Provided

Min. Workpiece Diameter
20 mm

Grinding Wheel Width
100 mm

Noise Level
Within Industry Standards

Control Type
Conventional/manual

Max. Module
Module 8

Chuck Type
3-jaw chuck

Max. Workpiece Width
160 mm

Min. Module
Module 1

Max Output
High precision output for up to 15 gears per hour

Coolant System
Integrated

Reishauer Switzerland ZA Gear Grinding Machine Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

Reishauer Switzerland ZA Gear Grinding Machine About

Make - Reishauer (Switzerland)

Model - ZA

Max. Gear Diameter - 240 mm

Max. Module - 4 module

Min. Module - 0.5 module

Max. Grinding Length - 170 mm

Number of Teeth - 12 to 130

Max. Clamping Length - 450 mm

Max. Grinding Wheel Diameter - 350 mm

Maximum Helical Angle - 45 degrees (both sides)

Minimum Gear Diameter - 10 mm

- Equipped with Crusher type Wheel Dresser Unit.

- With 2 other Wheel Dressing Attachments, mandrels, fixtures etc.

- With spare Grinding Wheels & Flanges, many Crushers, Change Gears etc.

- Operating Manual & Electrical Drawings are available.

- Complete with Coolant Tank & Pump.

- Machine is in excellent working condition.

Video of the Machine -

https://youtu.be/b4O-6UpO2iM

High Precision Gear Grinding

The Reishauer ZA Gear Grinding Machine delivers exceptional accuracy for both small and large gears, supporting module sizes from 1 to 8. Its robust design and precision engineering allow manufacturers to achieve high-quality finishes and consistent gear profiles, essential for demanding applications in industries such as automotive, aerospace, and machinery.

Durable and User-Friendly Construction

Constructed with longevity in mind, the ZA features a sturdy frame weighing approximately 4000 kg and convenient manual controls. The automatic lubrication and integrated coolant system ensure smooth operation, while the 3-jaw chuck simplifies workpiece setup and removal, enhancing overall user efficiency during grinding.

Efficient Gear Production Output

With a maximum throughput of up to 15 precision-ground gears per hour, this machine is optimized for both speed and quality in production. Its capability to process workpieces measuring up to 400 mm in diameter and 160 mm in width appeals to manufacturers requiring swift turnaround times without compromising accuracy.

FAQ's of Reishauer Switzerland ZA Gear Grinding Machine:

Q: How does the Reishauer ZA Gear Grinding Machine achieve high precision in gear grinding?

A: The machine employs a conventional/manual control system paired with a robust spindle and integrated coolant system, ensuring stable operating conditions. Precision movement and accurate manual feed allow it to consistently deliver finely ground gears within tight tolerances.

Q: What types of gears can be processed with this machine?

A: It is designed to grind gears ranging from module 1 to module 8 and diameters between 20 mm and 400 mm. This versatility makes it suitable for various gear types in sectors like automotive, machinery, and aerospace.

Q: When is manual control preferred over CNC for gear grinding operations?

A: Manual control is ideal for specialist applications requiring flexibility, hands-on adjustments, and individualized setup, particularly for low-volume runs, unique gear profiles, or environments where foundational skills are valued over automation.

Q: Where should the ZA Gear Grinding Machine be installed for optimal use?

A: This machine should be placed in a dedicated precision machining workshop or production line. Its dimensions-approximately 2500 mm by 1800 mm by 2200 mm-and a weight of about 4000 kg require solid flooring and sufficient space for safe operation and maintenance.

Q: What is the process for grinding gears on the ZA machine?

A: Operators manually set up the workpiece using the 3-jaw chuck, select a grinding wheel (diameter up to 275 mm), and utilize the integrated lubrication and coolant systems for smooth machining. The feed is adjusted manually to achieve the desired gear profile and surface finish.

Q: What are the major benefits of using the Reishauer ZA Gear Grinding Machine?

A: Key advantages include remarkable precision, dependable durability, and high output efficiency-up to 15 gears per hour. The machine's manual operation and reliable design also allow for adaptability in product runs and ease of maintenance.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

More Products in Gear Grinding Machine Category

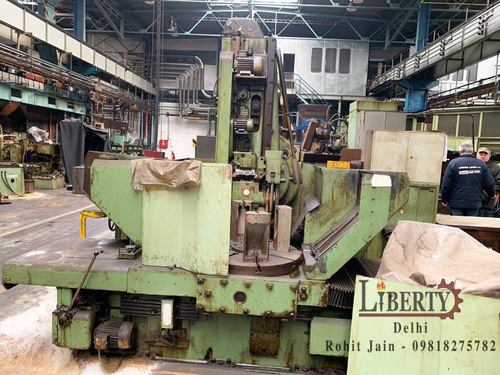

WMW Niles ZSTZ 800 x 14 Gear Grinder
