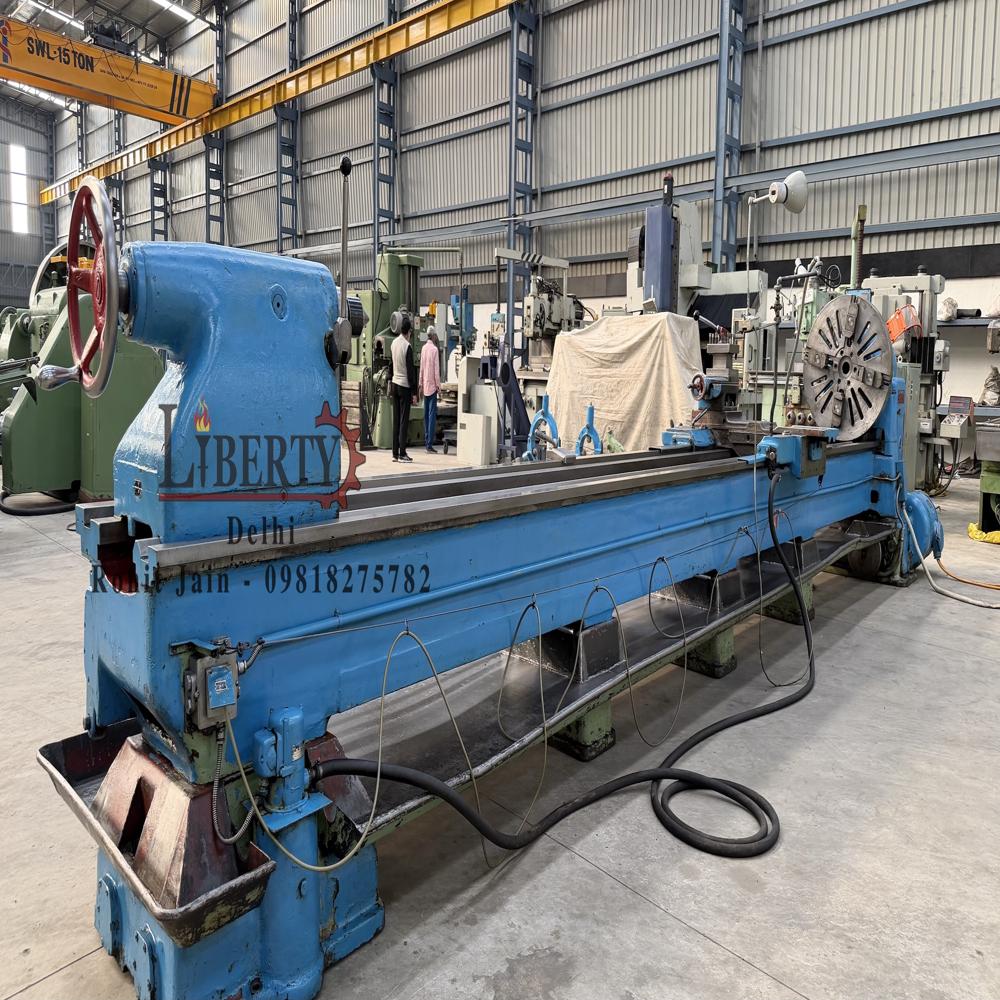

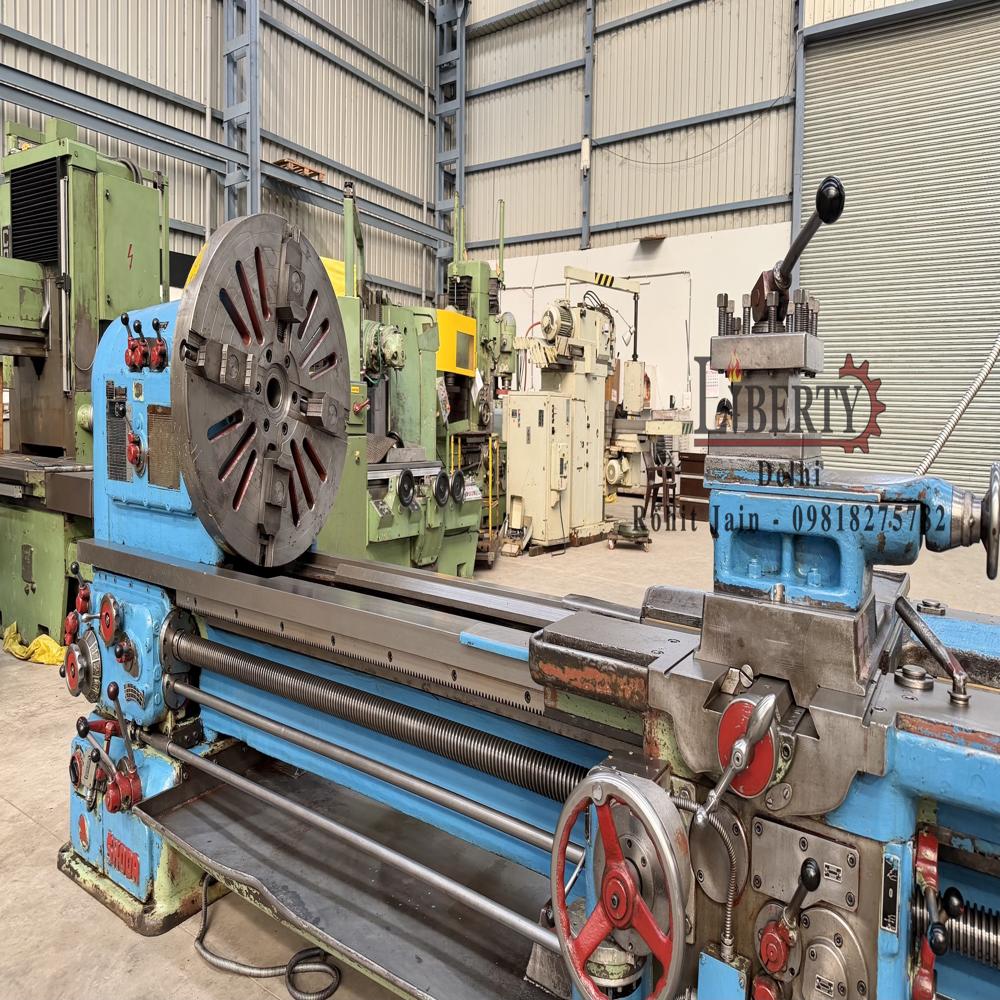

Skoda Czech SUR-400 x 6000 mm Heavy Duty Lathe Machine

Name: Skoda Czech SUR-400 x 6000 mm Heavy Duty Lathe Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Skoda Czech SUR-400 x 6000 mm Heavy Duty Lathe Machine Specification

Product Type
Heavy Duty Lathe Machine

Material
Heavy Duty Lathe Machine made by Skoda (Czech Republic) in excellent working condition. The model of the machine is SUR-400 and the Max. Job Length is 6000 mm. It is a Heavy Duty type Lathe having Bed Width of 650 mm and the Center Height of 420 mm. The technical details are as follows -

Cutting Thickness
Up to 30 mm (depending on material)

Cutting Speed
12.5 - 1600 mm/min

CNC Or Not
Conventional (Not CNC)

Automatic Grade
Manual

Control System
Manual

Max. Swing Diameter
800 mm

Voltage
415 V / 3 Phase / 50 Hz

Weight (kg)
9000 kg (approx.)

Dimension (L*W*H)
7800 x 1600 x 1800 mm

Capacity
400 mm (swing over bed), 6000 mm (admit between centers)

Feature
High rigidity, precise construction, suitable for heavy-duty operations

Color
Standard Machine Grey

Swing Over Cross Slide
500 mm

Distance Between Centers
6000 mm

Tailstock Quill Travel
250 mm

Lead Screw Diameter/Pitch
50 mm / 6 mm

Number of Spindle Speeds
18

Carriage Travel
5800 mm

Range of Spindle Speeds
9 - 1120 RPM

Feed Range
0.08 - 46 mm/rev (longitudinal and cross)

Chuck Size
500 mm (4-jaw independent)

Power Required
15 kW

Spindle Bore
105 mm

Swing Over Bed
800 mm

Model
SUR-400 x 6000 mm

Tailstock Quill Diameter
100 mm

Bed Width
550 mm

About Skoda Czech SUR-400 x 6000 mm Heavy Duty Lathe Machine

Make - Skoda (Czech Republic)

Model - SUR-400

Center Height - 420 mm

Max. Length of Job - 6000 mm

Max. Job Diameter over Cross-Slide - 590 mm

Max. Job Diameter over Bed - 840 mm

Spindle Speeds - 6.4 rpm to 830 rpm

Bed Width - 650 mm

4-Jaw Chuck Diameter - 820 mm

3-Jaw Chuck Diameter - 400 mm

Swing Diameter near Chuck - 930 mm

- Complete with 2 x Steady, Follow Rest, Coolant Tank & Pump.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/Y10CbyNoU0E

Exceptional Load Capacity and Precision

Designed for demanding workloads, the SUR-400 x 6000 mm lathe manages workpieces up to 6 meters between centers, with a swing diameter of 800 mm. Its bed is 650 mm wide and the center height is 420 mm, ensuring stability for both roughing and finishing operations. Each specification favors accuracy and durability, making it ideal for heavy industry applications.

Versatile Manual Operation for Skilled Technicians

This lathe is a conventional, manually controlled machine, providing experienced operators with fine control and flexibility. Eighteen spindle speeds (9-1120 RPM) and a wide feed range (0.08-46 mm/rev) allow for optimized settings depending on the material and specific task, promoting both productivity and machining quality.

FAQ's of Skoda Czech SUR-400 x 6000 mm Heavy Duty Lathe Machine:

Q: How does the Skoda SUR-400 x 6000 mm lathe handle heavy-duty machining?

A: This model is built with high rigidity and substantial bed width, allowing it to machine large, heavy workpieces up to 6000 mm in length and 800 mm in diameter. The powerful 15 kW motor and robust construction ensure consistent performance even under the strain of heavy-duty operations.

Q: What materials can be processed using this lathe?

A: The SUR-400 is suited for machining a wide range of metals and alloys, including steel, cast iron, and non-ferrous materials. The cutting thickness capacity of up to 30 mm (depending on material) and precise spindle speeds support a variety of applications, from rough cutting to fine finishing.

Q: When should I consider using a manual lathe over a CNC lathe?

A: Manual lathes like the SUR-400 are preferred when production volumes are moderate, when flexibility for one-off or custom jobs is required, or when skilled operators seek direct control over the machining process. They are also advantageous for industrial environments where manual adjustments and tactile feedback are necessary.

Q: Where is the Skoda SUR-400 x 6000 mm lathe typically used?

A: This lathe is commonly found in manufacturing plants, heavy engineering workshops, maintenance shops, and fabrication units. Its heavy-duty capacity makes it well-suited for sectors such as shipbuilding, steel fabrication, and large machinery repair.

Q: What is the process for setting spindle speed and feed rate on this machine?

A: Both spindle speed and feed rate are selected manually on the control panel, providing 18 different speed settings (9-1120 RPM) and feed rates from 0.08 to 46 mm/rev. Operators choose the optimal settings based on the material being machined and the type of operation, ensuring precise and efficient results.

Q: How does the manual control system benefit the operator?

A: The manual system allows experienced operators to make immediate and nuanced adjustments during machining. This flexibility is especially useful for custom or precision components, as it gives greater oversight and adaptability compared to preset CNC operations.

Q: What are the primary advantages of investing in the Skoda SUR-400 lathe?

A: Key benefits include its robust build for handling large parts, its reliability for long-term heavy-duty use, and the versatility provided by manual operations. Its excellent working condition and quality manufacturing from Skoda (Czech Republic) contribute to a sound return on investment for industrial users.
