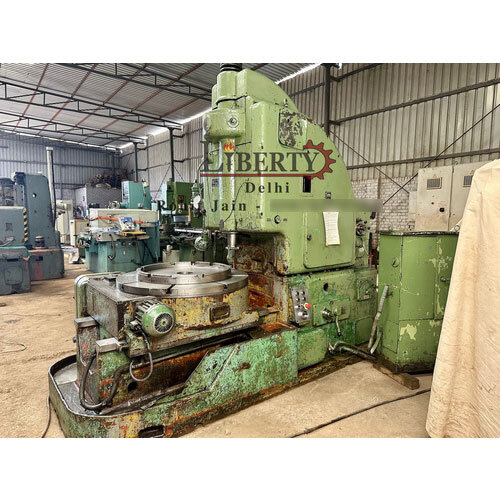

Stanko 5161 Heavy Duty Gear Shaper Machine
Stanko 5161 Heavy Duty Gear Shaper Machine

Stanko 5161 Heavy Duty Gear Shaper Machine

Price 100000 INR/ Piece

MOQ : 1 Piece

Stanko 5161 Heavy Duty Gear Shaper Machine Specification

  • Power
  • 15 kW
  • Weight
  • Approx. 7500 kg
  • Color
  • Industrial Green
  • Used For
  • Gear shaping and cutting for large industrial gears
  • Output
  • Single gear shaping operation
  • Feature
  • High precision; robust construction; large workpiece capability
  • Manufacturing Year
  • 1985
  • Machine Type
  • Heavy Duty Gear Shaper Machine
  • Dimension (L*W*H)
  • 3050 mm x 1800 mm x 2200 mm
  • Capacity
  • Maximum gear diameter up to 1250 mm
  • Condition
  • Used
  • Voltage
  • 380 V
  • Chuck Size
  • 1250 mm diameter
  • Lubrication System
  • Centralized automatic lubrication
  • Precision
  • ±0.01 mm
  • Main Drive Motor
  • AC motor, heavy duty
  • Transport Requirements
  • Forklift or crane recommended for relocation
  • Safety Features
  • Emergency stop, interlocking
  • Net Weight
  • Approximately 7500 kg
  • Maximum Module
  • 16 mm
  • Number of Strokes per Minute
  • 10-100 adjustable
  • Maximum Gear Width
  • 250 mm
  • Table Diameter
  • 1250 mm
  • Maximum Ram Stroke Length
  • 250 mm
  • Control
  • Manual and semi-automatic
  • Tool Slide Travel
  • 250 mm
  • Machine Bed
  • Heavy cast iron for vibration absorption
  • Spindle Bore Diameter
  • 160 mm


Stanko 5161 Heavy Duty Gear Shaper Machine Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Main Domestic Market
  • All India


About Stanko 5161 Heavy Duty Gear Shaper Machine

Make - Stanko (Russia)

Model - 5161

Max. Module - 12 module

Max. Diameter of Gear - 1250 mm

Max. Length of Stroke - 200 mm

Table Diameter - 1000 mm

Distance from Cutter-axis to the Table-axis - 200 mm to 650 mm

Height from Table-Top to Machine Body - 325 mm

- Automatic Feed Movements on the Travel of Table (for depth of Cut).

- Motorised Rapid Travels on Table Rotation.

- Complete with Change Gears, and many other accessories.

- Machine is in excellent working condition.


Video of The Machine -

https://youtu.be/aGPHiAFEfOA



High-Precision Industrial Gear Shaping

Engineered for demanding environments, the Stanko 5161 delivers outstanding accuracy for large gear shaping tasks. Its robust construction, heavy cast iron bed, and centralized lubrication system guarantee vibration-free operations and consistent results within a 0.01 mm precision margin-making it a reliable choice for large-scale manufacturing and industrial gear production.


Versatile Performance and Capacity

With a maximum gear diameter capacity of 1250 mm and compatibility with modules up to 16 mm, this machine accommodates a wide range of gear shaping projects. Adjustable stroke speeds between 10 and 100 per minute and a 250 mm gear width ensure the flexibility necessary for custom manufacturing applications, both in manual and semi-automatic modes.


Ease of Use and Safety Assured

Operators benefit from user-friendly manual and semi-automatic controls, as well as comprehensive safety features including emergency stops and interlocking systems. Transport is straightforward with forklift or crane assistance, and the centralized lubrication system reduces maintenance downtime, making it suitable for high-volume industrial contexts.

FAQ's of Stanko 5161 Heavy Duty Gear Shaper Machine:


Q: How does the Stanko 5161 Gear Shaper accommodate large gear sizes?

A: The Stanko 5161 is engineered with a large table diameter and a maximum gear diameter capacity of up to 1250 mm. Its tool slide travel and ram stroke lengths allow for effective shaping operations on sizable industrial gears.

Q: What safety features are included with the Stanko 5161 Gear Shaper Machine?

A: The machine is equipped with an emergency stop, interlocking mechanisms, and a centralized automatic lubrication system. These features help safeguard operators and maintain optimal performance during operation.

Q: When should a forklift or crane be used during relocation of the machine?

A: Due to its significant weight of approximately 7,500 kg and sizable dimensions (3050 mm x 1800 mm x 2200 mm), relocating the Stanko 5161 safely requires a forklift or crane to prevent damage and ensure workplace safety.

Q: Where can the Stanko 5161 be utilized most effectively?

A: This heavy duty gear shaper is ideal for large industrial settings, manufacturing plants, or workshops involved in the shaping and cutting of large gears for heavy machinery and other equipment.

Q: What is the process for adjusting stroke speeds on the Stanko 5161 Gear Shaper?

A: Operators can manually adjust the number of strokes per minute within a 10 to 100 range, providing flexibility for various gear shaping tasks and material requirements. The adjustment is facilitated through the control panel supporting manual and semi-automatic operation.

Q: How does the centralized automatic lubrication system benefit overall machine operation?

A: The lubrication system ensures that critical moving components receive consistent lubrication, minimizing wear and maintenance interruptions, extending the machine's service life, and supporting the achievement of high-precision shaping with minimal downtime.

Q: What distinguishes the Stanko 5161 in terms of precision and construction?

A: Built with a heavy cast iron bed for vibration absorption, the Stanko 5161 ensures stable and precise gear shaping. Its robust construction, combined with a precision rating of 0.01 mm, sets it apart as a reliable choice for demanding industrial gear production.
