Studer RHU400 Universal Cylindrical Grinder

Price 50000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Studer RHU400 Universal Cylindrical Grinder Specification

Product Type
Universal Cylindrical Grinder

General Use
Precision external and internal cylindrical grinding

Material
Heavy-duty cast iron base and components

Type
Manual

Capacity
Between centers: 400 mm

Weight (kg)
1100 kg

Computerized
No

Automatic
No

Control System
Hand-operated

Drive Type
Electric drive

Grinding Diameter
8 to 200 mm

Grinding Length
400 mm

Spindle Speed
30 - 2500 rpm (workhead variable)

Grinding Wheel Size
400 x 50 x 127 mm

Voltage
380/415 V, 3 phase

Dimension (L*W*H)
2200 x 1450 x 1500 mm

Feature
High precision, robust construction, tailstock with micro adjustment

Color
Grey

Table Swivel Range
+- 7°

Lubrication
Centralized manual lubrication

Tailstock Quill Travel
40 mm

Coolant System
Integrated coolant tank and pump

Internal Grinding Attachment
Yes (optional accessory)

Max Workpiece Weight (between centers)
70 kg

Centre Height
100 mm

Wheelhead Swivel
+- 90°

Chuck Type
3-jaw (available as option)

Studer RHU400 Universal Cylindrical Grinder Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Studer RHU400 Universal Cylindrical Grinder

Make - Fritz Studer (Switzerland)

Model - RHU 400

Center Height - 175 mm

Max. Job Diameter - 350 mm

Max. Length of Job - 400 mm

Grinding Wheel Size - Diameter 400 mm x 50 mm Width

Work-Head Speeds - 40 rpm to 700 rpm (Infinitely Variable)

Least Count of Wheel-Head Travel - 2 Microns (0.002 mm)

- Equipped with its Internal Grinding Attachment.

- Features like Delay, Auto-Cut, Auto-Compensation, Plunge Grinding.

- Features like Spark-Out, Automatic Wheel Retraction etc.

- Working in complete Auto-Cycle Mode and Manual Mode as well.

- Machines Electrical Drawing is available.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/F2tAjKtoOyU

Precision Grinding for Diverse Applications

The RHU400 is suitable for a wide range of cylindrical grinding jobs, handling diameters from 8 to 200 mm with lengths up to 400 mm. Its high-precision capabilities and quality construction make it ideal for exporters, manufacturers, and suppliers seeking robust solutions for accurate grinding, whether for production or tool rooms.

Adaptable and Easy-to-Operate Design

This manual cylindrical grinder utilizes hand-operated controls and a variable spindle speed (30-2500 rpm), giving operators direct oversight during setup and production. With the optional internal grinding attachment and micro-adjustable tailstock, users benefit from flexible configurations tailored to specific workpieces.

FAQs of Studer RHU400 Universal Cylindrical Grinder:

Q: How is the Studer RHU400 Universal Cylindrical Grinder operated?

A: The RHU400 is a fully manual grinder operated via hand controls for all grinding and setup processes. This allows precise adjustment during operation and flexibility for a variety of tasks.

Q: What is the process for switching between external and internal grinding on this machine?

A: Switching from external to internal grinding is straightforward with the optional internal grinding attachment. The attachment can be fitted as needed to accommodate internal surfaces without extensive reconfiguration.

Q: When should I use the integrated coolant system during grinding?

A: It is advisable to use the integrated coolant system during all grinding operations to minimize heat buildup, reduce tool wear, and maintain high surface quality on the workpiece.

Q: Where can the RHU400 Universal Cylindrical Grinder be effectively used?

A: This grinder is well-suited for precision engineering workshops, manufacturing facilities, and tool rooms that demand accurate grinding of cylindrical components, whether for small batch production or specialized applications.

Q: What are the advantages of the tailstock micro-adjustment feature?

A: The tailstocks micro-adjustment capability allows operators to finely tune the position of the workpiece, enhancing precision and ensuring consistent alignment during grinding, which results in superior accuracy.

Q: How does the centralized manual lubrication system benefit operators?

A: The centralized manual lubrication system simplifies maintenance, allowing operators to efficiently lubricate critical components, thereby extending machine life and improving reliability during prolonged use.

Q: Is the Studer RHU400 compatible with chuck-type workholding?

A: Yes, the RHU400 can be equipped with an optional 3-jaw chuck for workpieces that require alternative clamping methods beyond the standard between-centers arrangement.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

More Products in Cylindrical Grinder Category

Landis 1800 mm Heavy Duty Cylindrical Grinder

Price 100000 INR / Piece

Minimum Order Quantity : 1 Piece

Weight (kg) : Approx. 7000 kg

Product Type : Heavy Duty Cylindrical Grinder

Drive Type : Other, Electric Motor

Dimension (L*W*H) : Approx. 4000 mm x 1800 mm x 1600 mm

Get a Price/Quote

Jones and Shipman 1070 High Precision Cylindrical Grinder

Price 15000 INR / Piece

Minimum Order Quantity : 1 Piece

Weight (kg) : Approx. 1750 kg

Product Type : High Precision Cylindrical Grinder

Drive Type : Other, Electric motor drive

Dimension (L*W*H) : 2050 mm x 1350 mm x 1450 mm

Get a Price/Quote

Ajax England Universal Cylindrical Grinder Machine

Price 100000 INR / Piece

Minimum Order Quantity : 1 Piece

Weight (kg) : Approx. 2500

Product Type : Universal Cylindrical Grinder Machine

Drive Type : Other, Belt Driven

Dimension (L*W*H) : Approx. 2500 mm x 1700 mm x 1400 mm

Get a Price/Quote

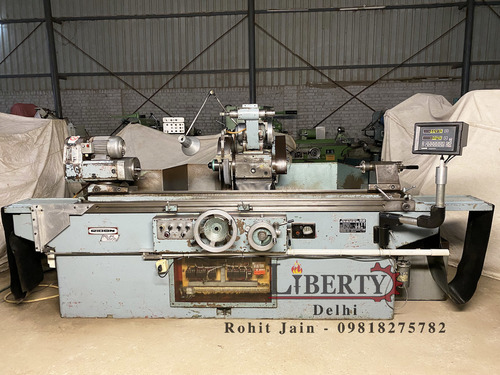

Ribon Italy RUR-500 Universal Cylindrical Grinder Machine
