Tacchella 412-UA High Precision Cylindrical Grinder
Tacchella 412-UA High Precision Cylindrical Grinder

Tacchella 412-UA High Precision Cylindrical Grinder

Price 10000.0 INR/ Piece

MOQ : 1 Piece

Tacchella 412-UA High Precision Cylindrical Grinder Specification

  • Product Type
  • High Precision Cylindrical Grinder
  • General Use
  • External and internal grinding of cylindrical components
  • Material
  • Cast Iron, Steel
  • Type
  • Universal Cylindrical Grinder
  • Capacity
  • 300 mm diameter x 1000 mm length
  • Weight (kg)
  • 2500 kg
  • Computerized
  • No
  • Automatic
  • Semi-Automatic
  • Control System
  • Manual/PLC Supported
  • Drive Type
  • Electric
  • Grinding Diameter
  • Max 300 mm
  • Grinding Length
  • Max 1000 mm
  • Spindle Speed
  • 20-1000 RPM (Variable)
  • Grinding Wheel Size
  • 400 mm x 50 mm x 127 mm
  • Voltage
  • 380 V / 3 Phase
  • Dimension (L*W*H)
  • 2400 mm x 1500 mm x 1600 mm
  • Feature
  • High precision, rigid construction, fine adjustment, coolant system
  • Color
  • Industrial Grey
  • Max Load Between Centers
  • 150 kg
  • Environmental Suitability
  • Shop floor, precision toolroom
  • Machine Bed
  • Vibration dampened, high rigidity
  • Workhead Taper
  • Morse taper No. 4
  • Table Traverse
  • 1000 mm
  • Power Consumption
  • 6 kW
  • Wheelhead Motor Power
  • 5 HP
  • Tailstock
  • Adjustable, with fine-control wheel
  • Coolant System
  • Integrated with filtration
  • Accessories Included
  • Grinding wheel, wheel flange, balancing stand, chuck, dresser
  • Surface Finish Tolerance
  • Up to 0.001 mm
  • Lubrication System
  • Automatic centralized lubrication
  • Safety Features
  • Emergency stop, overload protection


Tacchella 412-UA High Precision Cylindrical Grinder Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Main Domestic Market
  • All India


About Tacchella 412-UA High Precision Cylindrical Grinder

Make - Tacchella (Italy)

Model - 412 UA

Center Height - 130 mm

Max. Job Diameter - 255 mm

Max. Length of Job - 400 mm

Max Wheel Size - Diameter 350 mm x 50 mm Width

Work-Head Speeds - 20 rpm to 335 rpm

Least Count - 0.5 Micron (0.0005 mm)

Table Swivel Angle - 0 degree to 10 degree

- Equipped with Automatic Hydraulic Wheel Dresser.

- Features like Auto-Cut, Auto-Compensation, Plunge Grinding etc.

- Features like Auto-Wheel Retraction, Delay etc.

- With accessories like Coolant Filtration Unit, Coolant Tank & Pump.

- Manual Wheel Dresser, spare Flange & Wheel, Centers etc.

- High Precision Machine suitable for High Production work.

- Machine is in excellent working condition.


Video of The Machine -

https://youtu.be/OXwlGZJ1LqA



Engineered for Unmatched Precision

With a high rigidity, vibration-dampened bed and fine adjustment mechanisms, the Tacchella 412-UA delivers superior stability and accuracy. The surface finish tolerance of up to 0.001 mm makes it ideal for demanding industries requiring exacting specifications. Its robust construction supports long-term dependability in both toolroom and shop floor environments.


Comprehensive Semi-Automatic Grinding Solution

This universal cylindrical grinder delivers both internal and external machining capability. Semi-automatic operation, manual/PLC-supported control, and an automatic centralized lubrication system streamline the grinding process. The integrated coolant system with filtration ensures minimal thermal distortion and extended tool life, resulting in consistently superior outcomes.

FAQ's of Tacchella 412-UA High Precision Cylindrical Grinder:


Q: How does the Tacchella 412-UA ensure high-precision grinding operations?

A: The Tacchella 412-UA features a vibration-dampened, high-rigidity machine bed and fine adjustment controls, allowing for precise grinding tolerances down to 0.001 mm. Its robust construction minimizes deflection and enhances stability, ensuring consistently accurate machining of cylindrical components.

Q: What is the process for setting up and using the grinder for different component sizes?

A: To set up the Tacchella 412-UA, adjust the table traverse (up to 1000 mm) and select the appropriate spindle speed (20-1000 RPM). Use the adjustable tailstock with fine-control for optimal workpiece positioning. The universal design and included accessories, such as grinding wheels and chucks, support various cylindrical part sizes up to 300 mm diameter and 1000 mm length.

Q: When should the coolant and lubrication systems be maintained?

A: The integrated coolant system with filtration and automatic centralized lubrication require periodic checks. Inspect the coolant level and filtration system regularly to maintain cooling efficiency. The lubrication system is automated, but it's advisable to monitor fluid levels and system function during routine maintenance schedules to ensure long-term machine reliability.

Q: Where is the Tacchella 412-UA best utilized for optimal performance?

A: This cylindrical grinder is suited for both precision toolrooms and heavy-duty shop-floor settings. Its versatility and high-precision capabilities make it ideal for manufacturing environments requiring precise component finishing in industries such as automotive, aerospace, and tooling.

Q: What safety features are included in the Tacchella 412-UA grinder?

A: The machine is equipped with an emergency stop button and overload protection to ensure operator safety. These features rapidly halt operations in case of emergencies or excessive load, minimizing risk during high-precision grinding activities.

Q: How does the grinder benefit exporters, importers, manufacturers, and traders?

A: With its universal capabilities, consistent high-precision results, and durable construction, the Tacchella 412-UA adds value to operations by increasing productivity and reducing downtime. Comprehensive included accessories and adaptable control systems make it a preferred choice for organizations involved in component supply and manufacturing.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Cylindrical Grinder Category

TOS BUA 20 Universal Cylindrical Grinder

TOS BUA 20 Universal Cylindrical Grinder

Price 19000 INR / Piece

Minimum Order Quantity : 1 Piece

Voltage : 380/400 V, 3 Phase

Drive Type : Other, Belt Drive

Control System : Other, Conventional Manual Controls

Material : Other, Cast iron, steel

MSZ Hungary 750 mm Length Universal Cylindrical Grinder

MSZ Hungary 750 mm Length Universal Cylindrical Grinder

Price 100000 INR / Piece

Minimum Order Quantity : 1 Piece

Voltage : 415 V / 3 Phase

Drive Type : Other, Belt Driven

Control System : Other, Manual / Hydraulic

Material : Other, Cast Iron (main bed & slideways)

Jones Shipman England Precision Universal Cylindrical Grinder Machine

Jones Shipman England Precision Universal Cylindrical Grinder Machine

Price 100000.0 INR / Piece

Minimum Order Quantity : 1 Piece

Voltage : 415 V, 3 Phase, 50 Hz

Drive Type : Other, Belt Driven

Control System : Manual

Material : Other, Cast Iron, Alloy Steel

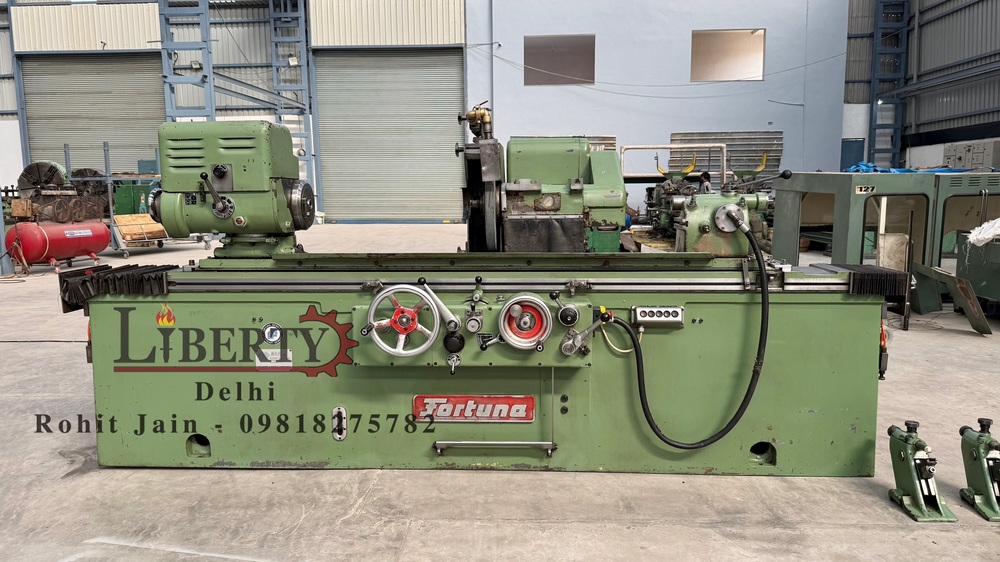

Fortuna 550 mm Universal Cylindrical Grinder
