TOS Czech BUT-63 / 2000 Heavy-Duty Cylindrical Grinding Machine

Name: TOS Czech BUT-63 / 2000 Heavy-Duty Cylindrical Grinding Machine
Brand: Liberty Metal & Machines Private Limited
Price: 300000.0 INR
Availability: InStock

Price 300000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TOS Czech BUT-63 / 2000 Heavy-Duty Cylindrical Grinding Machine Specification

Product Type

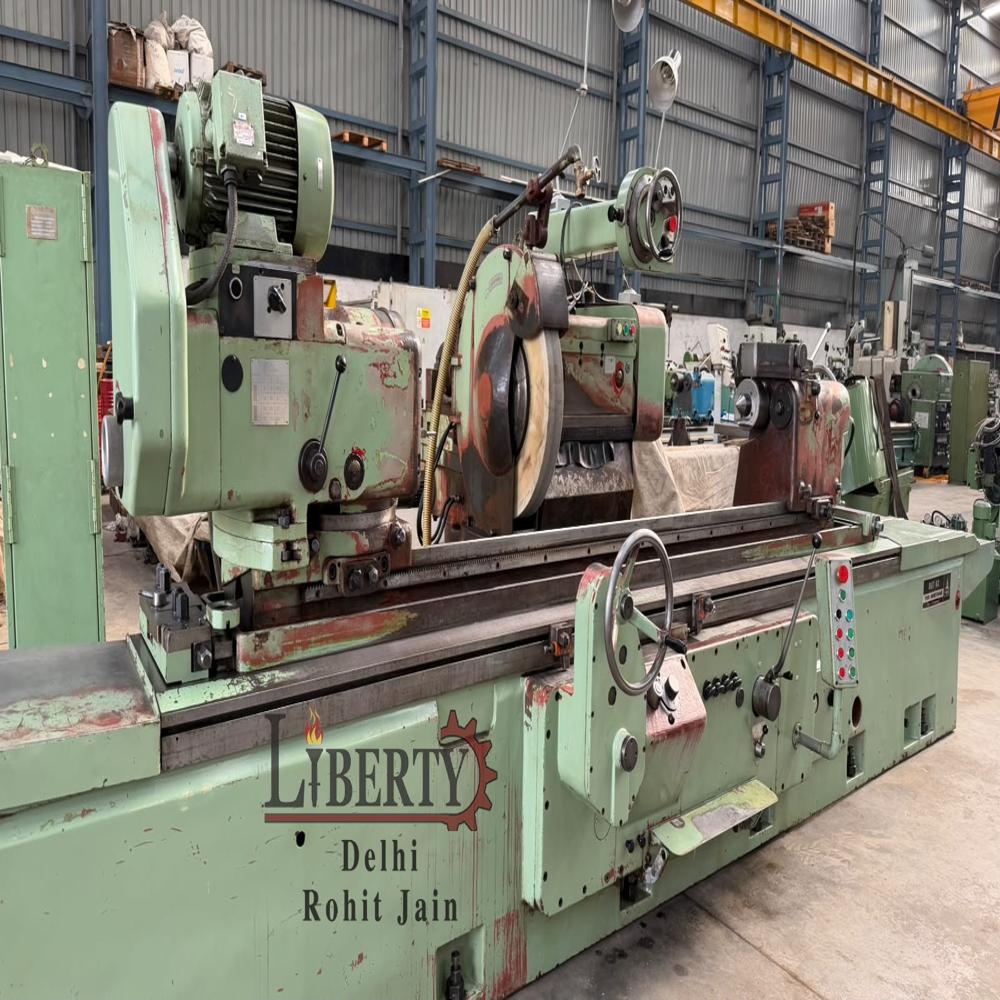

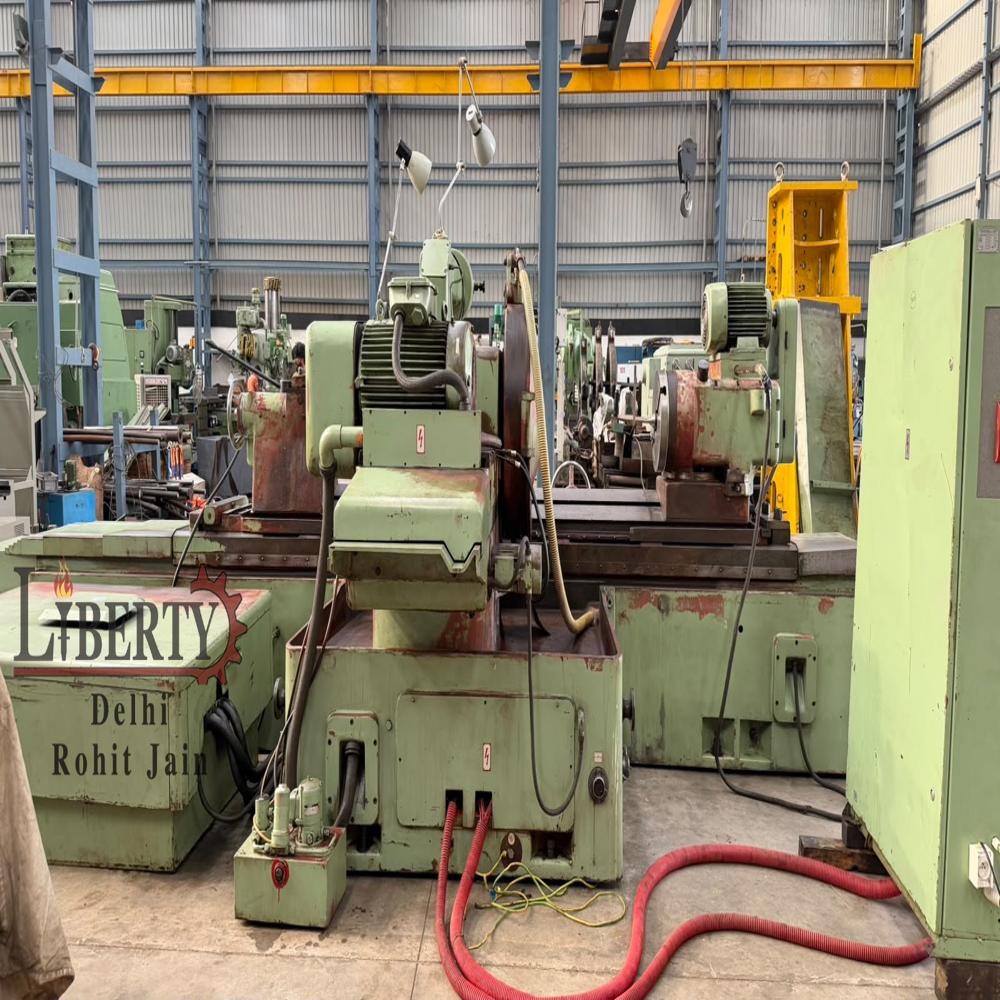

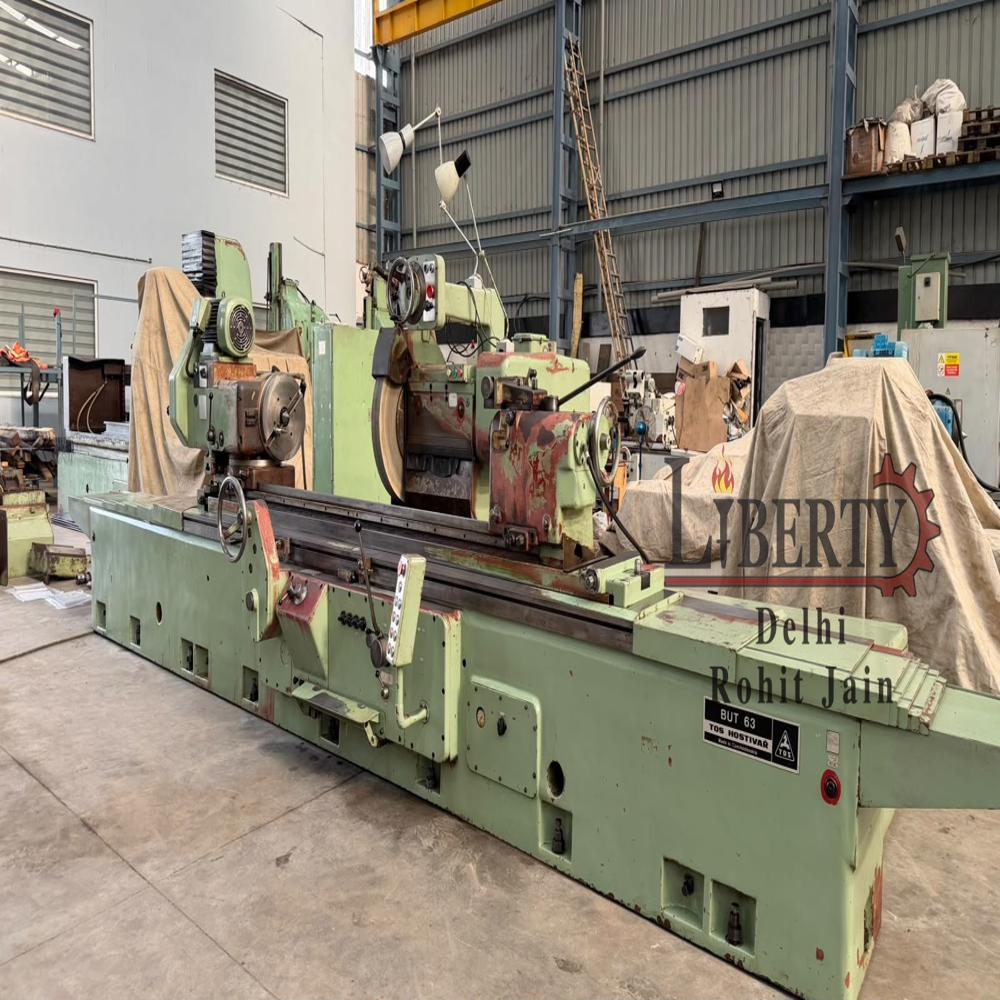

Heavy-Duty Cylindrical Grinding Machine manufactured by TOS (Czech Republic), Model BUT 63/2000, available in excellent working condition. It is a robust Heavy-Duty Cylindrical Grinding Machine with a Maximum Grinding Capacity of 630 mm Diameter x 2000 mm Job Length and a 750 mm Diameter Grinding Wheel. The machine features a Least Count of 2 Microns (0.002 mm), Automatic Depth Adjustment (Auto-Cut), Auto-Compensation, Plunge Grinding, Table Delay (Dwell), Table Auto-Slow, Rapid Table Travel, and a Hydraulic Tailstock, making it suitable for high-precision heavy-duty grinding applications. The machine is complete with Job Steadies, Wheel Dressers, Wheel Balancing Stand & Shaft, Magnetic Coolant Filtration Unit, Coolant Tank, Coolant Pump, Splash Guards, Operating Manuals, Electrical Drawings, Technical Documentation, and various other accessories. The technical details are as follows -

General Use
Precision external and internal cylindrical grinding of large workpieces

Material
Cast iron (machine body)

Type
Cylindrical Grinder

Capacity
Max. workpiece length 2000 mm

Weight (kg)
Approx. 7000 kg

Computerized
No

Automatic
Semi-Automatic

Control System
Conventional with manual controls

Drive Type
Electric motor driving spindle and carriage

Grinding Diameter
Max. 630 mm

Grinding Length
Max. 2000 mm

Spindle Speed
Up to 1120 RPM (work head)

Grinding Wheel Size
500 mm to 600 mm diameter

Voltage
380/415V, 3 Phase

Dimension (L*W*H)
Approx. 4800 mm x 2000 mm x 1800 mm

Feature
Heavy-duty construction, precision grinding, tailstock, large capacity

Color
Green

Lubrication
Centralized automatic lubrication system

Swing Over Bed
630 mm

Coolant System
Integrated with machine

Table Traverse
Up to 2200 mm

Max. Workpiece Weight
1500 kg (between centers)

Model
BUT-63 / 2000

Standard Accessories
Wheel dresser, coolant system, work steady rest, tailstock

Work Head Taper
ISO 50

Chuck Size
Accessory dependent

About TOS Czech BUT-63 / 2000 Heavy-Duty Cylindrical Grinding Machine

Make - TOS (Czech Republic)

Model - BUT 63 / 2000

Centre Height - 320 mm

Max. Job Diameter - 630 mm

Max. Job Length - 2000 mm

Grinding Wheel Size - Diameter 750 mm 100 mm Width

Workhead Speed Range - 9 to 156 RPM

Table Swivel Angle - +6 degrees to -6 degrees

Approx. Machine Weight - 14.50 Tons

- Features Automatic Depth Adjustment (Auto-Cut), Auto-Compensation, and Plunge Grinding.

- Features Table Delay (Dwell), Table Auto-Slow, Rapid Table Travel, and Hydraulic Tailstock.

- Motorised Wheelhead Travel for setting purposes.

- Wheelhead, Workhead, and Table can all be swivelled.

- Complete with 2 x Steady Rests, Straight Wheel Dresser, and Angular Wheel Dresser.

- Complete with Wheel Balancing Stand, Balancing Shaft, Centres, and other accessories.

- Complete with Magnetic Coolant Filtration Unit, Coolant Tank, and Coolant Pump.

- Features Micro-Feed Wheelhead Movement (2 Microns per Stroke).

- Operating Manual, Electrical Drawings, and Technical Documentation are available.

- Machine is in excellent working condition.

Video of the Machine -

https://youtu.be/JX1om0Gnebk

Advanced Heavy-Duty Performance

Built for demanding industrial environments, the TOS Czech BUT-63 / 2000 combines a sturdy cast iron body with precision grinding capabilities for large and heavy workpieces. Its semi-automatic operation and electric motor-driven spindle ensure reliability and consistent results, making it an excellent choice for high-capacity workshops requiring heavy-duty external and internal cylindrical grinding.

Comprehensive Standard Accessories

The machine comes equipped with essential standard accessories such as a wheel dresser, an integrated coolant system, a work steady rest, and a robust tailstock. These additions not only enhance operational efficiency but also support the precision and safety necessary for handling workpieces up to 1500 kg between centers.

User-Friendly Manual Controls

With a conventional control system and manual adjustments, the BUT-63 / 2000 allows skilled operators to achieve meticulous grinding outcomes. The centralized automatic lubrication system and accessible design streamline maintenance, reducing downtime and ensuring long-term performance in any production setting.

FAQ's of TOS Czech BUT-63 / 2000 Heavy-Duty Cylindrical Grinding Machine:

Q: How does the TOS Czech BUT-63 / 2000 ensure precision during heavy-duty grinding?

A: The machine is designed with a robust cast-iron structure to dampen vibrations, features a tailstock for stability, and includes an integrated coolant system. These elements work together to maintain precision and consistent surface finishes during the grinding of large, heavy workpieces.

Q: What types of workpieces can this cylindrical grinding machine accommodate?

A: This grinder is capable of handling large cylindrical workpieces up to 2000 mm in length, 630 mm in diameter, and weighing up to 1500 kg between centers. Typical uses include precision external and internal grinding of shafts, rollers, and heavy industrial components.

Q: When should the coolant and lubrication systems be checked or maintained?

A: Regular maintenance of the integrated coolant system and centralized automatic lubrication should be performed according to the manufacturer's recommendations, typically before each shift. This ensures optimal machine performance and longevity.

Q: Where is the best environment to operate this grinder?

A: Ideal operating environments include well-ventilated, spacious industrial workshops or manufacturing floors with adequate electrical supply (380/415V, 3 Phase) to accommodate the machine's approximate dimensions and weight.

Q: What is the process for changing workpieces and setting up the machine?

A: Operators mount the workpiece between centers or on the appropriately sized chuck (accessory dependent), adjust the tailstock, set grinding parameters via manual controls, and select grinding wheel sizes between 500 mm and 600 mm for the job. The machine's semi-automatic features streamline the setup process.

Q: How does using this machine benefit manufacturing operations?

A: The BUT-63 / 2000 enhances productivity by enabling precise grinding of large workpieces, reducing production time, and maintaining high consistency in large-batch or bespoke component manufacturing.
