TOS Czech SU-80A 3500 mm Heavy Duty Lathe Machine

Name: TOS Czech SU-80A 3500 mm Heavy Duty Lathe Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TOS Czech SU-80A 3500 mm Heavy Duty Lathe Machine Specification

Product Type
Heavy Duty Lathe Machine

Material
Heavy Duty Lathe Machine made by TOS (Czech Republic) in excellent working condition. The model of the machine is SU-80A and the Max. Job Length is 3500 mm. It is a Heavy Duty type Lathe having Bed Width of 700 mm and the Center Height of 405 mm. The technical details are as follows -

Cutting Thickness
Suitable for heavy, deep cuts on large workpieces

Cutting Speed
Variable, up to 1600 RPM

CNC Or Not
Not CNC, Conventional Lathe

Automatic Grade
Manual

Control System
Manual with mechanical and electrical controls

Max. Swing Diameter
800 mm

Voltage
380/400 V, 3 Phase, 50 Hz

Weight (kg)
Approx. 9000 kg

Dimension (L*W*H)
Approximately 5300 x 1500 x 1700 mm

Capacity
High (used for large, heavy workpieces)

Feature
Heavy duty construction, precision gears, robust tailstock, large steady rest, high torque

Color
Green

Thread Cutting
Metric & Inch Threads

Spindle Bore
105 mm

Spindle Speed Range
10 - 800 RPM

Tailstock Quill Diameter
105 mm

Tailstock Quill Travel
250 mm

Chuck Size
600 mm

Bed Width
600 mm

Cross Slide Travel
500 mm

Compound Rest Travel
250 mm

Main Motor Power
15 HP

TOS Czech SU-80A 3500 mm Heavy Duty Lathe Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
7 Days

About TOS Czech SU-80A 3500 mm Heavy Duty Lathe Machine

Make - TOS (Czech Republic)

Model - SU-80A

Center Height - 405 mm

Max. Length of Job - 3500 mm

Max. Job Diameter over Cross-Slide - 500 mm

Max. Job Diameter over Bed - 800 mm

Spindle Speeds - 6.7 rpm to 1000 rpm

Bed Width - 700 mm

4-Jaw Chuck Diameter - 850 mm

3-Jaw Chuck Diameter - 400 mm

Spindle Bore - 70 mm

Swing Diameter near Chuck - 880 mm

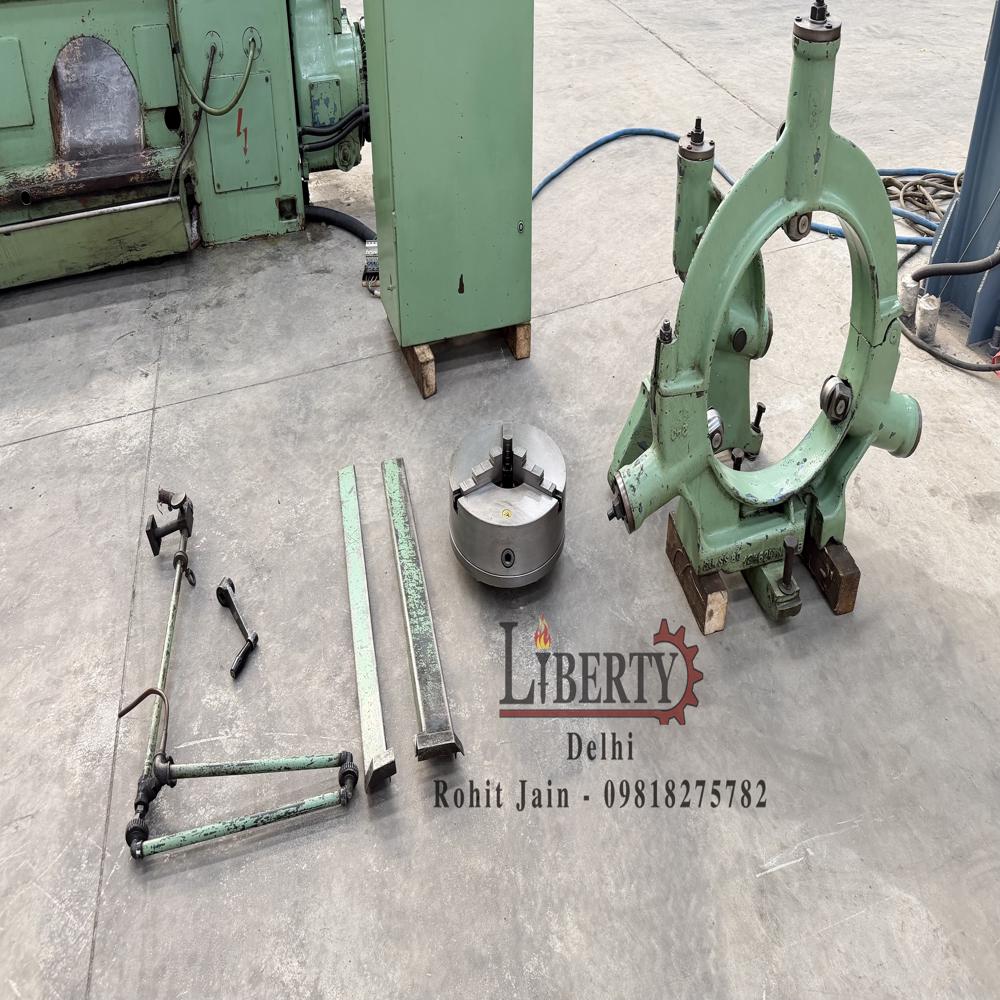

- Complete with Job Steady, Follow Rest, Coolant Tank etc.

- Operating Manual and Electrical Drawings are available.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/imDS3ZYucHg

Heavy Duty Construction for Superior Performance

The TOS Czech SU-80A is built with a durable, wide bed and high-quality precision gears, ensuring minimal vibrations and consistent accuracy during heavy-duty operations. Its large steady rest and robust tailstock facilitate the handling of oversized workpieces for tasks such as deep cutting and high-stress machining.

Versatile Machining Capabilities

Designed for a variety of tasks including turning, facing, threading, boring, and drilling, the SU-80A accommodates metric, inch, module, and DP threads. With an adjustable feed range and up to 18 spindle speeds, operators can tailor machine settings for both rough and finish work on diverse materials.

Reliable and User-Friendly Manual Controls

Featuring intuitive mechanical and electrical controls, the SU-80A offers precise handling without the complexity of CNC programming. This conventional manual control setup makes it ideal for workshops needing flexibility, reliability, and quick operation changeovers.

FAQ's of TOS Czech SU-80A 3500 mm Heavy Duty Lathe Machine:

Q: How does the TOS Czech SU-80A handle large and heavy workpieces?

A: The SU-80A is specifically designed for heavy-duty machining, featuring a 3500 mm center distance and a maximum swing diameter of 800 mm. A strong bed, robust tailstock, and large steady rest allow secure positioning and smooth operation when working with oversized components.

Q: What types of machining operations can be performed with this lathe?

A: You can use the SU-80A for turning, facing, threading (metric, inch, module, DP), boring, and drilling, making it highly versatile for a wide variety of industrial applications on large and heavy parts.

Q: When should I opt for a manual lathe like this instead of a CNC machine?

A: Choose this manual lathe when you need flexibility for custom or one-off workpieces, quick setup for varied jobs, and straightforward operation without the complexity or maintenance needs of CNC machines.

Q: Where is the ideal environment to operate the SU-80A lathe machine?

A: This lathe is best suited for industrial workshops, repair facilities, and manufacturing plants that require precision machining of large-scale components in metalworking or heavy engineering sectors.

Q: What benefits does the variable cutting speed provide?

A: Variable cutting speeds (up to 1600 RPM) enable operators to adjust the machine for different materials and machining requirements, optimizing cutting efficiency and tool lifespan based on the specific job.

Q: How is the SU-80A controlled and what is the process for operation?

A: Operation is entirely manual, utilizing straightforward mechanical and electrical controls. Operators adjust spindle speeds, feed rates, and tool positions directly, providing full control over each stage of the machining process.
