TOS Hostivar BHU 32A Universal Cylindrical Grinder

Name: TOS Hostivar BHU 32A Universal Cylindrical Grinder
Brand: Liberty Metal & Machines Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TOS Hostivar BHU 32A Universal Cylindrical Grinder Specification

Product Type
Universal Cylindrical Grinder

General Use
Precision grinding of cylindrical surfaces in metalworking industries

Material
Cast iron, steel components

Type
BHUA 32A

Capacity
320 mm grinding diameter

Weight (kg)
2600

Computerized
No

Automatic
Semi-automatic

Control System
Manual

Drive Type
Electric motor drive

Grinding Diameter
10 mm to 320 mm

Grinding Length
2000 mm

Spindle Speed
22 to 335 RPM

Grinding Wheel Size
400 mm diameter x 50 mm width x 127 mm bore

Voltage
400/415 V, 3 Phase, 50 Hz

Dimension (L*W*H)
4200 mm x 1850 mm x 1450 mm

Feature
Heavy duty construction; suitable for external, internal, and taper grinding

Color
Standard industrial gray / green

Coolant System
Integrated

Power Requirement
7 kW

Work Head Taper
Morse taper No. 5

Max Workpiece Weight
500 kg

Lubrication
Automatic lubrication

Distance Between Centres
2000 mm

Wheel Peripheral Speed
33 m/s

Chuck Type
Optional

Surface Finish Accuracy
Up to 0.002 mm

Tailstock
Manual clamping

Centre Height
160 mm

Table Travel
2200 mm

TOS Hostivar BHU 32A Universal Cylindrical Grinder Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About TOS Hostivar BHU 32A Universal Cylindrical Grinder

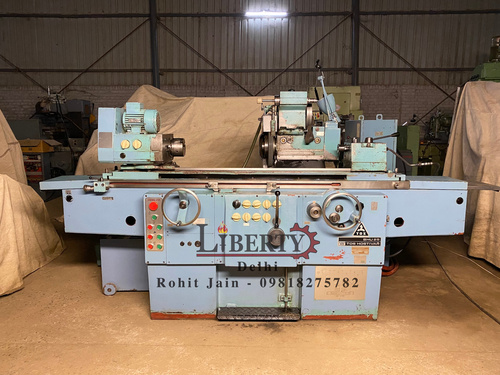

Make - TOS - Hostivar (Czech Republic)

Model - BHU 32A / 1000

Center Height - 165 mm

Max. Diameter of Job - 320 mm

Max. Length of Job - 1000 mm

Grinding Wheel Size - Diameter 500 mm x 100 mm Width

Least Count - 1 Micron (0.001 mm)

Work-Head Speed - 18 rpm to 560 rpm (Infinitely Variable)

Internal Grinding Spindle Diameter - 100 mm

- Equipped with Internal Grinding Attachment.

- Features like Delay, Auto-Slow, Plunge Grinding, Rapid Travel of Table etc.

- Features like Auto-Cut, Auto-Compensation, Spark-Out, Auto-Cycle etc.

- Equipped with Hydraulic Tail-Stock.

- With 2-point steady, Wheel Dressers, Wheel Flange, Wheel Balancing Stand etc.

- Joy-stick model ; One of the latest series of conventional machines made by TOS.

- Complete with Magnetic Coolant Filtration Unit, Tank and Pump.

- Operating Manual and Electrical Drawings are available.

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/lNGyJFkEcTY

Heavy-Duty Precision Engineering

Built with solid cast iron and steel components, the BHU 32A guarantees lasting stability for high-precision results. Its durable construction and 2600 kg weight reduce vibration, promising strict surface finish standards and extended operational life for metalworking shops.

Versatile Grinding Capabilities

The grinder's 320 mm diameter capacity, 2000 mm grinding length, and adjustable spindle speeds (22 to 335 RPM) allow handling of diverse workpieces. Operators can perform external, internal, and taper grinding efficiently, accommodating various production requirements within a single machine.

Advanced System Integration

The integrated coolant system, automatic lubrication, and manual control layout combine to offer ease of use, reduced maintenance, and improved consistency. Optional chuck types, manual tailstock clamping, and a standard industrial design ensure suitability for a wide range of operational setups.

FAQ's of TOS Hostivar BHU 32A Universal Cylindrical Grinder:

Q: How is the TOS Hostivar BHU 32A Universal Cylindrical Grinder operated?

A: The BHU 32A operates semi-automatically with manual controls for adjustments and setup. The operator can control feed, spindle speed, and grinding parameters using levers and dials for precision grinding tasks.

Q: What types of materials can the BHU 32A grind?

A: This grinder is primarily designed for processing cast iron and steel components, making it ideal for most industrial metalworking applications that require high-precision cylindrical grinding.

Q: When is the integrated coolant system used during the grinding process?

A: The coolant system operates during grinding to minimize heat generation, maintain dimensional stability, and enhance the surface finish of the workpiece, especially during prolonged or demanding grinding tasks.

Q: Where can the BHU 32A be installed and used most effectively?

A: The machine is best suited for installation in manufacturing plants, precision machine shops, and metalworking industry environments where high-accuracy cylindrical grinding is required.

Q: What is the process for setting up a workpiece for grinding?

A: To set up, the operator mounts the workpiece between centers or in an optional chuck, secures it using the manual tailstock clamping system, adjusts grinding and spindle speeds, and activates the lubrication and coolant systems as needed before commencing grinding.

Q: How does automatic lubrication benefit maintenance and operation?

A: Automatic lubrication ensures continuous oiling of critical components, reducing wear and tear, extending the machine's lifespan, and minimizing manual maintenance requirements.

Q: What are the main benefits of using the BHU 32A in metalworking industries?

A: Key benefits include high surface finish accuracy (up to 0.002 mm), versatility for multiple grinding operations, robust construction for heavy-duty workloads, and integrated features that simplify operation and maintenance.
