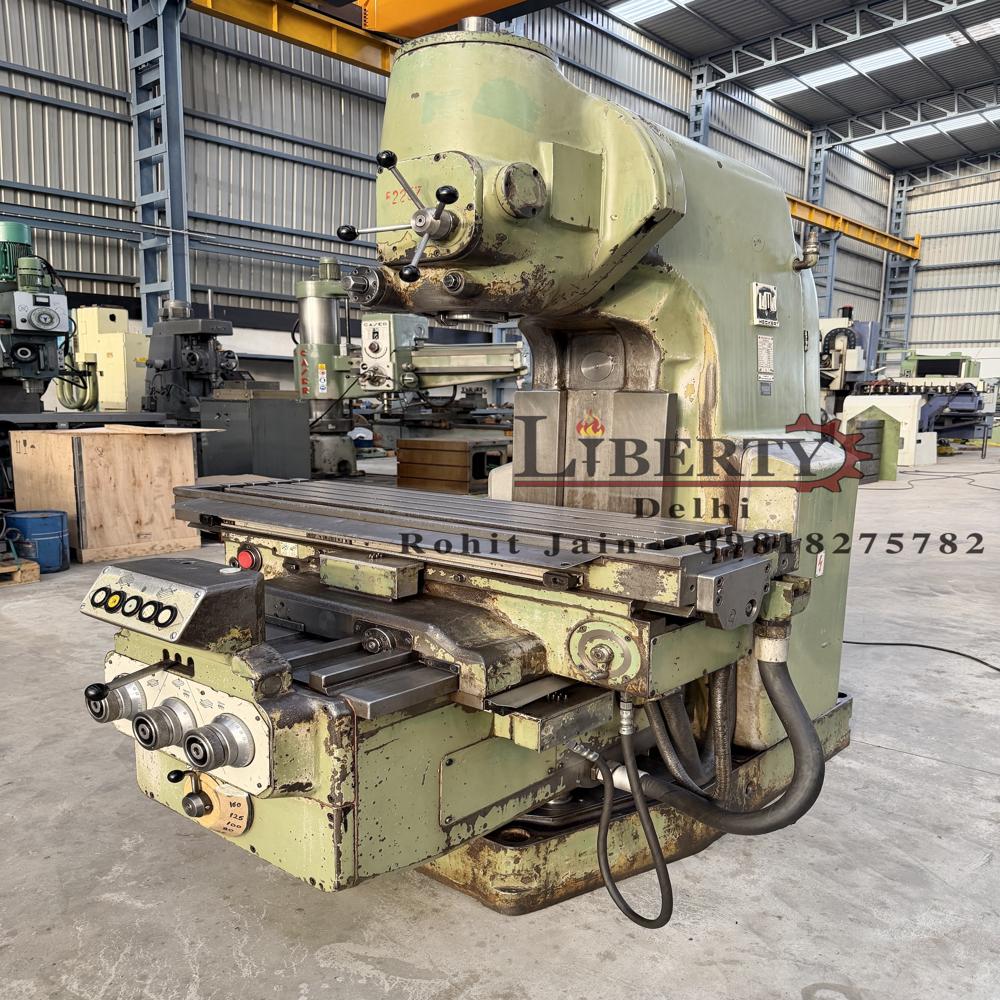

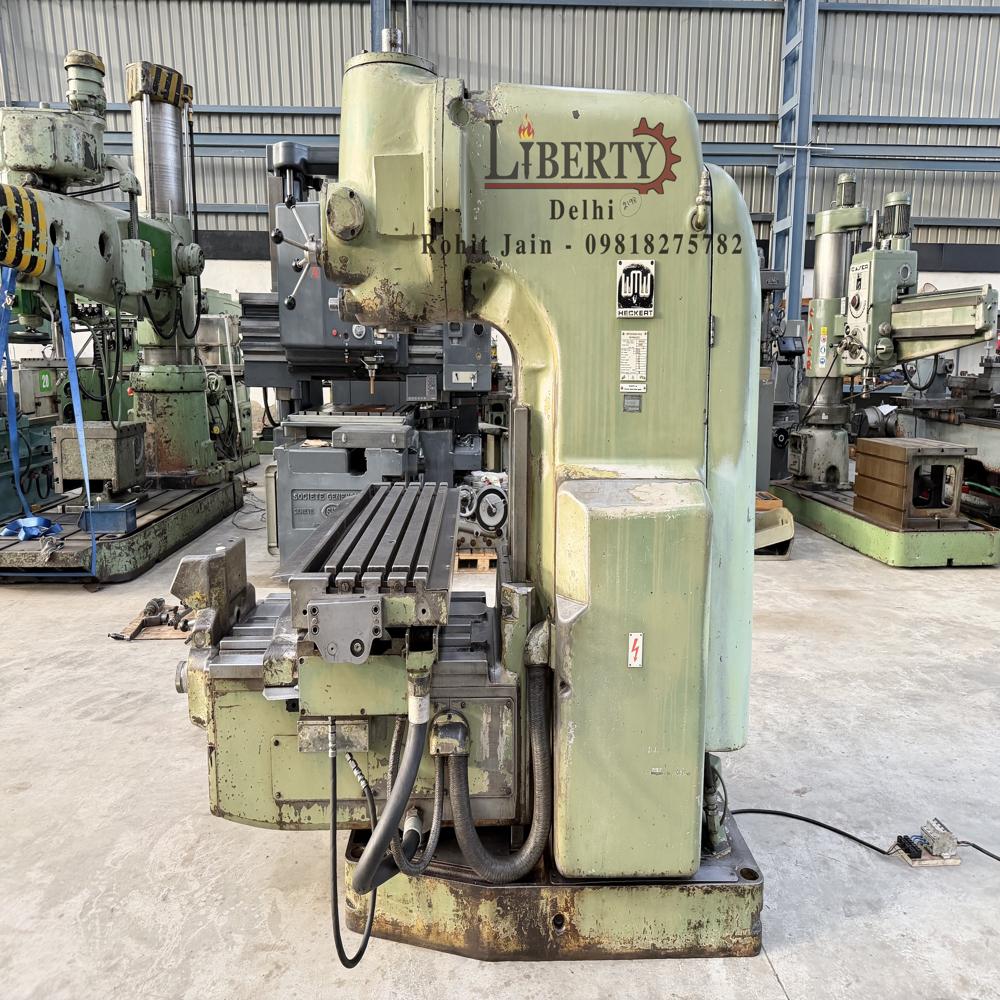

WMW Heckert Germany FSS-315 Pure Vertical Milling Machine

Name: WMW Heckert Germany FSS-315 Pure Vertical Milling Machine
Brand: Liberty Metal & Machines Private Limited
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

WMW Heckert Germany FSS-315 Pure Vertical Milling Machine Specification

Model
FSS-315

Rotation
Vertical Spindle

Product Type
Vertical Milling Machine

General Use
WMW Heckert (Germany) make Pure Vertical Milling Machine in excellent working condition. The model of the Machine is FSS-315-VI and the Table Size is 1250 mm x 330 mm. The technical details are as follows -

Material
High Grade Cast Iron & Steel

Type
Vertical, Heavy Duty

Capacity
Medium to Heavy Duty Milling

Weight (kg)
Approx. 2950 kg

Computerized
No

Automatic
Semi-Automatic (manual control with power feeds)

CNC Or Not
No, Conventional Manual Operation

Control System
Manual Gear & Levers

Table Size
1400 x 315 mm

Table Slide Way
Box Ways

Floor Space
2200 x 2100 mm (approx.)

Spindle Speed
40 to 2000 rpm (Variable; 18 steps)

Power
Approx. 3.7 kW (5 HP)

Voltage
415 V, 50 Hz, 3 Phase

Dimension (L*W*H)
Approx. 2200 x 2100 x 1950 mm

Feature
Gear Driven, Vertical Spindle, Hardened Slideways, Adjustable Table, Power Feed

Color
Light Green

Lubrication System
Centralized automatic

Vertical Traverse (Z-Axis)
400 mm

Longitudinal Traverse (X-Axis)
1100 mm

Condition
Used, good working condition

Table Feed
Automatic & Manual

Cross Traverse (Y-Axis)
400 mm

Spindle Taper
ISO 40

Surface Finish
High precision

T-Slots on Table
5

Max. Distance Spindle to Table
500 mm

Coolant Pump
Fitted

WMW Heckert Germany FSS-315 Pure Vertical Milling Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
7 Days

About WMW Heckert Germany FSS-315 Pure Vertical Milling Machine

Make - WMW Heckert (Germany)

Model - FSS-315-VI

Table Size - 1250 mm x 330 mm

XYZ Travels - 850 mm x 300 mm x 360 mm

Spindle Taper - ISO-50

Spindle Speeds - 28 rpm to 1400 rpm

Table Feed Rates - 16 mm/min to 800 mm/min

Manual Spindle Travel - 90 mm

Vertical Head Rotation - +45 degrees to -45 degrees

- Machine is in excellent working condition.

Video of The Machine -

https://youtu.be/prdSUb5joqc

Precision Engineering for Demanding Tasks

The WMW Heckert FSS-315 offers excellent stability and precision, owing to its hardened box slideways and robust cast iron construction. With variable spindle speeds (18 steps, 40-2000 rpm) and a heavy-duty 5 HP motor, this machine consistently handles medium to large workpieces with ease. Its large working travels and adjustable table suit diverse milling applications.

Key Features That Enhance Productivity

Equipped with power feed, rapid feed rates for all axes, and an integrated coolant system, the FSS-315 reduces manual labor while improving machining efficiency. Its centralized automatic lubrication prolongs component lifespan and maintains smooth operation, making it a practical solution for high-demand environments.

Versatility and Durability Across Industries

Designed for workshop and industrial use, this machine accommodates multiple machining needs, such as slotting, boring, and surface milling. The gear-driven vertical spindle, adjustable table, and high table load capacity (up to 300 kg) make it ideal for manufacturing, repair, and fabrication industries.

FAQ's of WMW Heckert Germany FSS-315 Pure Vertical Milling Machine:

Q: How does the WMW Heckert FSS-315 Pure Vertical Milling Machine operate?

A: The FSS-315 operates through conventional manual controls using gears and levers. It does not have CNC capabilities but does offer automatic power feeds and rapid feed rates on all axes for improved ease of operation.

Q: What materials and workpieces can be handled with this milling machine?

A: Thanks to its sturdy build, high-grade cast iron and steel construction, and a table load capacity of up to 300 kg, the FSS-315 is suitable for medium to heavy-duty milling applications involving various metals and robust workpieces.

Q: When is this milling machine most beneficial to use?

A: The FSS-315 excels in situations requiring precision vertical milling and long-term reliability. It is particularly beneficial for industrial workshops, tool rooms, and manufacturing units handling a variety of milling tasks on a daily basis.

Q: Where can the WMW Heckert FSS-315 be installed and utilized best?

A: This vertical milling machine is best installed in workshops or factory floors with sufficient space (about 2200 x 2100 mm required), ideal for environments needing dependable, heavy-duty milling equipment.

Q: What process features set this machine apart?

A: Distinctive features include gear-driven operation, hardened slideways for accuracy, integrated coolant and centralized lubrication systems, and rapid feed on all axes, ensuring efficient workflow and reduced downtime.

Q: How does the automatic lubrication system benefit usage?

A: The automatic centralized lubrication system continuously supplies oil to critical moving components, reducing maintenance intervals and helping ensure the machine operates smoothly and consistently over time.

Q: What are the primary benefits of using this milling machine model?

A: Primary benefits include high precision, robust construction, adaptability to various workpieces, and user-friendly controls, making it a reliable asset for production efficiency and workflow consistency in machining operations.
